Hypereutectic Cast -17cc Dish Top Pistons, 400, 3.750" Str,

Keith Black
Additional Images

Your Selected Product

Pricing: $566.95

Starting at $52/mo with . Check your purchasing power

Customize Your Item

- Choose Your Bore Size -
 * required
- Choose Ring Set Option -
 * required
×
Qty:
Choose Product Options

Need Assistance?

We are here to help. Click here to email us with questions about this product

Ask Butler>

(0) Reviews: Write first review

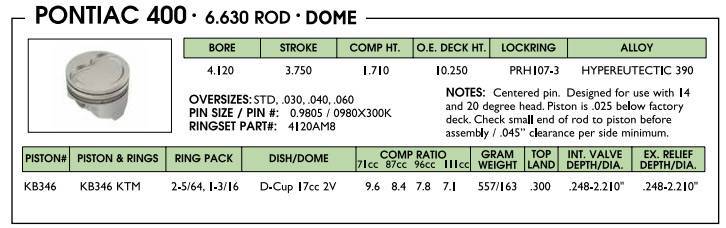

  • UEM-KB346
    • UEM-KB346
    Dish Top -17cc
    6.625" Rod Length
    5/64", 5-64", 3/16" Ring Size
    Press-fit or floating
    .980 Pin
    Set/8

    Description

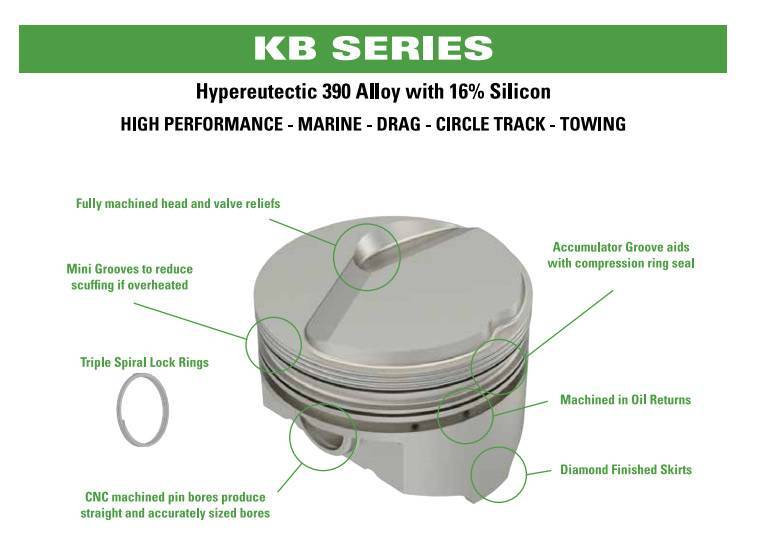

    These pistons are Hypereutectic 390 Alloy with 16% silicon. They feature a diamond-machined skirt design. Spiral lock rings. Press fit or bushed wrist pins.

    Designed for 14 and 20-degree heads.

    Pistons Only
    STD- 4.120" Bore- KB346-030
    .030 Over- 4.150" Bore- KB346-030
    .040 Over- 4.160" Bore- KB346-040
    .060 Over- 4.180" Bore- KB346-060

    Pistons and Ring Sets
    STD- 4.120" Bore- KB346KTM-030
    .030 Over- 4.150" Bore- KB346KTM-030
    .040 Over- 4.160" Bore- KB346KTM-040
    .060 Over- 4.180" Bore- KB346KTM-060

    These pistons come with pin locks so they can be used with BUSHED or PRESS-FIT rods.

    Image may not represent actual product.
