MSD 7AL2 Ignition System MSD-7222

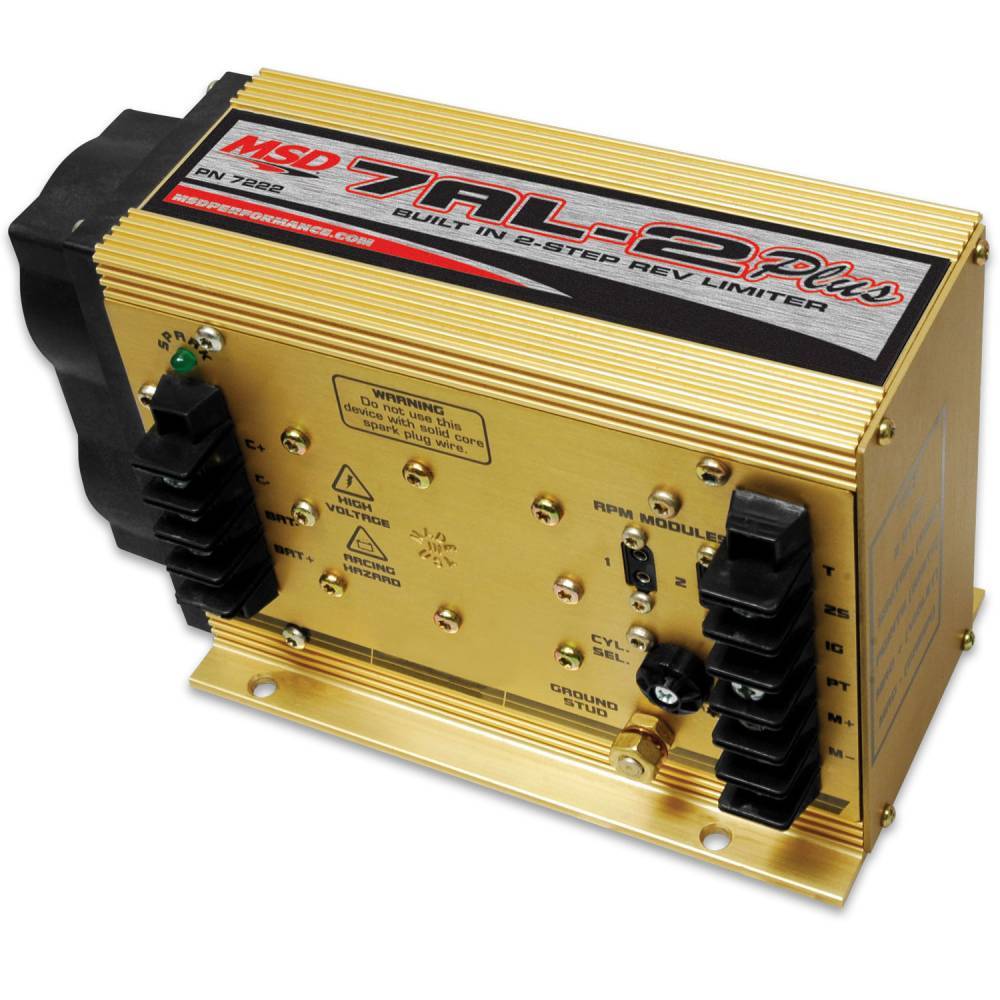

You’ll recognize the 7AL-2 Plus Ignition Control, as its predecessor is the most popular ignition control used in drag racing. The “Plus” model updates the original 7AL-2 with improved internal components plus our engineers added a 2-Step Rev Control and a useful diagnostic LED. Racers will be happy to see that the updated components up the voltage output and spark energy! Over 40% more spark energy in fact! Visually, you’ll notice the two terminal strips that allow for easier wiring in your race car. The LED over the power connections will come in handy for troubleshooting as it flashes only when the coil fires. That way you know that the coil, the trigger source and ignition are all functioning properly. The mounting pattern is the same as the 7AL-2 and is supplied with vibration mounts and a few rpm modules.
Features:
Built-in 2-Step rev control
Operates on 4, 6 or 8-cylinder engines
Diagnostic Troubleshooting LED
Terminal strips for convenient hookup

Brand MSD
Current Draw 6 Amps Per 6,000 RPM; 12 Amps at 12,000 RPM
Features Rev Limiter
Primary Voltage 570 Volts
RPM Range 14,000 RPM with 14.4 Volts
Secondary Voltage 47,000 Volts
Spark Energy 160 mJ/spark
Spark Series Duration 20 degree Crankshaft Rotation
Voltage Required 12-18 Volts, Negative Ground
Weight and Size 4.85 lbs.,8.25"L x 3.75"W x 5.75"H
