Cometic Build Your Own MLS Head Gaskets Choose Bore Type, Bore, & Thickness (Set/2) COM-Head-Gasket
Your Selected Product
Choose Bore Size
Choose Thickness

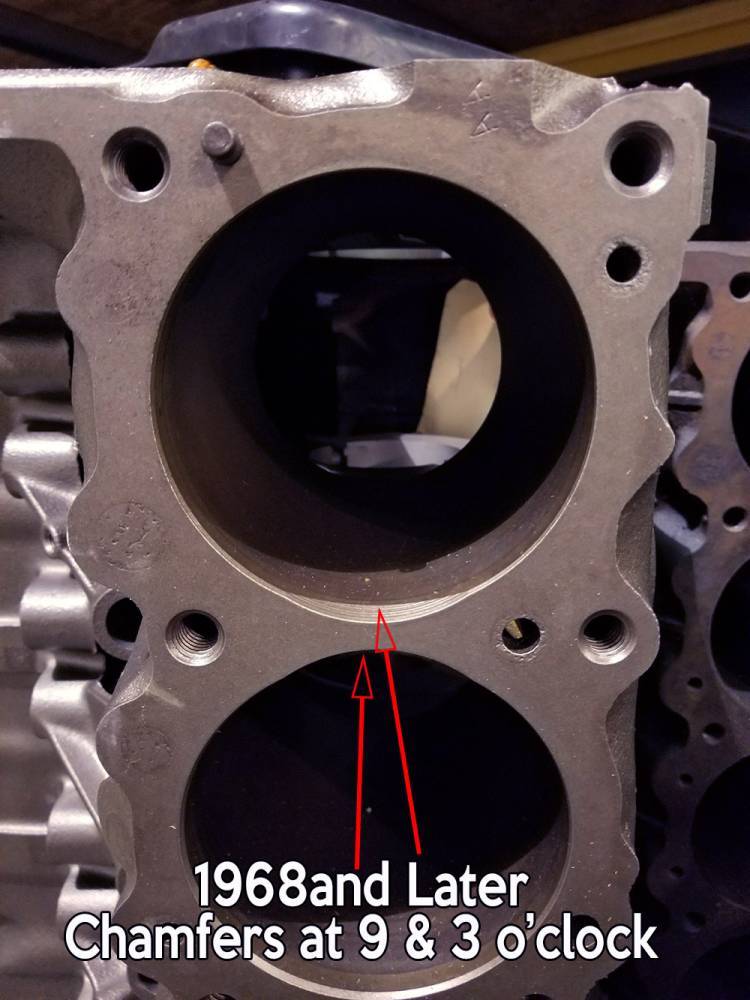

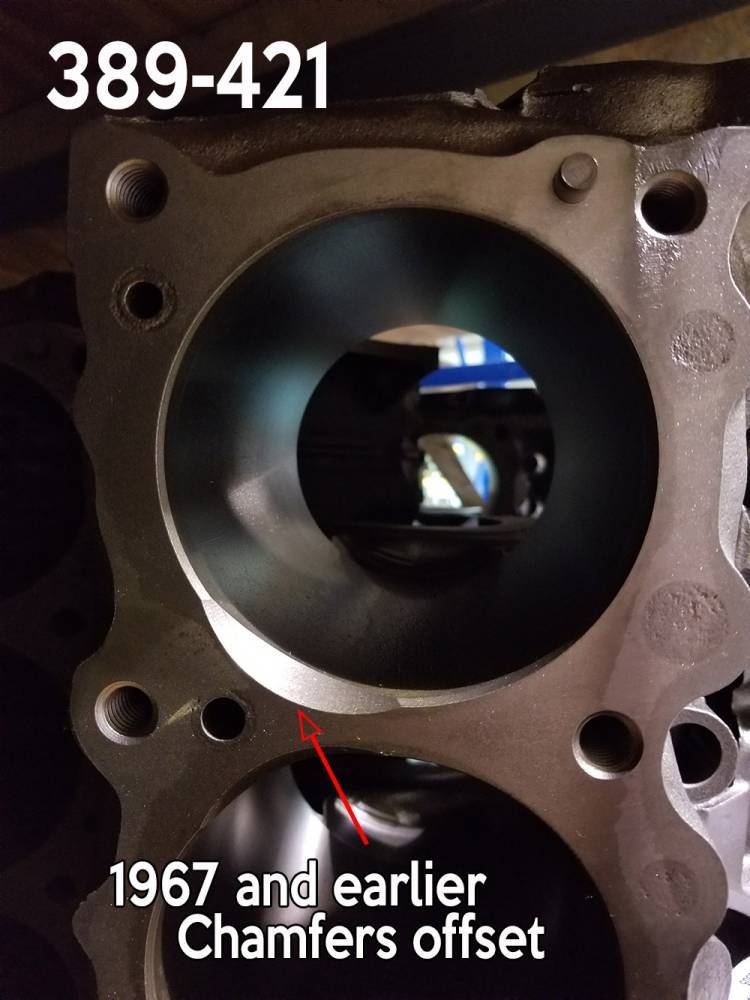

Round, Chamfered (standard), or Chamfered (offset) Bore
(Set/2)
Description

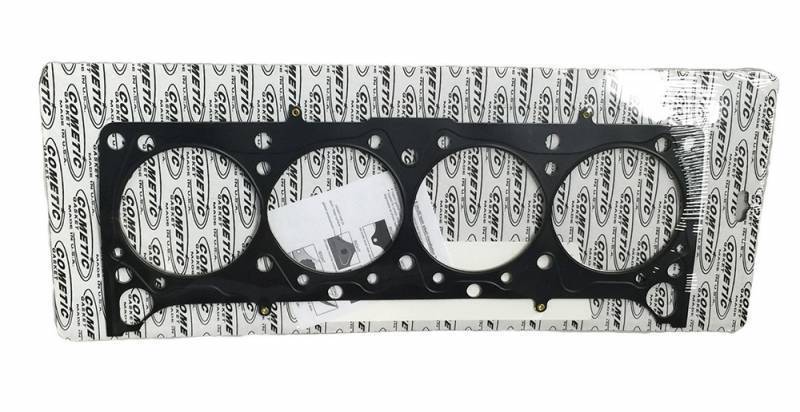

Cometic Head Gaskets are available in sizes ranging from .027"-.120" thickness and many different bore sizes -Round or Chamfered Bore/priced by thickness.
See our stocking Cometic H1702SPE 4.225" gaskets for all 400-428-455 with bores of 4.120" to 4.211" fits both round bore or chamfered bores.
Base on 4.225" Bore
.040" Chamfered Gasket Volume +9.5cc (.040" is standard/most common thickness)
.051" Chamfered Gasket Volume +12cc
.060" Chamfered Gasket Volume +14.1cc
.075" Chamfered Gasket Volume +17.5cc
.098" Chamfered Gasket Volume +23cc
.120" Chamfered Gasket Volume +28cc
Base on 4.225" Bore
.040" Round Gasket Volume +9.2cc (.040" is standard/most common thickness)
.051" Round Gasket Volume +11.7cc
.060" Round Gasket Volume +13.8cc
.075" Round Gasket Volume +17cc
.098" Round Gasket Volume +22.5cc
.120" Round Gasket Volume +27.5cc

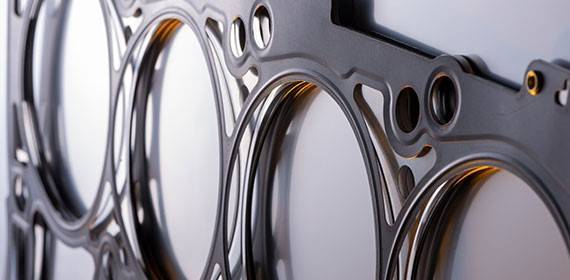

Multi-Layer Steel (MLS) head gaskets contain load-controlled embossments which conform load distribution across sealing the area. This creates an exceptional seal by requiring less clamp load resulting in less bore distortion.
The stainless steel outer layers are coated with FKM (Viton), a high temperature/chemical resistant polymer. A topcoat of PTFE (Teflon) aids in resistance to fret and increased cold sealing.
Details
- COM-Head-Gasket
- COM-Head-Gasket
- Cometic
- Custom Cometic head gaskets ships in 4-6 weeks
- New
Categories
Shipping Information
- Item Requires Shipping
- 2.0 lbs.
