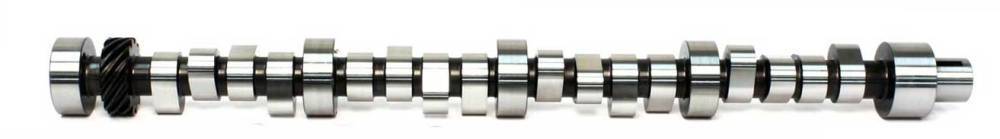

Butler/Comp Hi-Torq Street Performance Billet Roller Cam (HR) 282/288, 230/236, .510/.521, Choose Lobe Separation

Butler has had proven results with Comp Cams. These cams are custom grinds that we stock on the shelf. This takes the headache out of trying to get the custom grind for your application. We have spent lots of resources perfecting the components of our proven engines and these cams are the common grinds you will find inside them. We realized that we were asking for the same custom grinds for our applications so we decided to stock what we use.

(HR) (Std Firing Order/ Std Journals) 282/288, 230/236, .510/.521, 112LS with 1.5 ratio rockers

Lift with 1.65 ratio rockers .561/.573

Choose Idle Quality:

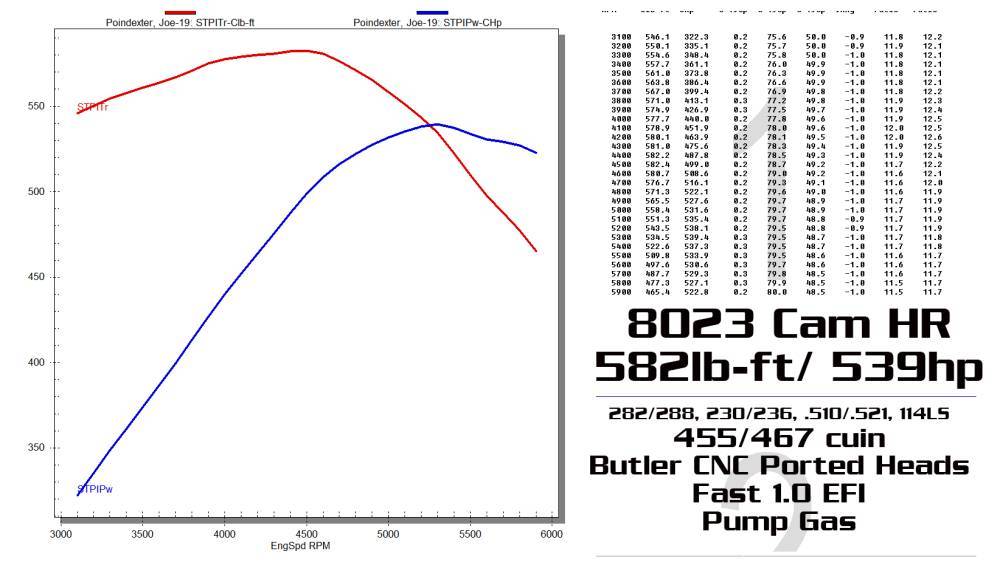

• Milder 114 Lobe Separation- Smoother, More Vacuum- BP8023SP

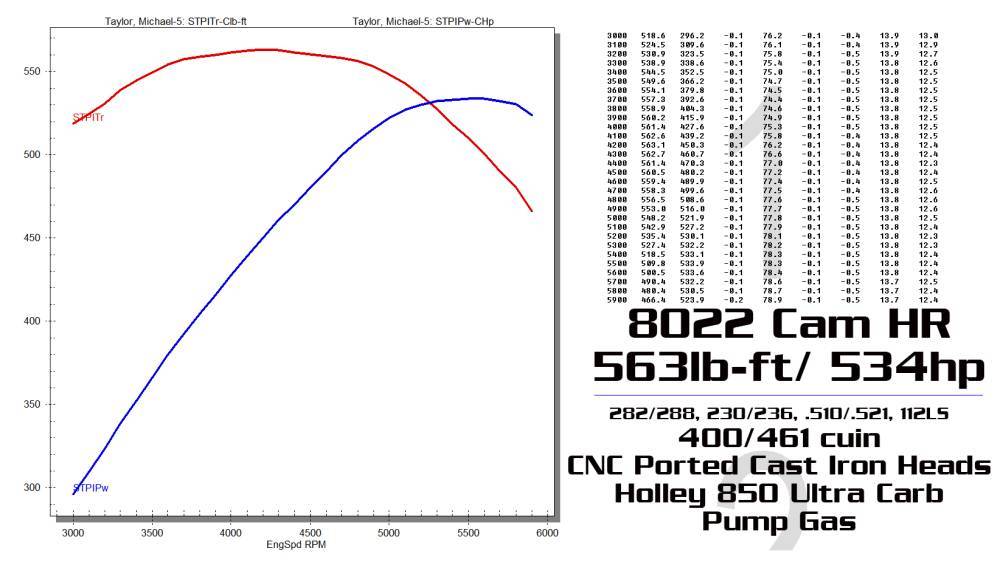

• Performance 112 Lobe Separation- Medium Choppiness- BP8022SP
• More Aggressive 110 Lobe Separation- Rougher Style Choppy Idle- BP8024SP

What Is Lobe-Separation Angle? LSA is the distance from the centerline of the intake lobe to the centerline of exhaust lobe.

 Tighter lobe separation results in a rougher idle and less idle manifold vacuum but delivers more midrange and peak power. Wider lobe separation resulted in a higher top-end and makes more vacuum but makes less peak power with a less aggressive idle.

BP/Comp Recommended Cam Degree

For 110 Lobe Sep.- Install Int. Lobe CL to 106

For 112 Lobe Sep.- Install Int. Lobe CL to 108

For 113 Lobe Sep.- Install Int. Lobe CL to 109

For 114 Lobe Sep.- Install Int. Lobe CL to 110
