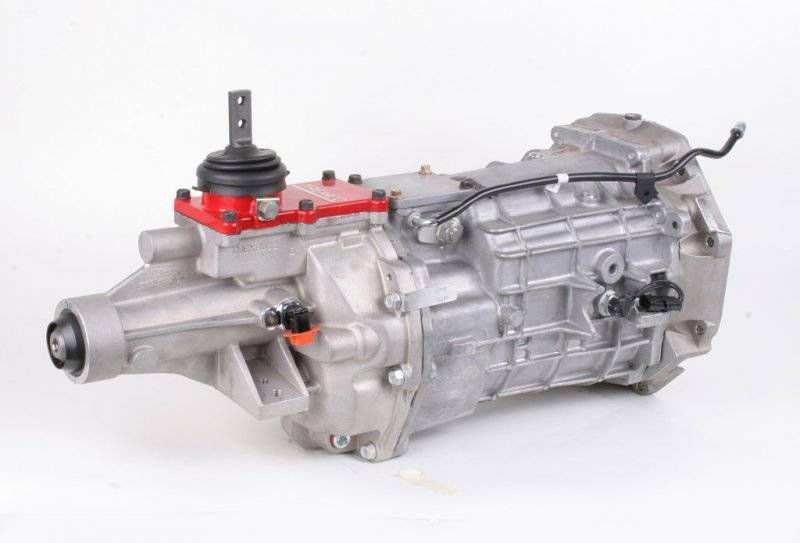

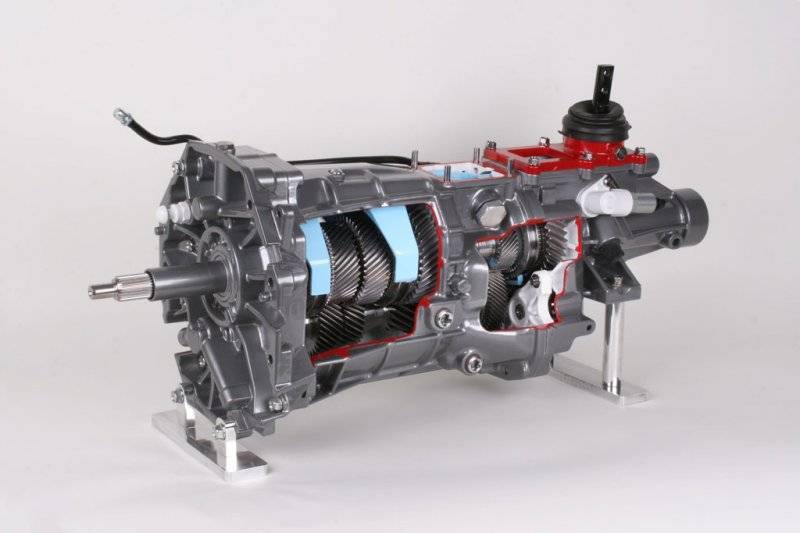

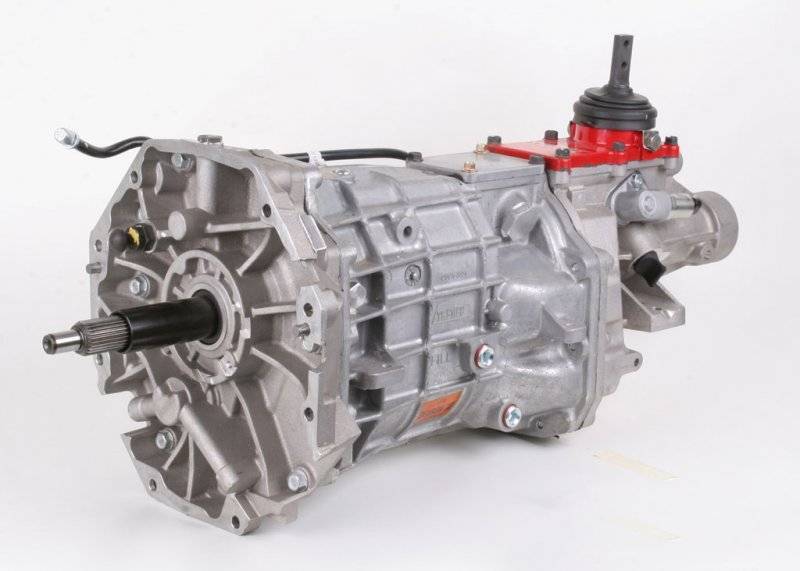

Tremec 6-Speed Magnum T56 Wide Ratio GM Transmission (Trans Only) BPI-TRANS-TUET-11012

Additional Images

Your Selected Product

Pricing: $3645.00

Qty:

Need Assistance?

We are here to help. Click here to email us with questions about this product

Ask Butler>

(0) Reviews: Write first review
  • BPI-TRANS-TUET-11012
  • BPI-TRANS-TUET-11012
    Tremec 6-Speed Magnum T56 GM Transmission (Trans Only), Manual, 26-spline input shaft, 4616 chromoly gears and shafts, one-piece counter shaft, triple cone synchros, new in box, full factory warranty, ratios: 2.97, 2.10, 1.46, 1:1, .74, .50. These will not Work on a 1998-2002 F-Body's or 2004-2006 GTO's
    Availability: Now ships in 2-3 business days

    Description

    The kingpin of TREMEC's high performance line-up, the T-56 Magnum double-overdrive 6-speed transmission takes the very best from TREMEC's current OEM technologies and pairs it with the most popular features of the TKO 5-speed.

    Able to withstand a massive 700 lb-ft. of torque while providing unbelievably crisp shifts, no other manual transmission on the planet offers as much combined strength, versatility, and general ease-of-use as the T-56 Magnum.

    Known in its original equipment form as the 'TR-6060', the Magnum is an aftermarket version of the same transmission found in many of today's most celebrated factory super cars – including the ZR1 Corvette and ACR Viper – giving you refinement where you want it and strength where it counts.

    • The aftermarket's premier 6-speed performance manual transmission
    • 700 lb-ft. of torque capacity
    • Reasonably light at 135 lbs. dry
    • Multiple shifter locations & dual speedo pickups for unmatched versatility
    • Choice of two different gear ratio sets (2.66 or 2.97), with unique double overdrive ratios
    • Incredibly short, extremely low-effort shift throws, with crisp, precise engagement
    • Modern OE supercar technology for the ultimate pro-tourers, road-racers, and more.
    Application Part # Engine Torque Capacity
    (lb-ft.)
    Includes
    Housing
    Clutch Type Speedo Type Spline Count
    Input / Output
    Gear Ratios
    1st
    2nd 3rd 4th 5th 6th Rev

    GM TUET11012 LS 700 No Hyd Mech/Elec 26 / 31 2.97 2.10 1.46 1.00 .74 .50 2.90
