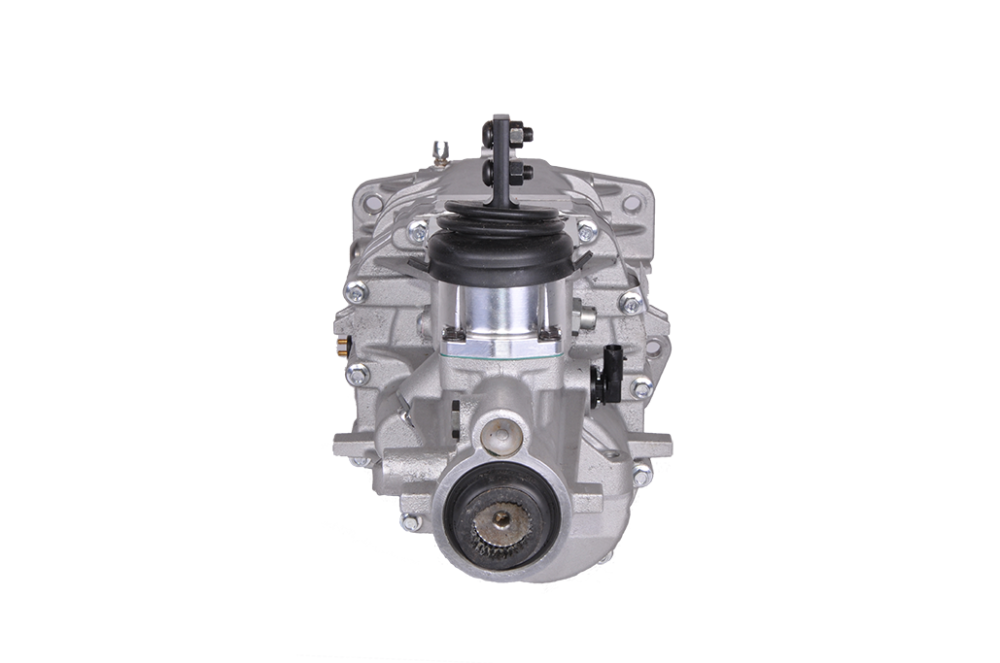

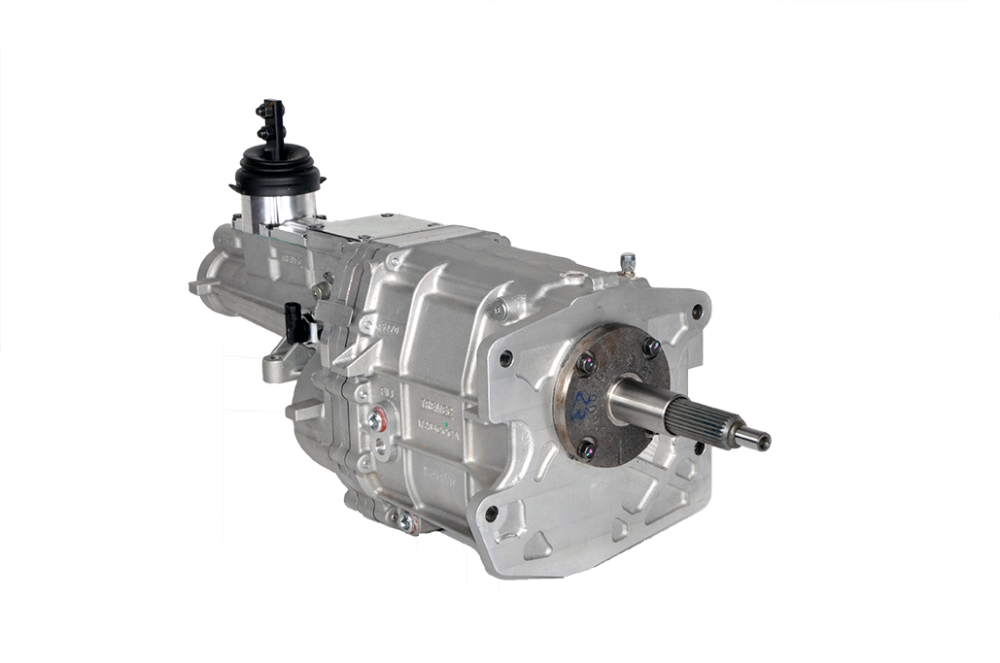

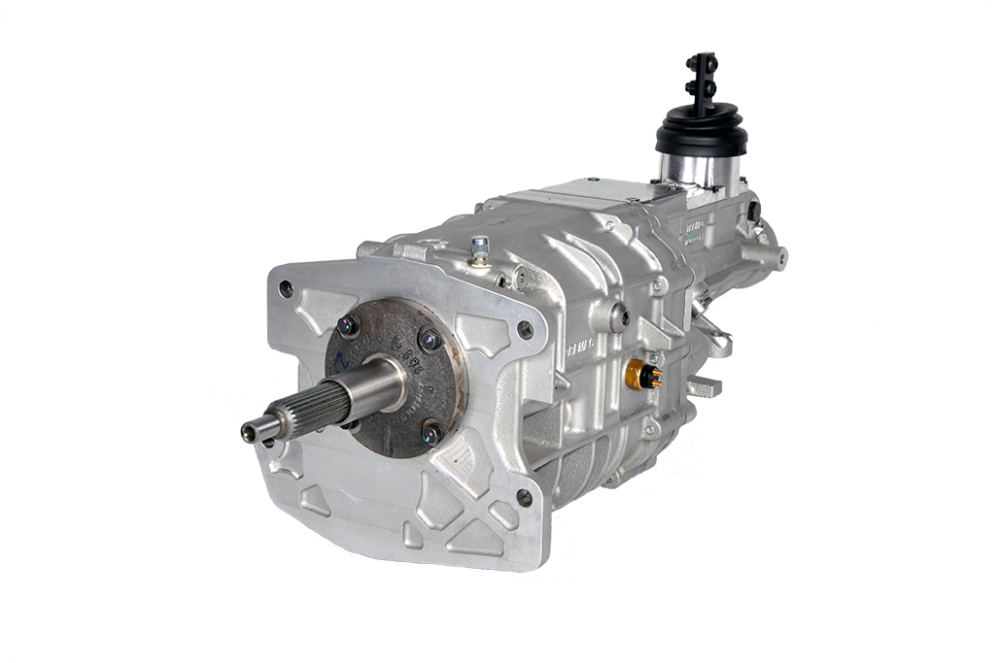

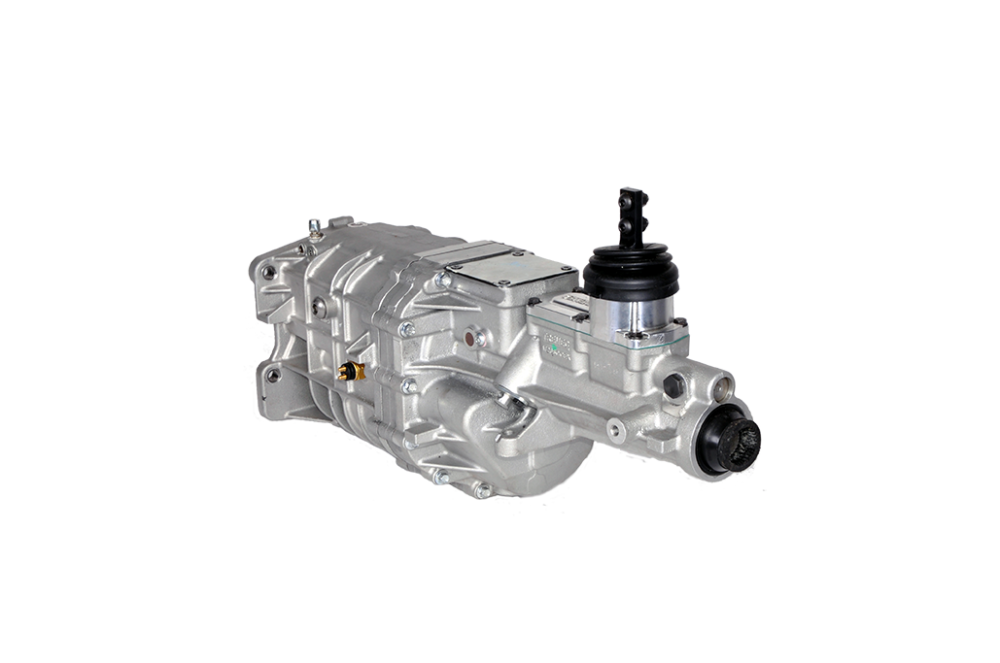

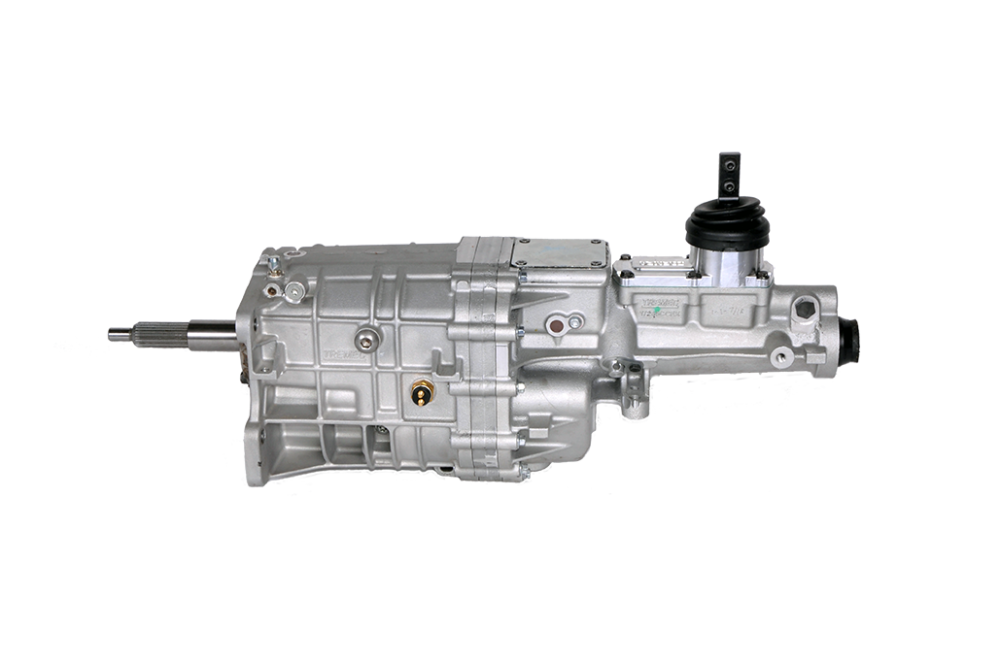

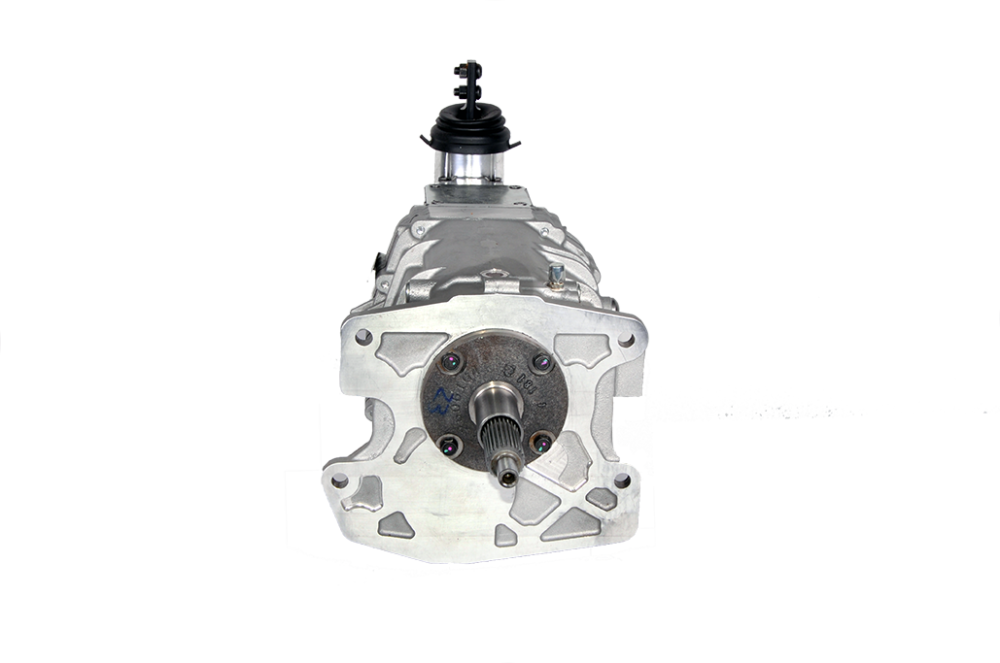

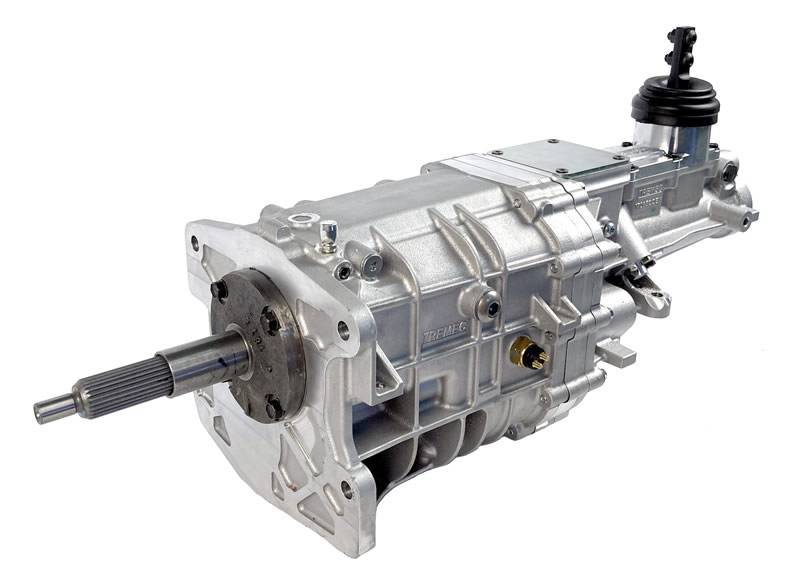

Tremec 5 Speed TKX Transmission (Trans Only) BPI-TRANS-TKX

Additional Images

Your Selected Product

Pricing: $2995.00

Starting at $271/mo with . Check your purchasing power

Customize Your Item

- Choose your TKX Ratio -
 * required
×
Qty:
Choose Product Options

Need Assistance?

We are here to help. Click here to email us with questions about this product

Ask Butler>

5 5 1
Product Rating:
  • BPI-TRANS-TKX
  • BPI-TRANS-TKX
    The TKX has a rounded case and is streamlined to the max to fit inside tight transmission tunnels with no cutting in most applications. The shifter plate has a low profile and the shifter is nice and compact. It's great right out of the box, but if you need a shorter throw or a relocated shifter, Butler Performance can build you a custom kit for your Pontiac
    Availability: Now ships in 5-7 business days

    Description

    Specifications:
    Torque Capacity - 600 lb•ft

    Shift Capacity - 7,500 rpms

    Input Splines - 26

    Output Splines - 31

    Shifter Positions - 3 (Over 25 with optional Shifter Upgrades)

    Speedo Output - Mechanical and Electronic



    Gear Sets:
    Wide
    3.27, 1.98, 1.34, 1.00, 0.72

    Close
    2.87, 1.89, 1.28, 1.00, 0.81

    2.87, 1.89, 1.28, 1.00, 0.68

    600 lb.-ft. of torque capacity; capable of engines speeds of 8,000 RPMs with shifts at 7,500 RPMs.
    Available in multiple gear ratio configurations (See specifications).
    Designed for multiple applications with three shifter locations.
    Compact, end-loaded design provides clearance in most transmission tunnels without floor modifications.
    Increased case strength with three-piece aluminum housing provides outstanding structural stiffness.
    Gaskets at all flanges simplifies installation and eliminates fluid leaks.

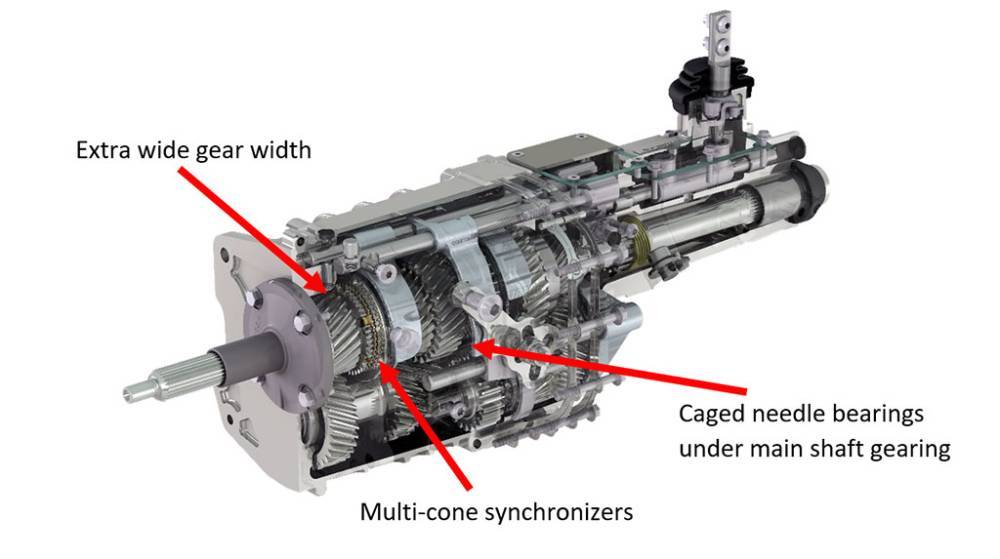

    Superior shift-ability through use of multi-cone synchronizers and hybrid synchronizer rings made of sintered bronze and carbon
    All gears and shafts made from special grade steel (ASTM 4615), providing increased torque carrying capacity.
    Equipped with a high-performance short-throw billet aluminum shifter that isolates road noise, while providing clean, crisp shifts.
    Robust design with internal three-rail shift system and steel shift forks.
    Wide gear width increases gear life and torque capacity.

    Stacy David TKX Video

    Unboxing at Holley

    SST Videos

    Details

    • BPI-TRANS-TKX
    • BPI-TRANS-TKX
    • Butler Performance
    • Now ships in 5-7 business days
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 120.0 lbs.
    • This item ships in its own box.

    Customer Reviews

    Comment Total Reviews (1)

    happy with my 5spd purchase from Butler Performance
    • Currently 5/5 Stars

    Reviewed by:

    Product ownership: A year or longer

    Purchased from: Butler Performance Inc.

    Comments:
    I ordered my (bare) .68od TKX in the spring of 2022 from Butler Performance. Did the swap/install myself. All was fairly easy swapping out the ST-10 for the 5 speed. Have been using it daily for over 2 years now and well over 40,000 miles behind a 400 and a 455 with no issues. I really like the ratios and is so much better to drive at hiway speeds especially. Highly recommended this trans and gear set. I could never go back to a 4speed trans for anything I drive much. The TKX is such an improvement.
