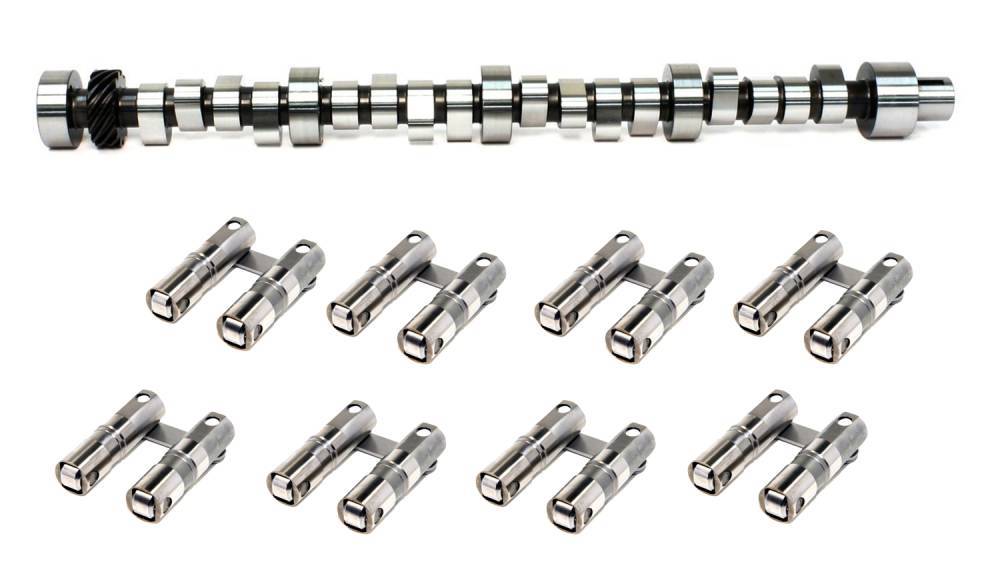

Butler/Comp Hi-Torq Street Performance Billet Roller Cam/Lifter Kit (HR) 282/288, 230/236, .510/.521, Choose Lobe Separation

BP/COMP Custom Cam- BP8022SP
(HR) (Std Firing Order/ Std Journals) 282/288, 230/236, .510/.521, 112 LS with 1.5 ratio rockers
Lift with 1.65 ratio rockers .561/.573

Fits between the 423 (mild) and the 433 (radical) Cams from Comp with wider lobe separation. Similar in size at .050" as a Ram Air IV except more lift. Also makes much power than the Ram Air IV with a broader power curve.

Choice of Hyd. roller lifters

o Morel 5884R
o Johnson 2112-OPR

Butler has had proven results with Comp Cams. These cams are custom grinds that we stock on the shelf. This takes the headache out of trying to get the custom grind for your application. We have spent lots of resources perfecting the components of our proven engines and these cams are the common grinds you will find inside them. We realized that we were asking for the same custom grinds for our applications so we decided to stock what we use.

Choose Idle Quality:

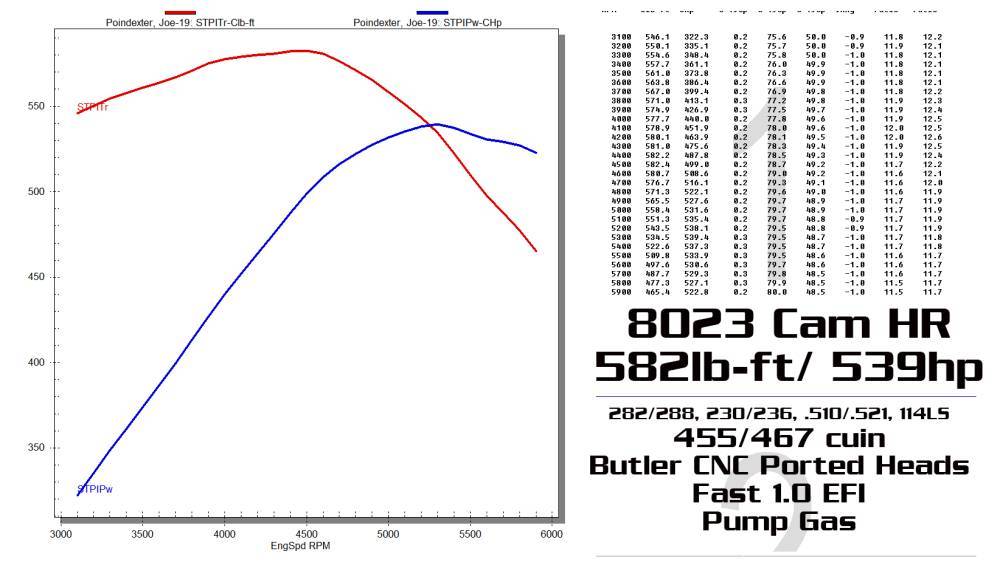

• Milder 114 Lobe Separation- Smoother, More Vacuum- BP8023SP
• Performance 112 Lobe Separation- Medium Choppiness- BP8022SP
• More Aggressive 110 Lobe Separation- Rougher Style Choppy Idle- BP8024SP

What Is Lobe-Separation Angle? LSA is the distance from the centerline of the intake lobe to the centerline of exhaust lobe.

 Tighter lobe separation results in a rougher idle and less idle manifold vacuum but delivers more midrange and peak power. Wider lobe separation resulted in a higher top-end and makes more vacuum but makes less peak power with a less aggressive idle.
