Butler/Comp Hi-Torq Street Performance Billet Roller Cam/Lifter Kit (HR) 294/300, 242/248, .540/.563, Choose Lobe Separation

(0) Reviews: Write first review

SKU: BPI-CL-BP804X

Butler/Comp custom cam and lifter kits specially designed and spec'd by Butler for Performance Pontiac applications

Pricing: $1,119.95

Customize Your Item

Choose Cam Install Option

- Choose Cam Install Option -

* required

Choose Break in Oil Option

- Choose Break in Oil Option -

* required

Cam Lobe Separation/ Idle Qualit

- Cam Lobe Separation/ Idle Qualit -

* required

We recommend a Polymer Gear on all Hyd. Roller Applications. 0.491 (Use with Factory GM HEI / Points & Mallory / Mallory Must Be Drilled for Larger Dia Pin), .500, for MSD, Pertronix, FAST, and Holley Dist Only

Choose your Polymer Distr. Gear

- Choose your Polymer Distr. Gear -

* required

Choose Your Lifter Set

- Choose Your Lifter Set -

* required

Aftermarket Valley pans or modifications of factor valley pan will be necessary when converting to Hyd Roller due to clearance issues

Choose Valley Pan Option

- Choose Valley Pan Option -

* required

Qty:

Description

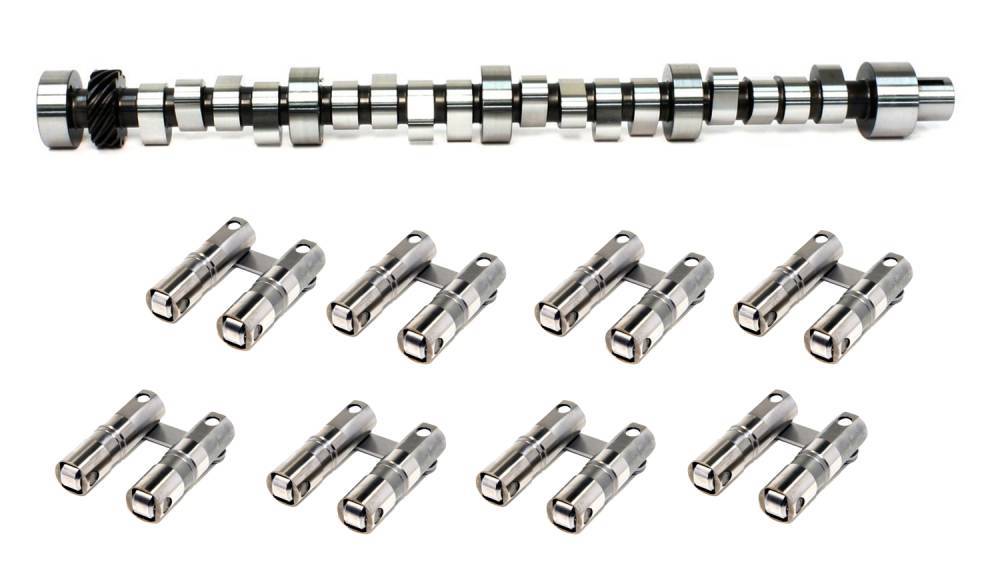

BP/COMP Custom Cam
(HR) (Std Firing Order/ Std Journals) 294/300, 242/248, .540/.563, 110ls with 1.5 ratio rockers
Lift with 1.65 ratio rockers .594/.619

600hp cam found in our 461-474 cu. in. Butler Street Engines

Choice of Hyd. roller lifters

o Morel 5884R
o Johnson 2112-OPR

Butler has had proven results with Comp Cams. These cams are custom grinds that we stock on the shelf. This takes the headache out of trying to get the custom grind for your application. We have spent lots of resources perfecting the components of our proven engines and these cams are the common grinds you will find inside them. We realized that we were asking for the same custom grinds for our applications so we decided to stock what we use.

Choose Idle Quality:

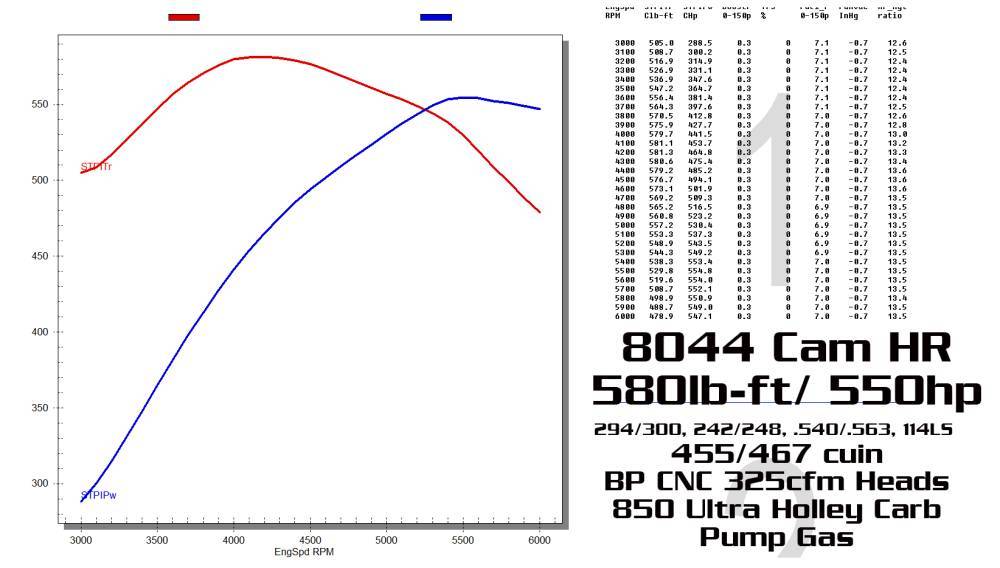

Milder 114 Lobe Separation- Smoother, More Vacuum- BP8044SP

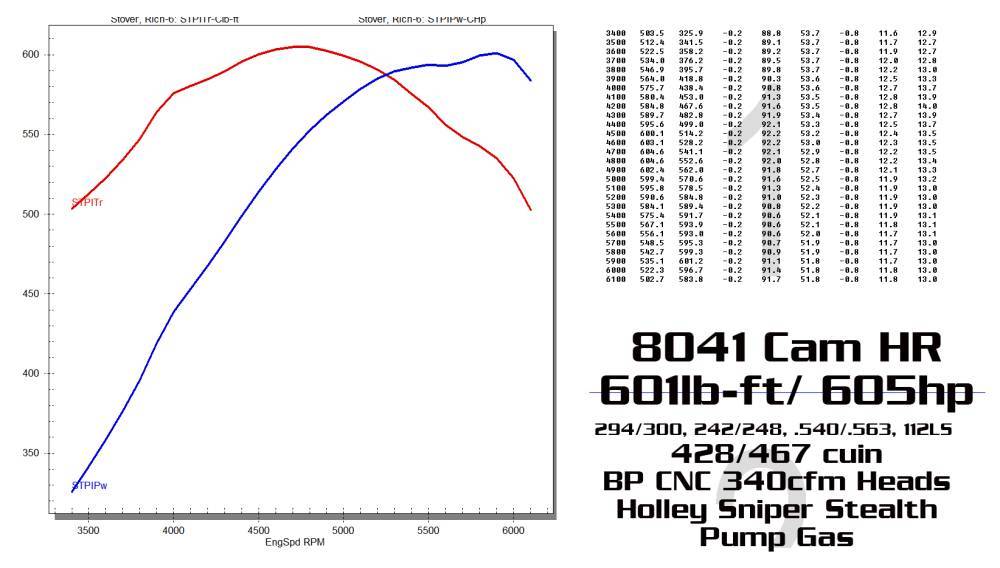

Performance 112 Lobe Separation- Medium Choppiness- BP8041SP

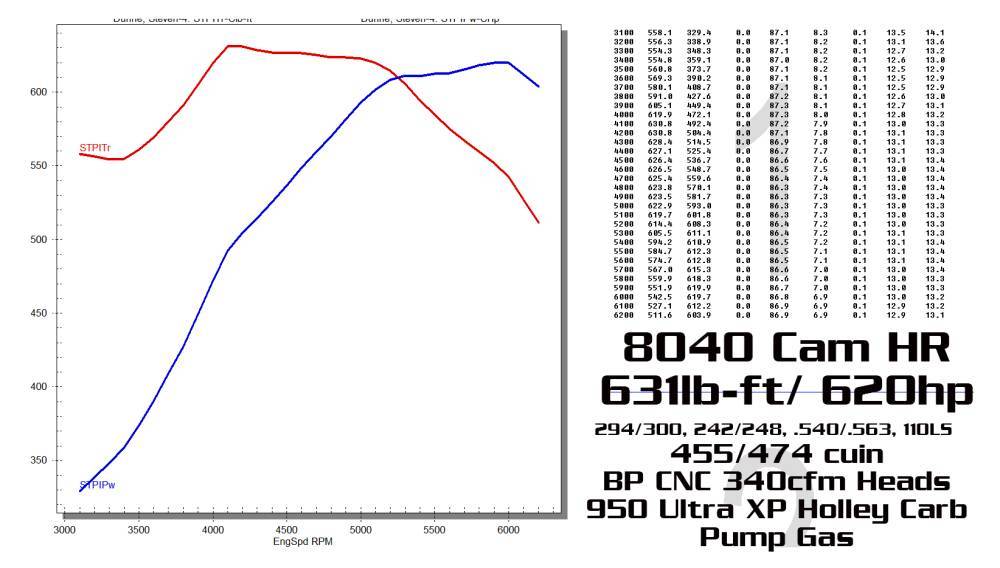

More Aggressive 110 Lobe Separation- Rougher Style Choppy Idle- BP8040SP

What Is Lobe-Separation Angle? LSA is the distance from the centerline of the intake lobe to the centerline of exhaust lobe.

Tighter lobe separation results in a rougher idle and less idle manifold vacuum but delivers more midrange and peak power. Wider lobe separation resulted in a higher top-end and makes more vacuum but makes less peak power with a less aggressive idle.
