Butler 325cfm Ported Edelbrock Rd-Port, 87cc, Hyd. Roller. Top End Package, up to 600hp Pump Gas BPI-TEP-RD-87HR-325

BPI-TEP-RD-87HR-325
550-600 HP Pump Gas Complete Top End package with Pontiac 1967-79 400-455 87cc Edelbrock Round Port Heads, Ported to 325+CFM, Complete
Availability: Due to popular demand, Ported Top End Kits currently ship in 8-10 weeks
Pricing: $4,695.00

Customize Your Item

- Choose your cam option -
 * required
- Choose Your Intake -
 * required
- Choose your Distr. Gear Option -
 * required
- Choose Your Lifter Set -
 * required
- Choose Valley Pan Option -
 * required
Qty:
Free Shipping!

Description

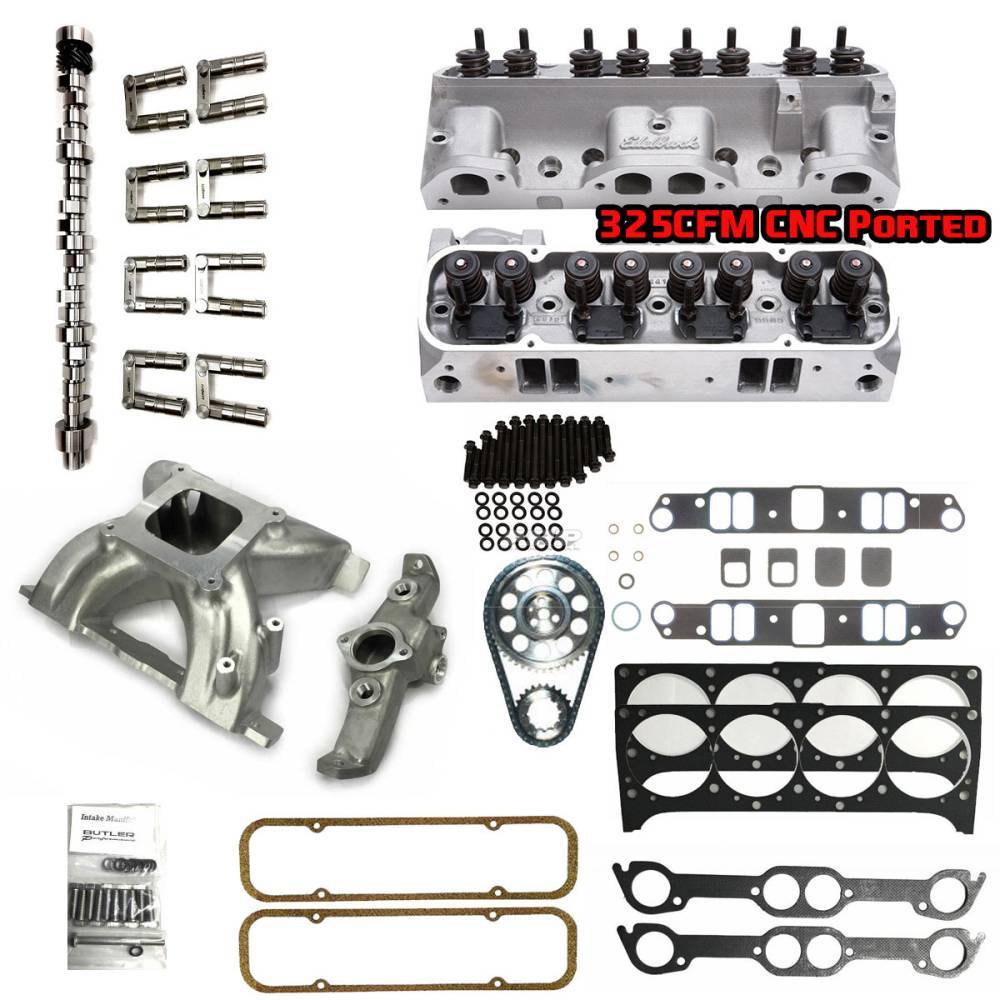

Butler Performance Top End Kits

Complete top end kit with almost everything you need to upgrade your normal Pontiac to a Butler High Performace Pontiac. These high HP combinations have been used in Butler Performance builds for many years and have powered some of the highest performing Pontiac engines in the world. We now offer these kits to take the guesswork out of piecing together a good combination that works well together. All these kits are actual build kits used in our shops. If its on here we use it in our own shop!!



BP/Edelbrock CNC Ported Round Port Custom Built Heads

Pontiac 1967-79 400-455 87cc Edelbrock Round Port Heads, Ported to 325+CFM, Complete w/ Ferrea Stainless Steel Valves, Performance Valve Springs (Matched to Application), Chromoly Locks, Retainers, Locators & Viton Valve Stem Seals w/ ARP Rocker Studs & Guide Plates / Ready to Bolt On

  • Combustion chamber volume: 87cc
  • Intake valve diameter: 2.19"
  • Exhaust valve diameter: 1.77"
  • Valve stem diameter: 11/32"
  • Valve guides: Manganese bronze
  • Deck thickness: 5/8"
  • Valve Springs per application
  • Rocker stud: 7/16"
  • Guideplate: Hardended steel
  • Pushrod diameter: 5/16"
  • Valve angle: 14
  • Exhaust port location: Stock Ram Air IV
  • Spark plug fitment: 14mm x 3/4 reach, gasket seat

Intake Option

Edelbrock 7156-325

PONTIAC 326-455 V8
PERFORMER RPM PONTIAC (1500-6500 RPM)

Dual flange for Quadrajet or Holley 4150

Designed for 1965-79 street 326-455 c.i.d. Pontiac V8's (except Ram Air V and 265/301 V8's). Pontiac intake manifolds provide maximum high-rpm power while maintaining good throttle response for street. Recommended for high-performance street, strip and marine. Has clearance for HEI distributor. Will not fit under Trans Am Shaker hood without modifications. Port matched to our ported 325cfm heads.

Pontiac Edelbrock Performer RPM Intake
**7/8" taller than stock**Will Not Fit Pre-1965 heads**

Edelbrock 5056-325

The Torker II manifold by Edelbrock is a superior high performance single plane intake for Pontiacs. This intake is good for Pontiacs with ported heads that demand high airflow. Especially good on 389, 400, and 428 engines. Port matched to our ported 325cfm heads.

Butler Northwind 4150-325

Low Rise
356-T6 Aircraft Aluminum
5 Axis CNC machined
4150 Flange
Port matched to our BPI Ported 325cfm Heads


HP Levels based on Cam Options

461-474 cu in- 530-600HP

8022 Butler/Comp SP Street Performance Billet Roller Cam (HR) 282/288, 230/236, .510/.521, 112LS (Std Firing Order/ Std Journals)

8024 Butler Comp SP Street Performance Billet Roller Cam (HR) 282/288, 230/236, .510/.521, 110LS (Std Firing Order/ Std Journals)

8030 Butler/Comp SP Street Performance Billet Roller Cam (HR) 288/294, 236/242, .521/.540, 112LS (Std Firing Order/ Std Journals)

8032 Butler/Comp SP Street Performance Billet Roller Cam (HR) 288/294, 236/242, .521/.540, 110LS (Std Firing Order/ Std Journals)

8040 Butler/Comp SP Street Performance Billet Roller Cam (HR) 294/300, 242/248, .540/.563, 110LS (Std Firing Order/ Std Journals)

8041 Butler/Comp SP Street Performance Billet Roller Cam (HR) 294/300, 242/248, .540/.563, 112LS (Std Firing Order/ Std Journals)

505-535 cu in- 625-650+ HP

8030 Butler/Comp SP Street Performance Billet Roller Cam (HR) 288/294, 236/242, .521/.540, 112LS (Std Firing Order/ Std Journals)

8032 Butler/Comp SP Street Performance Billet Roller Cam (HR) 288/294, 236/242, .521/.540, 110LS (Std Firing Order/ Std Journals)

8040 Butler/Comp SP Street Performance Billet Roller Cam (HR) 294/300, 242/248, .540/.563, 110LS (Std Firing Order/ Std Journals)

8041 Butler/Comp SP Street Performance Billet Roller Cam (HR) 294/300, 242/248, .540/.563, 112LS (Std Firing Order/ Std Journals)



110 LS creates a more choppy idle

112 LS makes a slightly smoother idle


Lifters

2347 Pontiac Retro-Fit Hydraulic Roller Lifters. This lifter is standard in all Butler Hyd Roller Kits. Made in America.

2112-OP Johnson Lifters, Pontiac Lifter Set, Hi-Perf Hydraulic Roller, 326-455, Set/16 **Std Perf lifters have .143" of travel / Preload= 0 Lash + 1/4-1/2 Turn**

2112-OPR Johnson Lifters, Pontiac Lifter Set, Hi-Perf Hydraulic Roller, 326-455, Set/16 **Hi-Perf lifters have .093" of Travel / Preload= 0 Lash + 1/8-1/4 Turn**

ST2112-OPR Johnson Lifters, Pontiac Lifter Set, Short Travel Hydraulic Roller, 326-455, Set/16 **Short travel lifters have .058" of Travel / Preload= 0 Lash + 1/8 Turn**

2347SE Pontiac Retro-Fit Hydraulic Roller Lifters with Pressure Pin Oiling, Slow Leak-down (SE)(Set/16)

Timing Chain

Pontiac Pro Billet Timing Set, Double Roller, Billet Gears, 9 Keyway Crank Sprocket w/ Seamed Chain

Available in standard length and -5 (.005" shorter if line bored)

Fasteners & Gaskets

ARP Pontiac Head Bolt Kit For Edelbrock RD-PORT/Performer Cylinder Heads

Intake Manifild Bolt Kit

5/16" Cork/Rubber Valve Cover Gaskets

RD-Port Reinforced Exhaust Gaskets

Pontiac Intake Gaskets - 340+ CNC Heads 1.20 X 2.560 (Set) Butler recommends these gaskets on Edelbrock 340cfm Ported Cylinder Heads

B.P.'s exclusive headgaskets, same as used in Butler Performance engines

Pushrods & Pushrod Checker

We include a pushrod length checking tool in each kit for measuring proper pushrod length. Because brands of lifters and rockers require different pushrod length.

Rockers

We offer many style rockers to choose from. Rockers that will work for these kits include stainless steel or aluminum from brands such as Comp, Scorpion, PRW, Crower, and more.

We recommend 1.5 ratio rockers so that pushrod slotting is not neccessary.

Valley Pan & Distributor Gear

Hydraulic Roller Lifters require aftermarket valley pan such as the TPP-TP-041S

Requires polymer distibutor gear such as BOP-PDG37 or BOP-PDG38

Compression Ratio Numbers for Reference (Compression ratio with Block, Head, and Stroke with -8cc FT)

400 Block Head cc w/-8cc Flat top
Stroke Bore 72cc 87cc
3.750" 4.155" 10.38 9.02
4.181" 10.48 9.11
4.000"

4.155"

11 9.55
4.181" 11.12 9.65
4.210" 4.155" 11.53 10
4.181" 11.65 10.1
4.250" 4.155" 11.63 10.09
4.181" 11.75 10.19
4.500" 4.155" 12.25 10.62
4.181" 12.38 10.73



455 Block Head cc w/-8cc Flat top
Stroke Bore 72cc 87cc
4.000"

4.181"

11.12 9.65
4.211" 11.25 9.76
4.210" 4.181" 11.65 10.1
4.211" 11.78 10.22
4.250" 4.181" 11.75 10.19
4.211" 11.89 10.31
4.500" 4.181" 12.38 10.73
4.211" 12.53 10.86

Click Here for our compression calculator for other variations such as bore, gasket thickness, decking, and piston types and volumes
