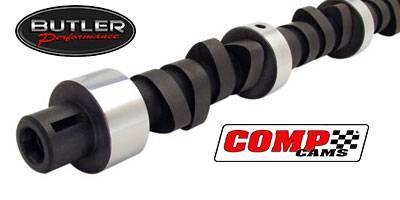

Comp Cams Custom Grind Solid Flat Tappet Camshaft CCA-51-000-5-S

SKU: CCA-51-000-5-S

Comp Custom Grind Flat Tappet Cam/Pontiac- Solid

Notice: All flat tappet cams require break-in oil and the use of oil additives. They also require a more extensive break-in process.

Pricing: $339.95

Description
Xtreme Energy Solid Lobes
High Torque Solids Lobes
XTQ Solids Lobes
Details
Shipping
Reviews

Description

We can combine ANY of these lobes to make a split pattern cam for you application.

We use these lobes to produce good torque and horsepower.

We also have many more lobes available that are not listed. Contact us for recommendations.

Xtreme Energy Solid Lobes

Xtreme Energy Solid

The Extreme Energy Solids are designed with similar characteristics to the Extreme Energy Hydraulics to maximize torque, acceleration, and throttle response while providing even more high RPM horsepower by taking advantage of the increased stability of a solid design. These cams have ramps that provide shorter seat timing than all but the most aggressive race solids, but feature a special closing section to eliminate excessive noise.

Lobe #	Adv. Duration	Duration @ .050	Lift 1.5	Lift 1.6	Lobe Lift
6052	256	218	.467	.498	.311
6083	262	224	.470	.501	.314
6053	262	224	.479	.510	.319
6084	268	230	.470	.501	.314
6054	268	230	.489	.522	.326
6055	274	236	.503	.536	.335
6056	280	242	.512	.546	.341
6057	282	244	.521	.555	.347
6058	290	252	.528	.563	.353
6059	290	252	.542	.578	.361
6091	298	260	.528	.563	.353
6061	298	260	.560	.597	.373

High Torque Solids Lobes

High Torque Solids

The High Torque Solid is designed to be used on.843" or larger tappet diameters. These are our winningest all around solid designs. Tappet acceleration rates are high to produce maximum torque vs. horsepower in an all out racing engine. Works well as exhaust when coupled with TL or XTQ intake designs.

Lobe #	Adv. Duration	Duration @ .050	Lift 1.5	Lift 1.6	Lobe Lift
6015	270-1	235	.495	.528	.331
6001	280-1	242	.507	.541	.339
6014	285-1	250	.533	.568	.356
6016	290-1	256	.540	.576	.362
6009	295-1	262	.555	.592	.370
6018	300-1	265	.563	.600	.376
6000	305-1	272	.578	.616	.387
6010	310-1	275	.585	.624	.390
6004	310-2	270	.563	.600	.375
6011	320-1	283	.588	.627	.392
6005	320-2	280	.563	.600	.375

XTQ Solids Lobes

XTQ Solids

The XTQ Solid design sets the new standard for aggressive .842" lifter designs. With seat timing as low as our original tight lash series and more area than our infamous "XX" .875" series, these designs give their racers a clear edge over the competition. Smaller designs are intended for restricted applications: larger designs can be used in open application with an optimized valve spring selection.

Lobe #	Adv. Duration	Duration @ .050	Lift 1.5	Lift 1.6	Lobe Lift
6275	248	218	.465	.496	.311
6276	254	224	.477	.509	.319
6277	260	230	.488	.520	.326
6258	266	236	.501	.534	.334
6259	270	240	.510	.544	.340
6260	274	244	.519	.554	.346
6261	278	248	.531	.566	.354
6262	282	252	.540	.576	.361
6263	286	256	.549	.586	.367
6264	290	260	.558	.595	.372
6265	294	264	.567	.605	.378
6266	298	268	.579	.618	.387
6267	302	272	.588	.627	.392
6268	306	276	.597	.637	.399
6269	310	280	.606	.646	.405
6270	314	284	.615	.656	.411
