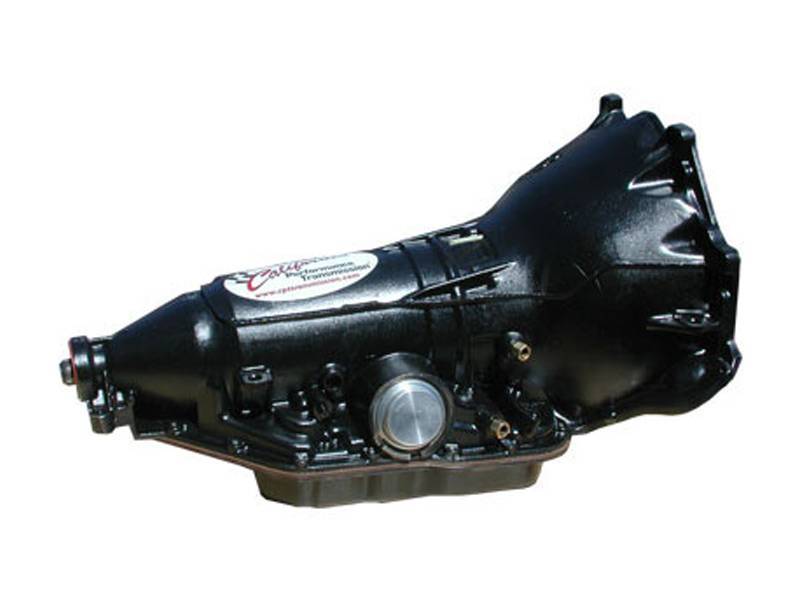

California Performance Transmission TH-200-4R 4 speed AT/Overdrive Transmission Kit CPT-2004R-KIT

CPT-2004R-KIT

TH-2004R 4 speed AT/Overdrive Transmission Kit- Rated for 750 HP (bolts directly to Pontiac blocks with no adapter plate)

Due to manufacturer availability, usually ships in 2-3 weeks
Shipping: CONTINENTAL US ONLY
Pricing: $3,495.00

Customize Your Item

- Choose Trans Oil Cooler Option -
 * required
- Choose Your Converter -
 * required
Qty:

Description

The Ultimate transmission has Art's exclusive Hi-Pro fully lined band, 2 extra clutch plates in the direct clutch (8 total), 1 additional plate in both forward and 4th gear (3 total in each), 10 vane pump kit with heavy duty slide spring, HD pressure spring, heat treated stator support, heat treated input drum assembly, heat-treated billet anchor pin, Super Servo, 300 M input shaft, heavy duty sun gear shell, new thrust washers and bushings, .500 boost valve, .296 Reverse boost valve, Hi-Tech Valve body kit and a deep aluminum pan.


Gear Ratio's: 1-2.74 2-1.57 3-1.00 4-0.67

Kit includes the following
CPT-12021
TH-2004R Trans Buick/Chevy/Olds/Pont V-8
CPT-12254
2nd Gear Anchor Pin 300M
*Upgrade for #12021 Trans for up to 750 HP*
CPT-12279
TH-2004R Super Servo-Billet Aluminum
*Upgrade for #12021 Trans for up to 750 HP*
CPT-12280
TH-2004R Universal TV Cable
CPT-12281
TH-2004R/700R4 TV Cable Mounting Bracket/GM-Holley
CPT-15599
TV Bracket 700 R4 200 4R Holley
CPT-17788
TH-700R4 / 2004R Yoke Assembly. Long For 1350 U-Joint
CPT-77799
TH-200 4R BOP-Dipstick & Tube
CPT-54073
OPTIONAL SERTAB Trans Oil Cooler HD 18000 GVW 16 RW
OPTION

CPT-16030

TH-2004R Converter 10 HD Super Torque/27 Spline/NON Lock-Up/Dual Pattern (2600-2800 Stall)

OPTION

CPT-88230

TH-2004R Converter 12 HD Super Torque/27 Spline/NON Lock-Up (2200 Stall) *Other stall speeds available / Can match to application as needed* (included in kit)

Included

Image for display purposes only

Details

  • CPT-2004R-KIT
  • CPT-2004R-KIT
  • CPT
  • New

Shipping Information

  • Item Requires Shipping
  • $349.95
  • CONTINENTAL US ONLY
