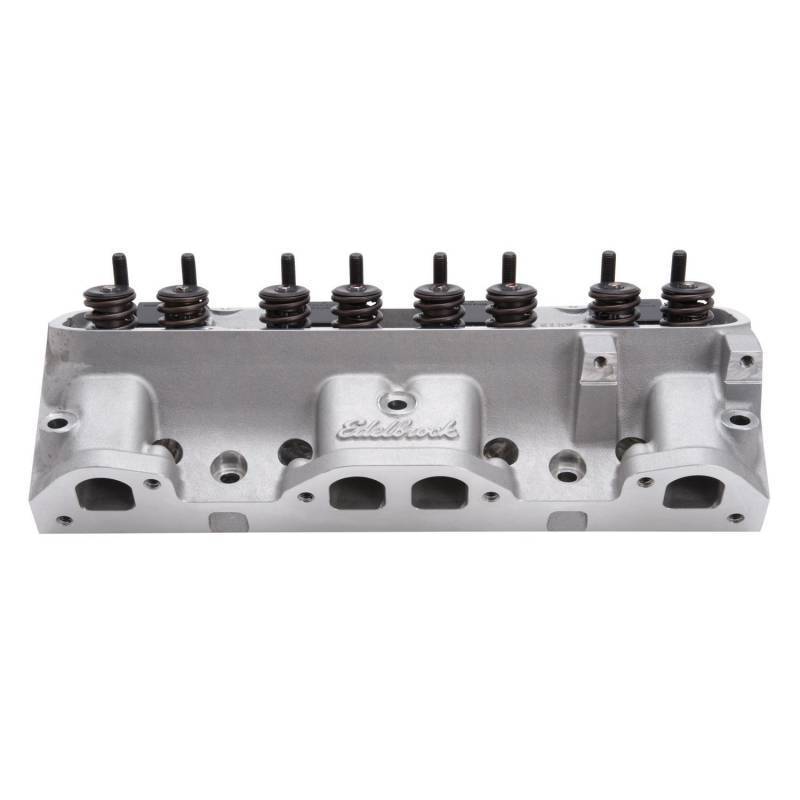

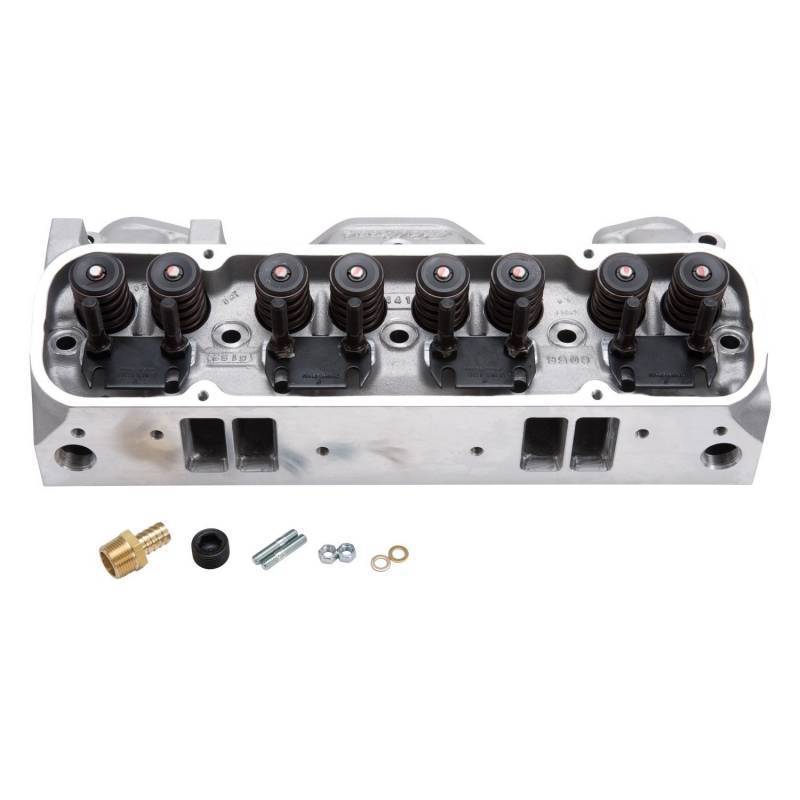

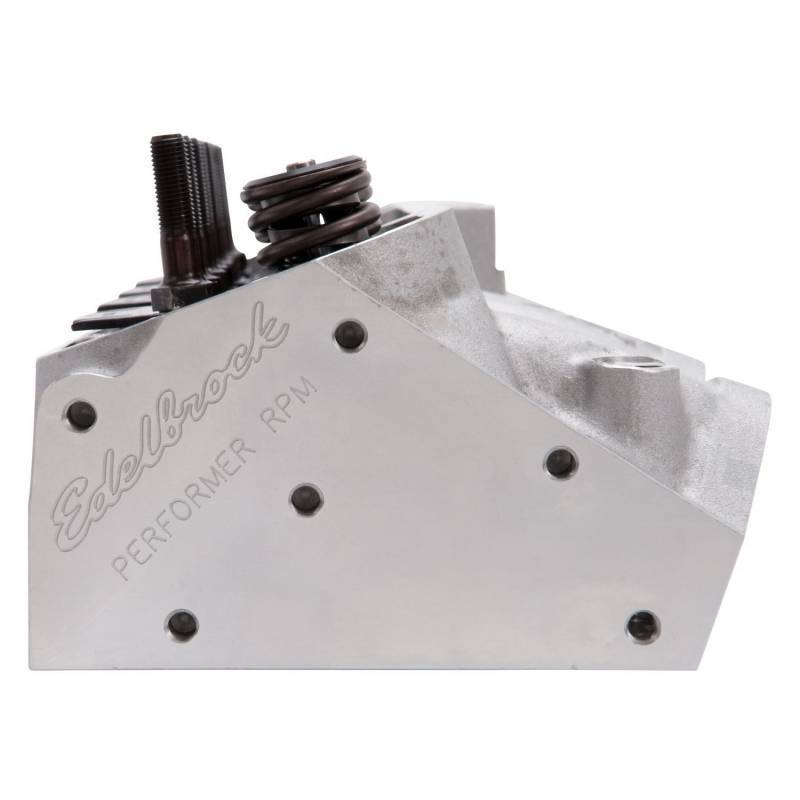

Edelbrock Round Port Pontiac 87cc Cylinder Heads, Fast-Burn CNC Chambers, Hyd. Flat Tappet (Pair) EDL-61529-2


Pontiac 87cc ROUND PORT Edelbrock Heads - Complete (Pair) **Hyd FT (Single Spring)** w/ CNC Machined Chambers OUT OF THE BOX/STOCK EDELBROCK

Includes 2 Complete Heads
Pricing: $2,899.95

Customize Your Item

- Choose Your Head -
 * required
Free Shipping!

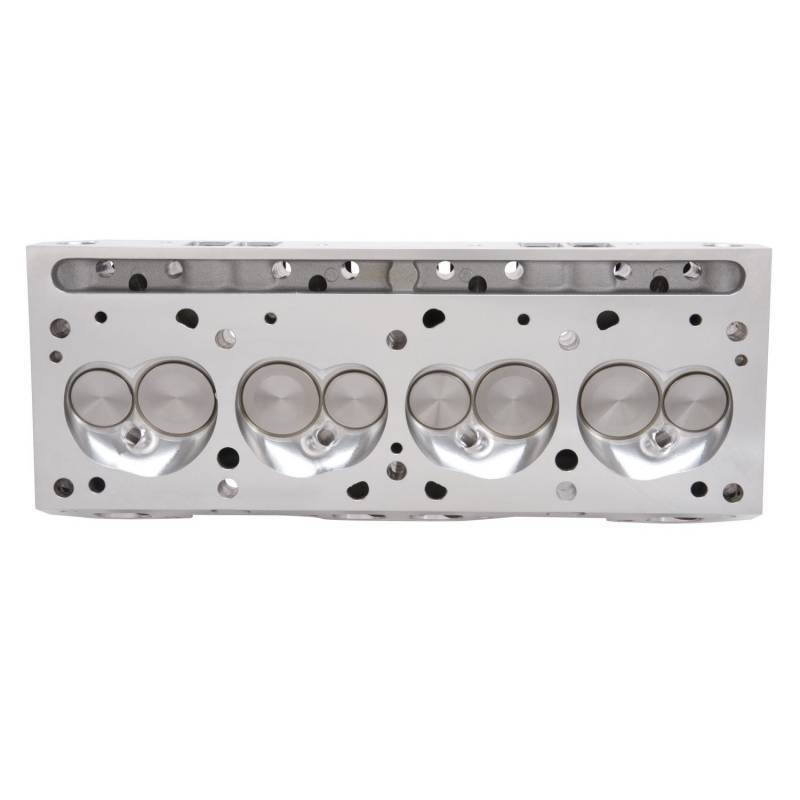

Performer RPM CNC cylinder heads have the same specifications as our popular Performer RPM Round Port cylinder heads for 1962-79 455 cubic inch Pontiac engines, but feature a CNC machined combustion chamber. The CNC machined chamber results in a consistent and precise chamber for improved flow performance & more efficient combustion. Performer RPM CNC cylinder heads are available in two chamber sizes. The 87cc chamber version is ideal for 10:1 engines and will deliver excellent street performance on low octane fuel. Performer RPM CNC cylinder heads with 72cc chambers are best for higher compression engines. Both are patterned after the same port flange configuration as the 1969-1970 Ram-Air IV Pontiac Round Port cylinder heads.


Butler Built

 Need something better than standard out of the box heads? These are built and blueprinted by Butler Performance Pontiac in our shop.

Our Heads feature Edelbrock bare casting cores with all machine work done in our head shop. They are fitted with Ferrea Valves, new guides, Comp Cams Springs, Comp locators, Comp Retainers and Locks.

These heads are custom built per order by Butler Performance. We look at your cam info and ensure the correct setup is achieved for your application.


  • Cylinder Head Specifications:
  • Combustion chamber volume: 72/87cc
  • Intake runner volume: 215cc
  • Exhaust runner volume: 175cc
  • Intake valve diameter: 2.11"
  • Exhaust valve diameter: 1.66"
  • Valve stem diameter: 11/32"
  • Valve guides: Manganese bronze
  • Deck thickness: 5/8"
  • Valve spring diameter: 1.46"
  • Valve spring maximum lift: .575"
  • Rocker stud: 7/16"
  • Guideplate: Hardended steel
  • Pushrod diameter: 5/16"
  • Valve angle: 14°
  • Exhaust port location: Stock Ram Air IV
  • Spark plug fitment: 14mm x 3/4 reach, gasket seat


  • EDL-61529-2
  • EDL-61529-2
  • Edelbrock
  • New

Shipping Information

  • Item Requires Shipping
  • 70.0 lbs.
  • Free Shipping!
