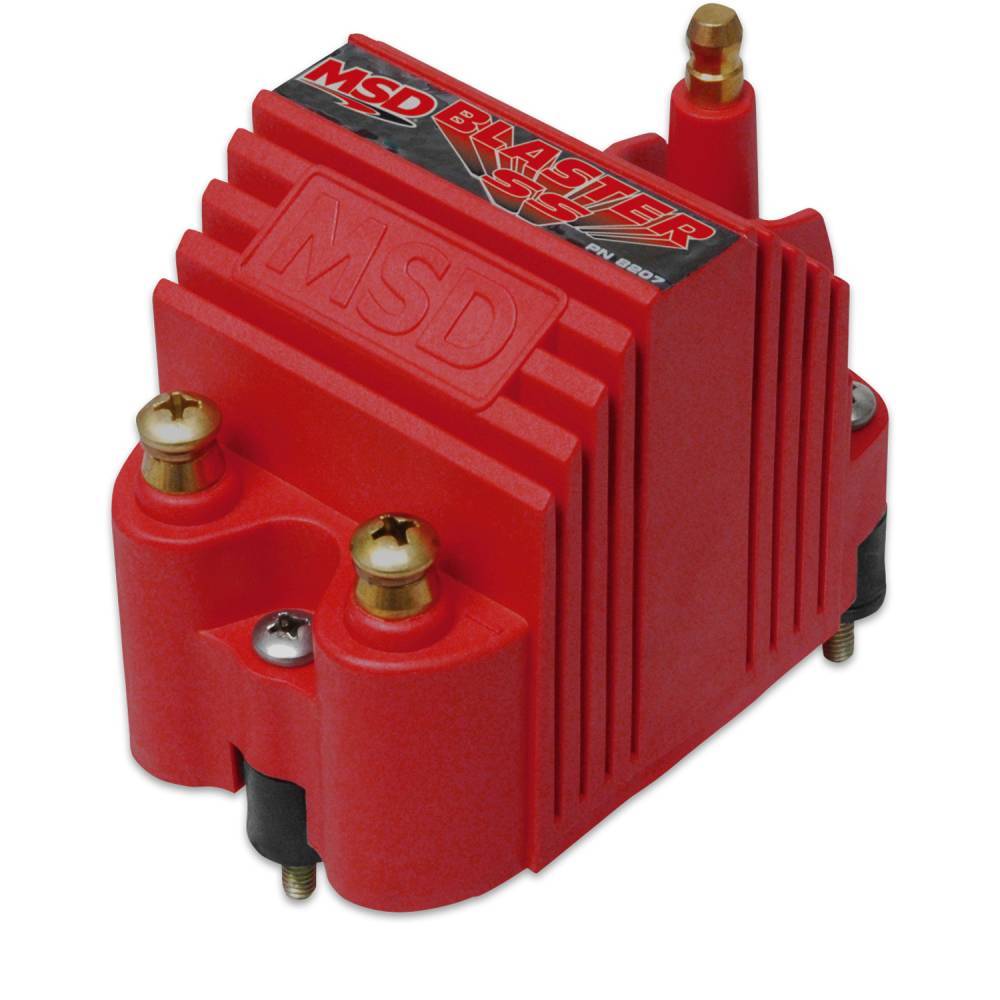

MSD Blaster SS Coil-40,000V, Red

Improved output coil for electronic ignitions, and MSD Ignitions Efficient winding design and assembly creates a compact housing Primary and secondary windings are encased in Ciba polyurethane 70:1 turns ratio and lower primary resistance produce high voltage output Dupont Rynite housing with a tall tower and brass primary terminals CARB E.O. Approved Don’t let the compact size of the Blaster SS Coil fool you, because it is packed with performance! The efficient E-core windings are designed to produce high amounts of current without sacrificing the voltage output. In fact, when used with an MSD 6 Series Ignition, the Blaster SS produces 300 milliamps with a maximum voltage output of 40,000 volts!The secondary windings are wound on a segmented bobbin which reduces the chance of voltage breakdown between the primary and secondary windings. For more protection, these windings are encased in a polyurethane compound for complete protection against vibration. The Blaster SS features brass terminals and a sturdy Rynite housing. It is supplied with a 90° boot, terminal and vibration mounts. A great addition to CD Ignitions and some stock applications.

Coil Specs
Turns ratio:	70:1
Primary resistance:	.355 OHMs
Secondary resistance:	4.4K OHMs
Inductance:	6.9 mH
Maximum voltage:	40,000 Volts
Peak current:	300 mA
Spark duration:	220 uS
Weight:	N/A
