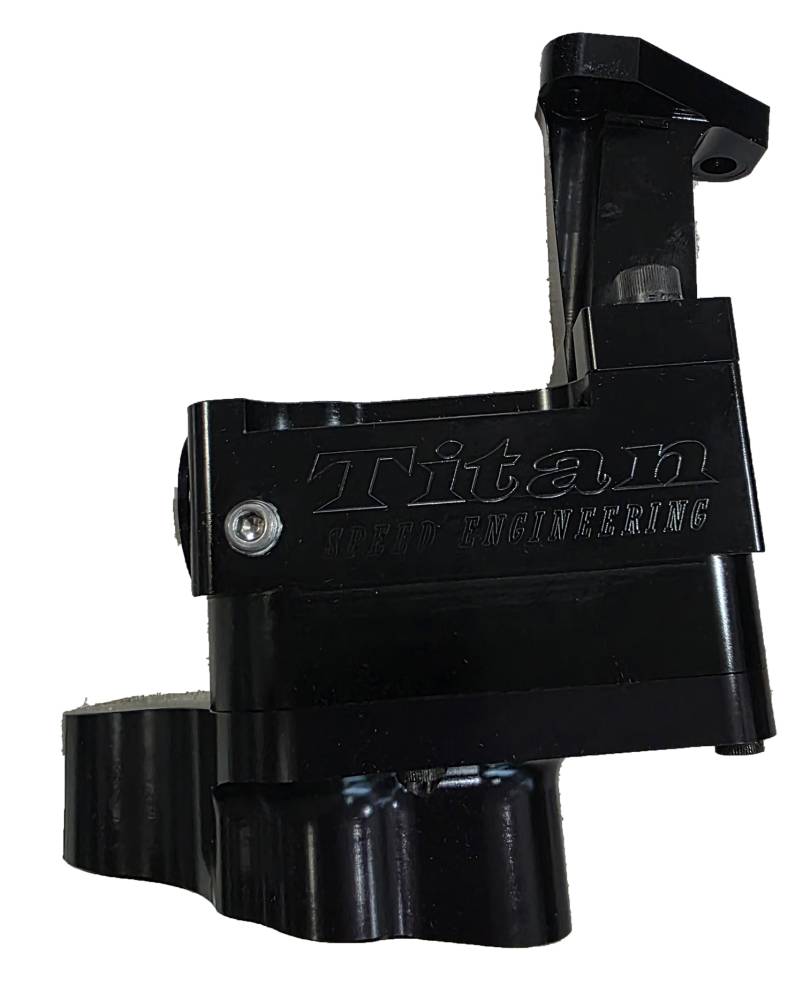

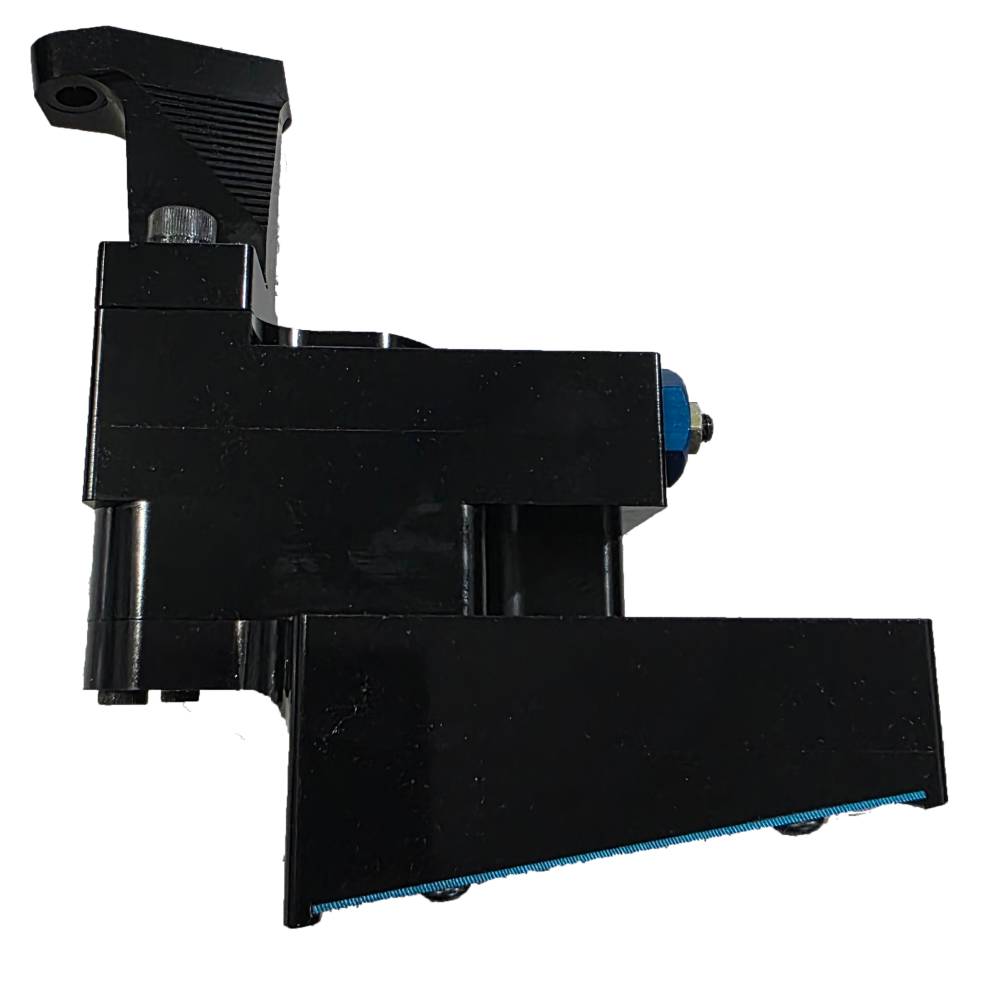

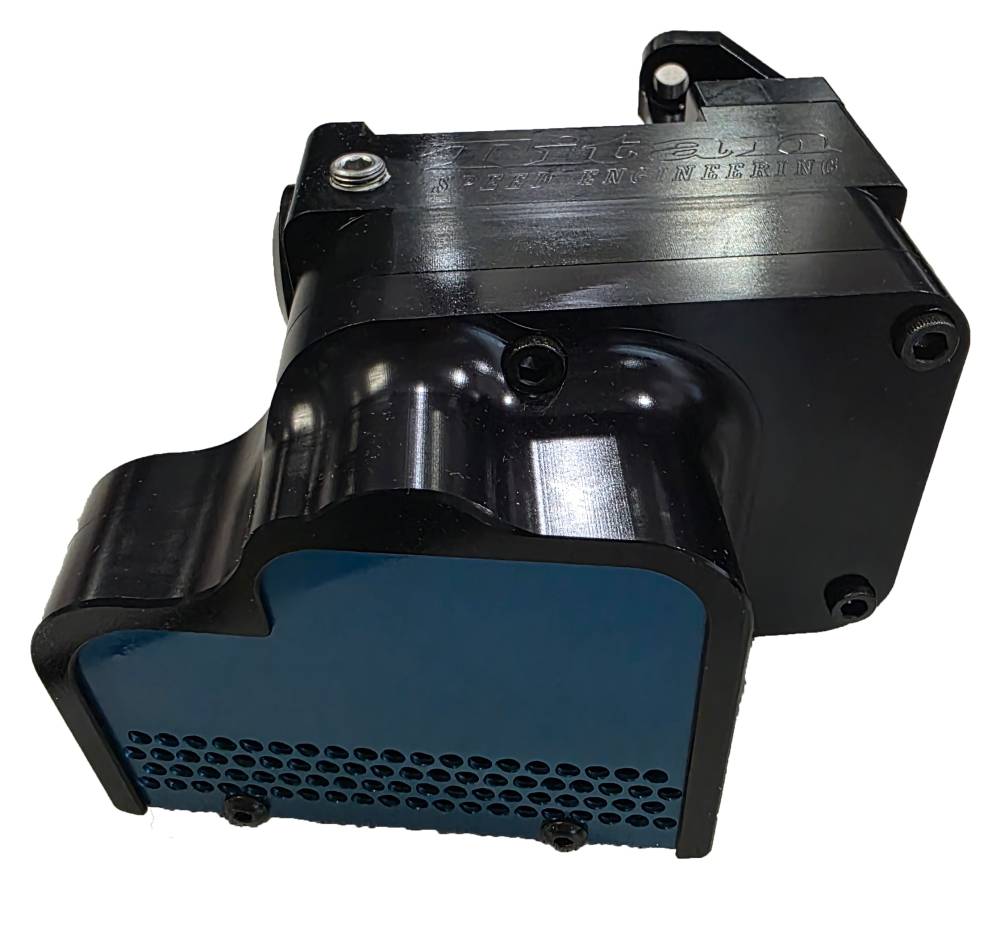

Titan Speed Pontiac Titan Pro Geroter Oil Pump TSE-1100

TSE-1100

TITAN Pro Billet Oil Pump. (Requires Special Oil Pan)

Description

The world's finest billet wet-sump oil pumps! Titan's unique, modular design enables our engineers to meet your exact requirements for volume and sump type by combining the correct cap, pickup and 300-M-tool-steel driveshaft with one or two geroters. Now offered for all popular V8s, these 7075-T6-billet models feature roller bearings on both the shaft and thrust. Pro pumps are pressure-adjustable and fully rebuildable. Options include brass drive gears, bypasses, fittings, remote pickups and super-high-volume outputs. Please call or e-mail for complete technical details.

Titan Speed Engineering is now offering its race-engineered dual-feed geroter lubrication system on its most affordable Sportsman model oil pumps for Ford engines. The pump delivers a controlled volume of oil to main bearings, even under extreme conditions and high revs.

The heart of the Sportsman oil pump is Titan's geroter system. "OEM-style spur gear pumps have to work seven times harder to deliver the same volume of oil," says Bob Sanders, president of Titan. "Our dual-feed gerotor design delivers a consistent flow of oil all the way to 12,000 rpm B and beyond."

The bolt-on Sportsman wet-sump oil pump also features a balanced flow-through relief system which smooths out spike loads on the pump drive and keeps debris from building up in the relief circuit. Friction-reducing needle thrust bearings are fitted standard to both ends of the drive.

"Most important, our gerotor design overcomes the cavitation problems that can damage bearings, cranks and pumps when engine revs hit five digits," says Sanders. AAs revs increase, a stock, single-feed pump tries to suck oil faster than it can actually enter the pump,@ he explains. "The resulting vacuum creates oil bubbles which implode around the input shaft, sending shock waves through the pump which can escalate B usually until the pump breaks."

"In developing the Titan gerotor system, we have beaten cavitation and the number one problem with oil delivery. Your bearings will definitely know the difference."

Titan builds its Sportsman pumps from certified premium aircraft grade 356-T6 billet aluminum that delivers close to 70,000 psi tensile/yield strength. The mounts are 7055-T7 aluminum (90,000 psi tensile-yield strength). Exposed surfaces, both internal and external, are hard anodized for extended life and to minimize wear and corrosion.

Shipping Information

  • Item Requires Shipping
  • 6.0 lbs.
