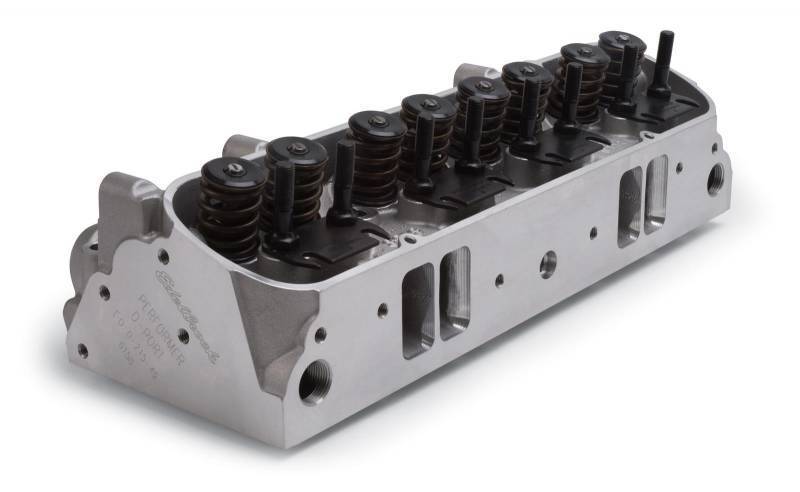

Edelbrock 87cc Aluminum D-port Pontiac Cylinder Heads, Fast-Burn CNC Chambers, Hyd. Flat Tappet (Pair) EDL-61579-2

EDL-61579-2

Pontiac 87cc D-PORT Edelbrock Heads - Complete (Pair) Includes 2 Complete Heads OUT OF THE BOX/STOCK EDELBROCK

EQUIPPED WITH SPRINGS FOR USE IN HYDRAULIC FLAT TAPPET CAMSHAFT APPLICATIONS
Pricing: $3,023.95

Customize Your Item

- Choose Your Head -
 * required
Qty:
Free Shipping!

Description

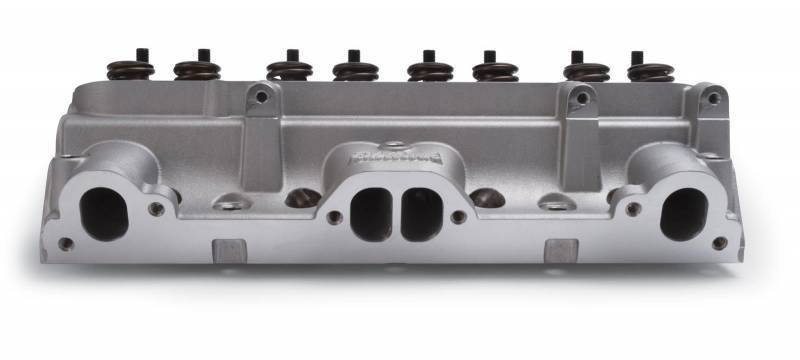

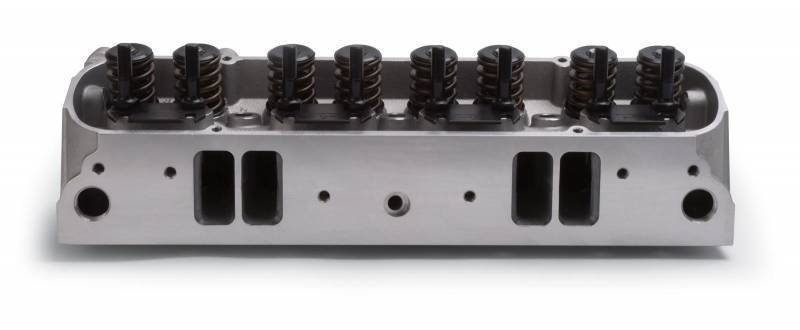

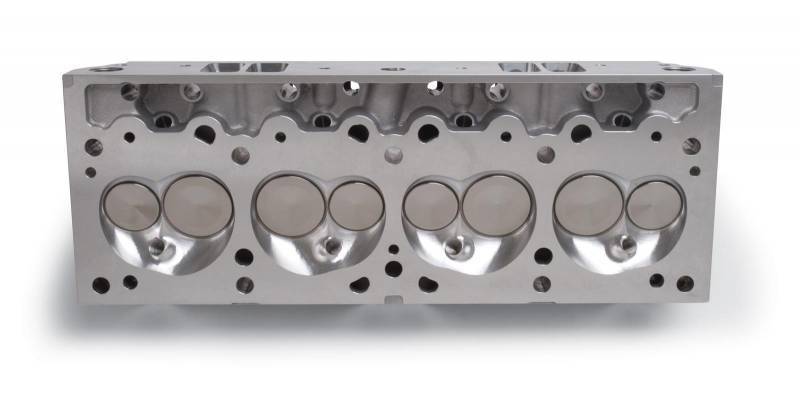

Performer Pontiac Cylinder Heads utilize a D-Port exhaust port configuration for use with standard D-port exhaust systems. They are designed for 1962-79 389, 400, 421, 428 and 455 c.i.d. V8 Pontiac engines with a 4.060" or larger bore. They feature optimized oil return passages for increased oil flow. These heads are available in three heart shaped combustion chamber sizes, including 65cc, 72cc and 87cc. The 65cc combustion chambers are as-cast while the 72cc and 87cc chambers are fully CNC’d to provide a 9.5:1 compression ratio when used with flat-top pistons. The spark plug has been relocated closer to the exhaust valve for improved performance. These heads are cast with extra thick port walls and a compact port size, making them ideal for CNC and hand porting. Complete cylinder head includes guide plates, rocker studs and high quality valvetrain for direct bolt-on application. Heat crossover is machined for 50-state emissions legal performance.

#61569 (D-PORT 87cc Chamber)Flow Numbers as tested by Edelbrock's SuperFlo SF-1020 flow bench @ 28" H2O
Valve Lift .100" .200" .300" .400" .500" .600" .700"
Intake 64 139 200 237 251 262 266
Exhaust 53 99 131 151 160 165 167

Butler Built

 Need something better than standard out of the box heads? These are built and blueprinted by Butler Performance Pontiac in our shop.

Our Heads feature Edelbrock bare casting cores with all machine work done in our head shop. They are fitted with Ferrea Valves, new guides, Comp Cams Springs, Comp locators, Comp Retainers and Locks.

These heads are custom built per order by Butler Performance. We look at your cam info and ensure the correct setup is achieved for your application.


Specifications/Information

  • Cylinder Head Specifications:
  • Combustion chamber volume: (A) 65cc / 72cc / 87cc
  • Intake runner volume: 204cc
  • Exhaust runner volume: 145cc
  • Intake valve diameter: 2.11"
  • Exhaust valve diameter: 1.66"
  • Valve stem diameter: 11/32"
  • Valve guides: Manganese bronze
  • Deck thickness: 5/8"
  • Valve spring maximum lift: .575"
  • Rocker stud: 7/16"
  • Guideplate: Hardended steel
  • Pushrod diameter: 5/16"
  • Valve angle: 14°
  • Exhaust port location: Stock
  • Spark plug fitment: 14mm x 3/4 reach, gasket seat
