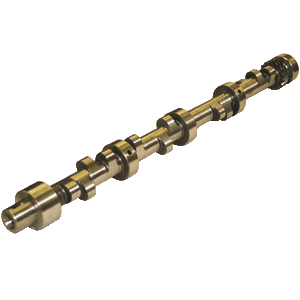

Comp Cams/Butler Billet Custom Hyd. Roller Camshaft, 50mm CCA-Custom-Hyd-Billet

Click on image to zoom

Your Selected Product

Pricing: $759.95

Qty:

Choose Product Options

Need Assistance?

We are here to help. Click here to email us with questions about this product

Ask Butler>

(0) Reviews: Write first review

Part # CCA-51-000-10-HR

Billet Custom Ground Camshaft- Ground to your choice of lobes.
4-7 Lobe Swap

Description

We can combine ANY of these lobes to make a split pattern cam for you application.
We use these lobes to produce good torque and horsepower.
We also have many more lobes available that are not listed. Contact us for recommendations.
Note: All Hyd.& Solid Roller Cams Require either a bronze or polymer distributor gear.

Click Here for a custom cam recommendation by Butler Performance

Hyd. Roller lifters require aftermarket valley pan

Specifications/Information

CAMSHAFT TYPE	LOBE NUMBER	RATED DURATION	DURATION IN DEGREES		LOBE LIFT	TAPPET LIFT @ TDC		THEORETICAL VALVE LIFT @ "0" Lash ROCKER ARM RATIO
			@ .050	@ .200		106°	110°	1.5	1.6	1.7
CUSTOM	3473	290	234	152	.360	.081	.068	.540	.576	.612
Hi Lift	3474	292	236	154	.360	.085	.071	.540	.576	.612
Rated Duration @	3410	294	238	154	.350	.088	.075	.525	.560	.595
.006” Tappet Lift	3475	294	238	156	.360	.088	.075	.540	.576	.612
Journal = G,I,S,B,R..	3376	296	240	157	.360	.092	.078	.540	.576	.612
MI 28.6 (13.7/15.0)	3411	300	244	159	.350	.099	.085	.525	.560	.595
	3479	300	244	163	.380	.100	.085	.570	.608	.646
	3370	304	248	167	.380	.107	.092	.570	.608	.646
	3377	306	250	166	.360	.111	.096	.540	.576	.612
	3371	308	254	171	.380	.119	.103	.570	.608	.646
	3372	314	258	175	.380	.126	.111	.570	.608	.646
	3373	318	262	179	.380	.134	.118	.570	.608	.646
	3374	322	266	182	.380	.142	.126	.570	.608	.646
	3375	326	270	186	.380	.149	.134	.570	.608	.646
	3447	330	274	190	.380	.157	.141	.570	.608	.646
