Hypereutectic Cast 0cc Dome Top Pistons, 455, 4.210" Str,

(0) Reviews: Write first review

SKU: UEM-KB347

Dome Top -0cc .265" Dome Height
6.625" Rod Length
5/64", 1/16", 3/16" Ring Size
Press-fit or floating
.980 Pin
Set/8

Pricing: $479.95

Customize Your Item

Choose Your Bore Size

- Choose Your Bore Size -

* required

Choose Ring Set Option

- Choose Ring Set Option -

* required

Qty:

Description

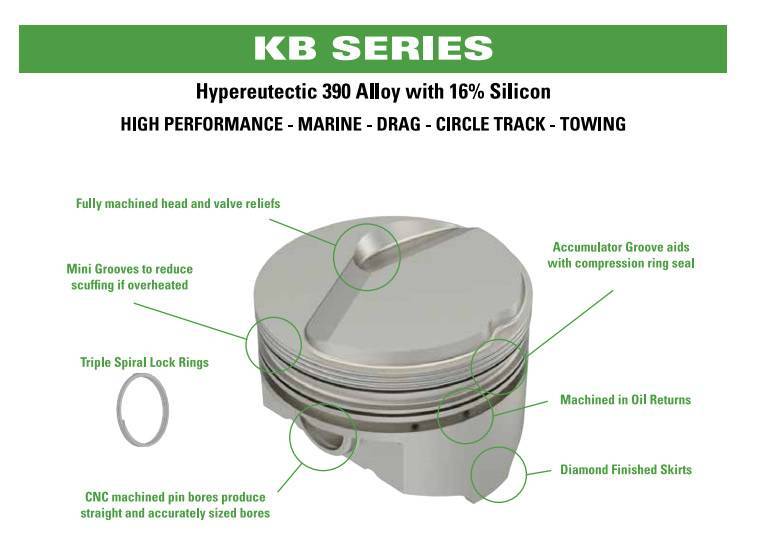

These pistons are Hypereutectic 390 Alloy with 16% silicon. They feature a diamond-machined skirt design. Spiral lock rings. Press fit or bushed wrist pins. Designed for 14-degree heads, 1967 and later.

Pistons Only
.030 Over- 4.180" Bore- KB347-030
.040 Over- 4.190" Bore- KB347-040
.060 Over- 4.210" Bore- KB347-060

Pistons and Ring Sets
.030 Over- 4.180" Bore- KB347KTM-030
.040 Over- 4.190" Bore- KB347KTM-040
.060 Over- 4.210" Bore- KB347KTM-060

These pistons come with pin locks so they can be used with BUSHED or PRESS-FIT rods.

Image may not represent actual product.

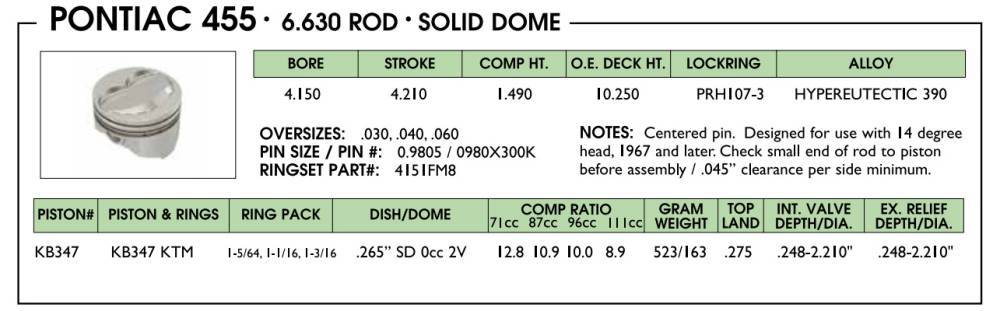

Specifications/Information

It’s important to note that the Keith Black brand of hypereutectic pistons requires a much wider top ring end gap than traditional forged pistons. The KB spec is 0.0065-inch per inch for a street engine
