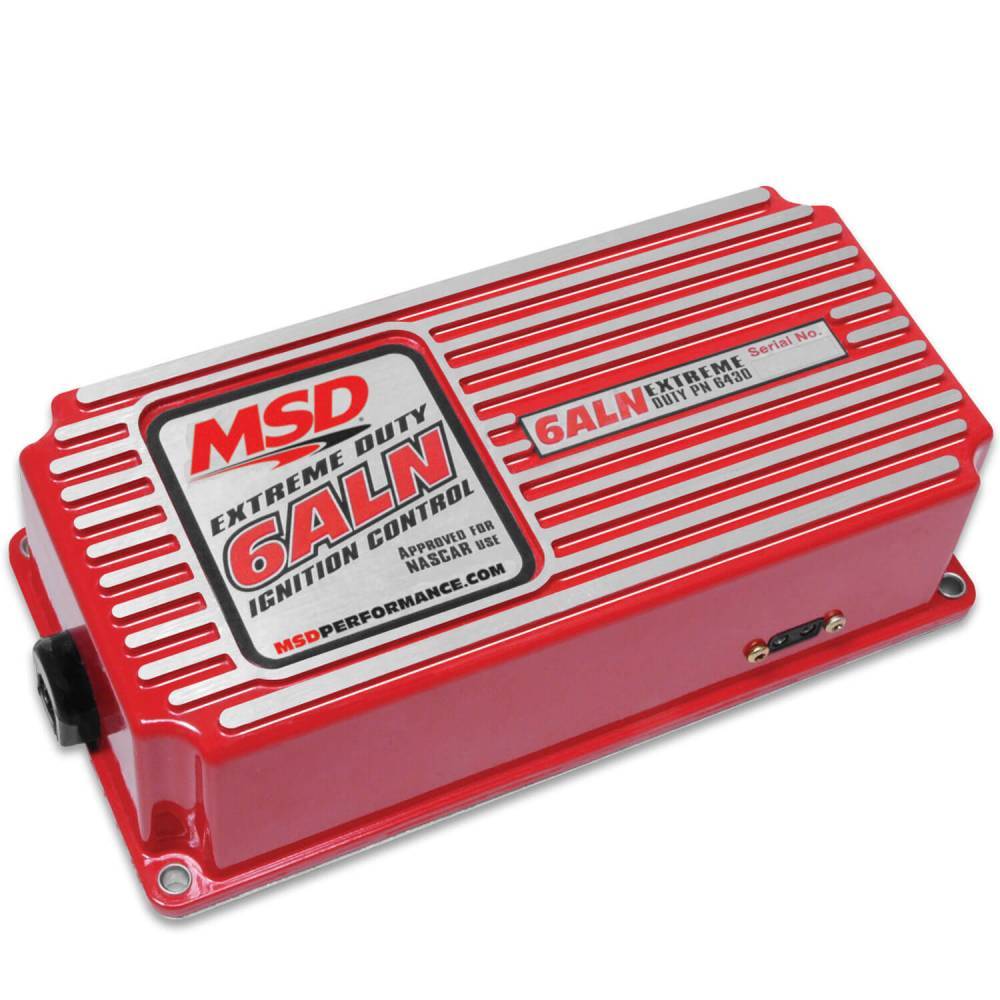

MSD Red 6AL Analog Ignition Box w/ Built in Rev Limiter, Red MSD-6430

MSD- 6430
Extreme duty 6ALN can handle the harshest racing environments, includes a built-in rev limiter.
Pricing: $393.95



Originally designed with NASCAR in mind, the 6ALN is equipped with the mandatory 6-Pin Weathertight connector to meet NASCAR’s ignition wiring rule, 20-6.1. This special connector provides a tight, positive locking connection with individual seals to keep dirt and moisture away from each connection. All of the MSD’s primary wiring meets MIL-86A specifications with special tinned conductors for superior crimps. Inside the strong cast aluminum housing, the multiple sparking CD circuits are encased in a clear two part silicone elastomer for the ultimate in vibration protection. A special clear base plate is also installed for easy tech inspection.

The 6ALN has a built-in Rev Control. These rev controls are adjustable with plug-in modules and will save your engine from over-rev damage caused by
missed shifts or driveline failure.
Multiple spark, capacitive discharge ignition control
Supplied with 3,000, 6,000, 7,000 & 8,000 RPM Modules
Supplied with rubber shock mounts
Programmable for 4, 6, or 8-cylinders by cutting red/blue wire loops
110 millijoules per spark up to 15,000 RPM
470 primary voltage output to coil
Accepts breaker points, amplifier and magnetic pickup trigger inputs
Works on 12 - 18 volt electrical system
Multiple sparks for 20 degrees of crankshaft rotation
Built-in Soft Touch Rev Control is adjustable with RPM Modules
Clear plastic base plate for easy tech inspection
Circuit board is encased in a clear two part silicone elastomer
6-pin Weathertight connector, mandatory for NASCAR use
Designed for circle track racing with NASCAR mandated connectors and clear epoxy potting compound for vibration protection


Shipping Information

  • Item Requires Shipping
  • 3.0 lbs.
