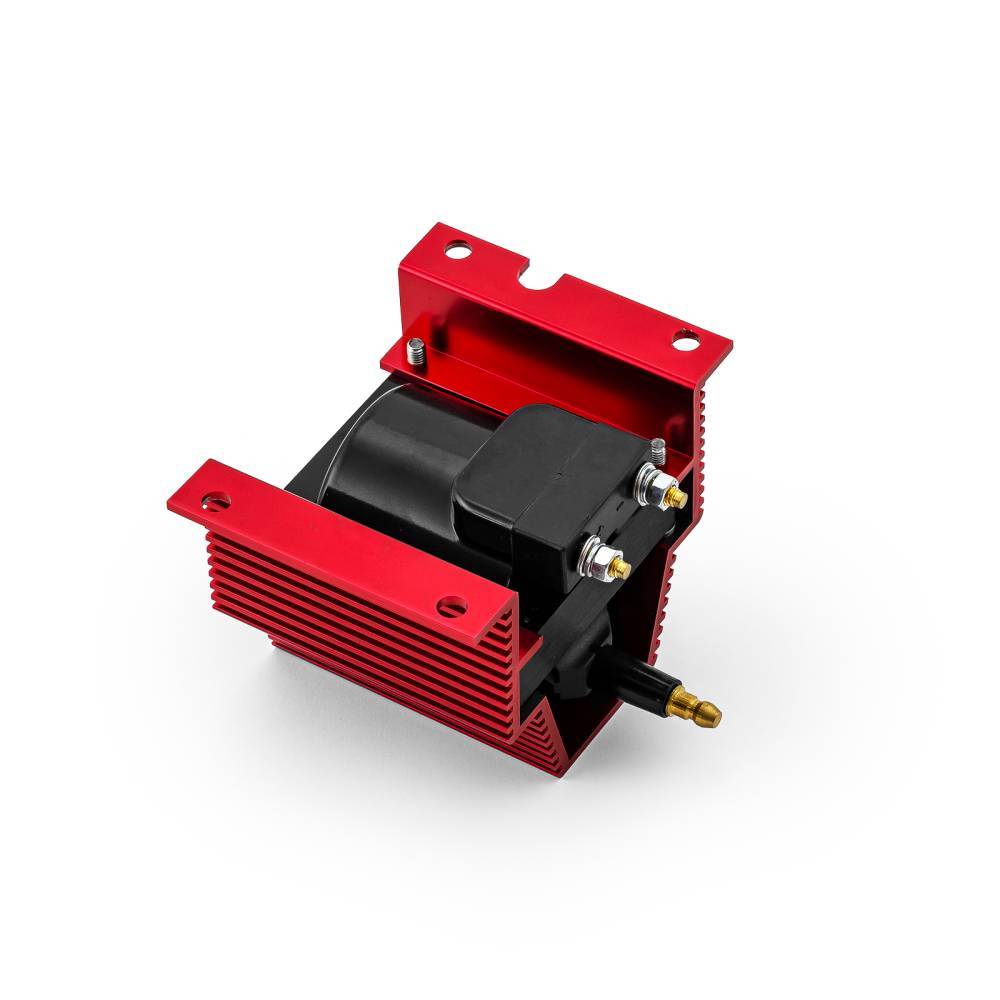

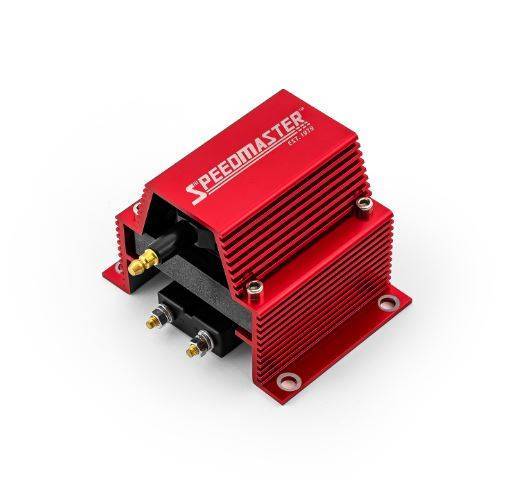

ProComp E-Core Ignition Coil, 60,000V - Red

Additional Images

Your Selected Product

Pricing: $42.95

(0) Reviews: Write first review

Part # SMA-PCE382.1007.02

Universal 12V High Output External Male E-Core Ignition Coil - Red

Description

Part Number:	PCE382.1033
Part Type:	Ignition Coils

Coil Wire Attachment:	Male/HEI
Coil Style:	E-core
Primary Resistance:	0.450 ohms
Coil Internal Construction:	Epoxy
Coil Color:	Anodized Red
Maximum Voltage:	60,000 V
Turns Ratio:	100:1
Secondary Resistance:	3.80K ohms
Inductance:	6.6 mH
Peak Current:	280 mA
Spark Duration:	225 uS
Mounting Bracket Included:	No
Coil Wire Included:	No
Ballast Resistor Included:	No
Coil Shape:	Square
Quantity:	Sold individually.

Description

The Speedmasterª high output technology coil produces up to 70% more spark energy than stock coils with outstanding reliability. This unit is recommended for street, strip, circle track and drag racing. Internally the coil also has large gauge wire windings for maximum spark current and voltage with better heat dissipation at high rpm. High voltage arcing is minimized through screw on connectors and a high tension tower. Ideal for use with capacitive discharge (CD) ignition systems and all of SpeedmasterTM range of High Output Ignitions.
