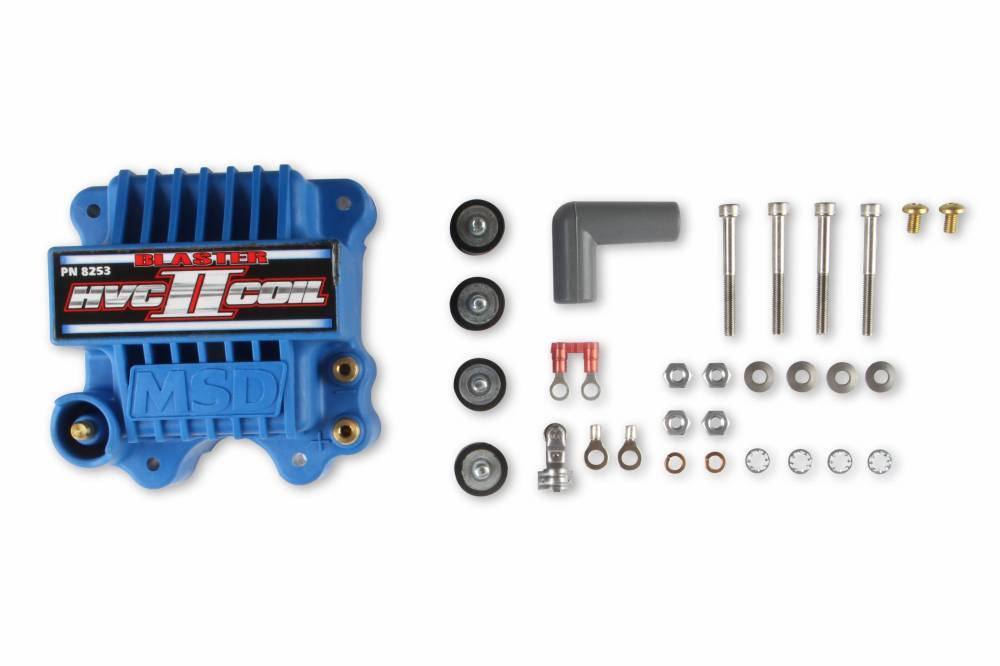

MSD HVC-2 Blaster Coil-44,000V, Blue
MSD-8253
The Blaster HVC coil utilizes an iron U-Core design with a segmented bobbin for improved voltage distribution. The bobbin is molded from a special Dupont Rynite material and wound specifically to produce the most current possible with incredible voltage and lightning quick rise time.
Availability:
Pricing:
$349.95
Description
- Designed for high rpm, long duration applications using MSD 6 Series Ignitions
- New U-core winding design produces more voltage and current
- 100:1 turns ratio and lower primary resistance produce high voltage output
- Windings are encased in fracture resistant compound for vibration resistance
- Dupont Rynite housing with isolated tower and brass primary terminals

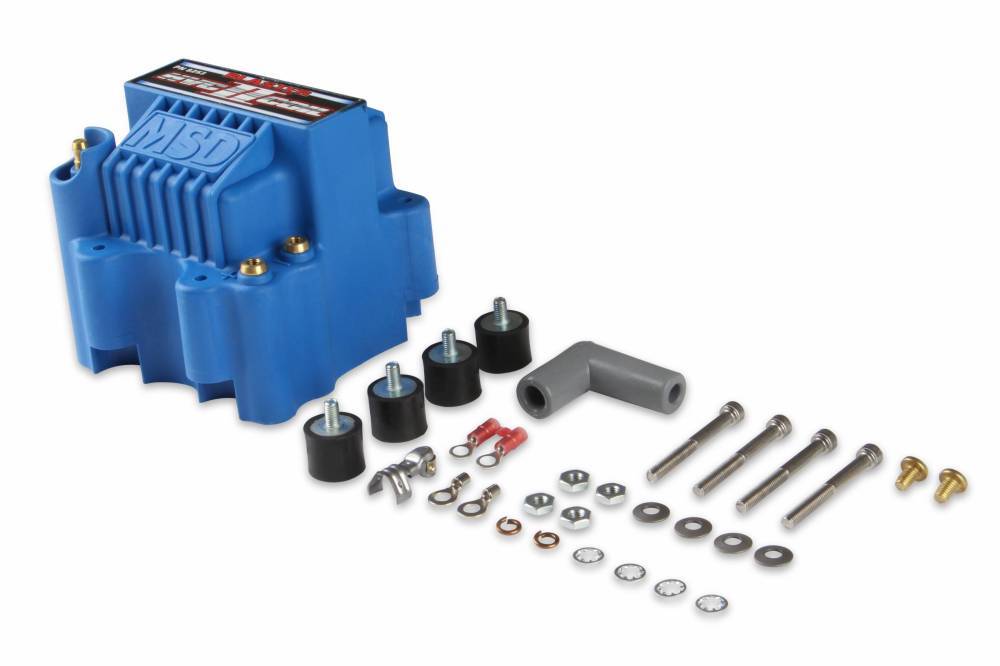

- Supplied with rubber shock mounts
- No CARB Exemption Order Number
SPECS
| Brand | MSD |
|---|---|
| Emission Code | 4 |
| Inductance | 3.5 mH |
| Maximum Voltage | 44,000 Volts |
| Peak Current | 450 mA |
| Primary Resistance | .16 OHMs |
| Product Type | Ignition Coil |
| Secondary Resistance | 630 OHMs |
| Spark duration | 450 uS |
| Turns Ratio | 100:1 |
| Warranty | Limited 1 Year Warranty |
| Weight | 3.75 Lbs |
| UPC | 085132082537 |
| Part Number | 8253 |
