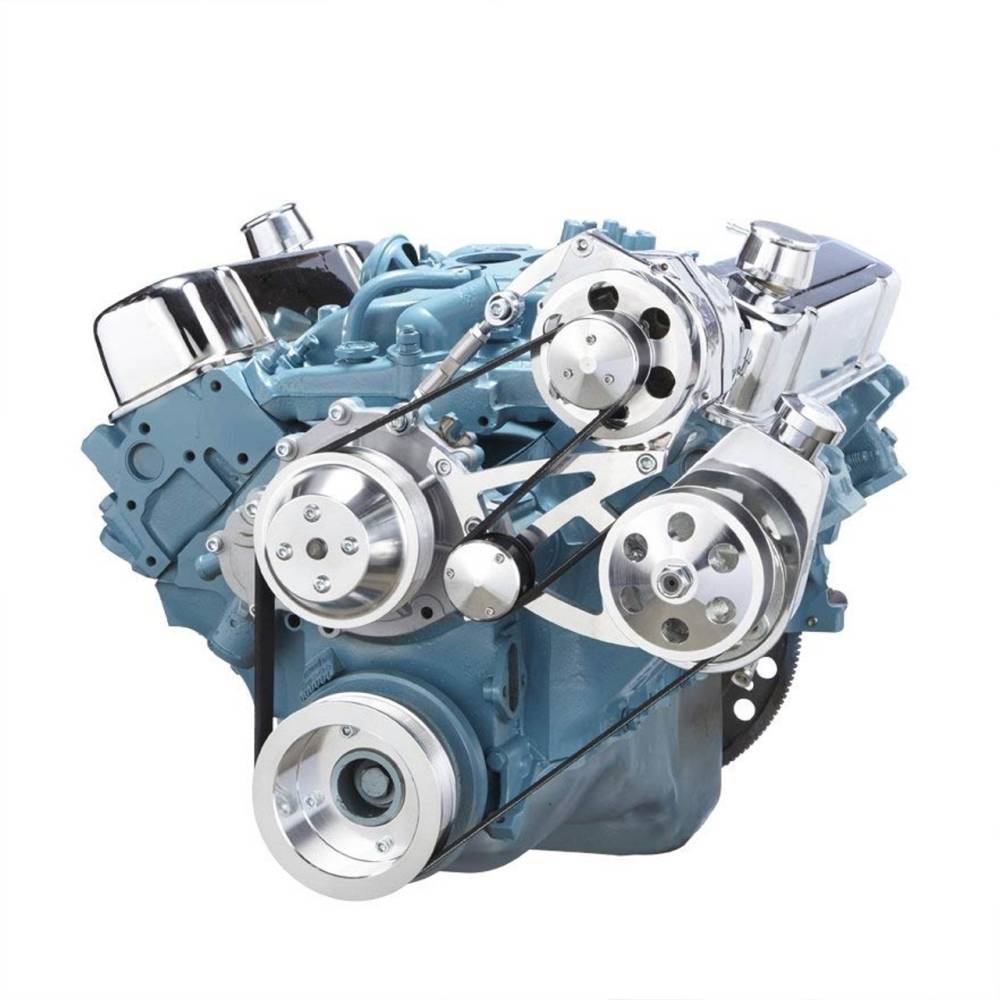

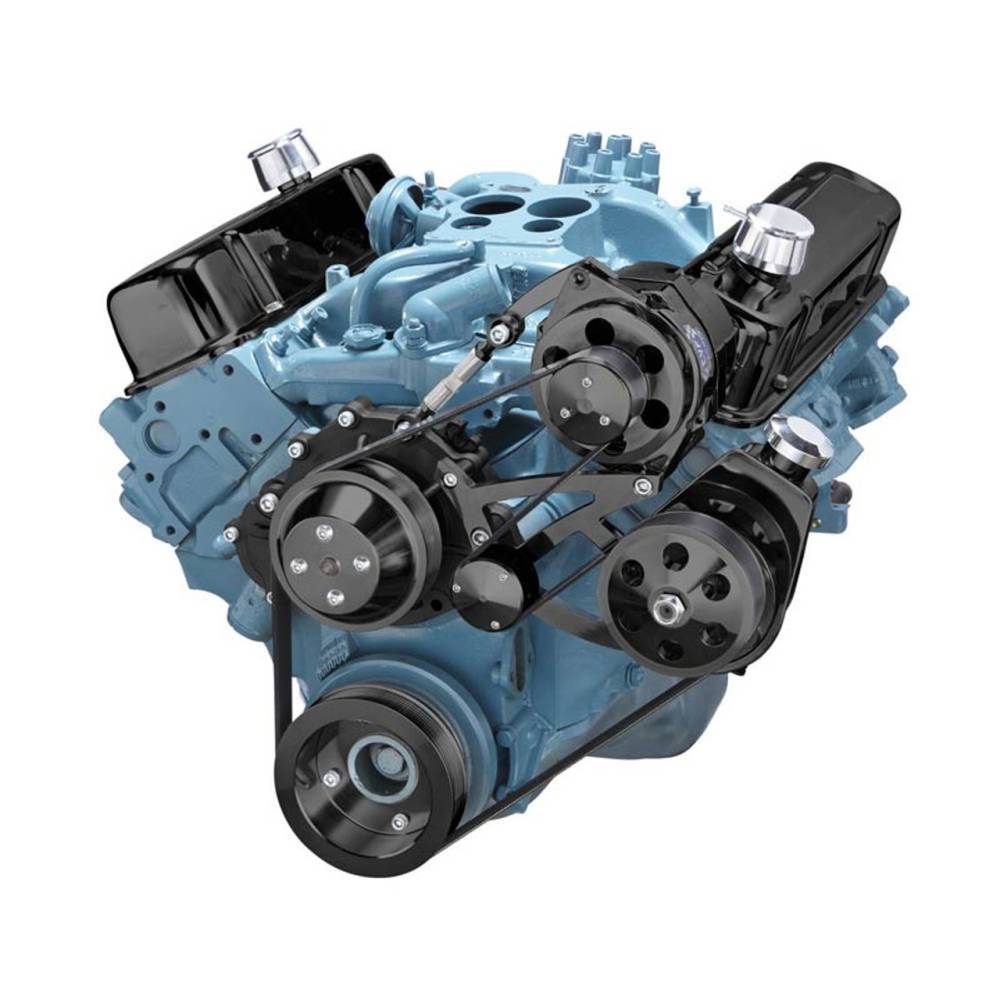

CVF Pontiac Serpentine Conversion Kit- with Power Steering and Alternator Pulleys

Pontiac Serpentine Conversion Kit (350-400, 428 & 455)

Complete 8 Rib Serpentine system for the Pontiac engines with alternator and power steering.

KIT INCLUDES:

• 1 Belt Water Pump Pulley
• 1 Belt Crank Pulley
• 1 Belt Alternator Pulley
• 1 Belt Keyway Power Steering Pulley
• Idler Pulley
• Power Steering / Alternator Bracket
• ALTFAN - Universal alternator fan
• Optional 100 AMP Alternator (140 upgrade option)
• 8 Rib Premium Belt (included)
• Optional Saginaw P Series Power Steering Pump, 5/8" Keyway Shaft

NOTES:

• Requires 4 bolt pattern on Harmonic Balancer and 11 Bolt water pump that is 4.5" tall
• Both GM and Pontiac Reservoir Orientation will Work.

PONTIAC V8 ENGINES (350 - 400, 428 & 455)

• 1969+ Pontiac Passenger Cars

Generally fits the following models with original 350, 400, 428 & 455 engines installed. Note: 1969 was a transition year and you need to ensure that you have the taller 4.5" water pump.
