Butler/Comp Hi-Torq Street Performance Billet Roller Cam Master Kit (HR) 264/270, 212/218, .487/.495, Choose Lobe Separation

(0) Reviews: Write first review

SKU: BPI-K-BP800X

Butler valvetrain master kit for hydraulic roller conversion or upgrade

Pricing: $1,599.95

Customize Your Item

Choose Your Head

- Choose Your Head -

* required

Choose Retainer Option

- Choose Retainer Option -

* required

Choose Cam Install Option

- Choose Cam Install Option -

* required

Choose Break in Oil Option

- Choose Break in Oil Option -

* required

Cam Lobe Separation/ Idle Qualit

- Cam Lobe Separation/ Idle Qualit -

* required

We recommend a Polymer Gear on all Hyd. Roller Applications. 0.491 (Use with Factory GM HEI / Points & Mallory / Mallory Must Be Drilled for Larger Dia Pin), .500, for MSD, Pertronix, FAST, and Holley Dist Only

Choose your Polymer Distr. Gear

- Choose your Polymer Distr. Gear -

* required

Choose Your Lifter Set

- Choose Your Lifter Set -

* required

Choose your Rocker Arms

- Choose your Rocker Arms -

* required

Choose Your Timing Set

- Choose Your Timing Set -

* required

Aftermarket Valley pans or modifications of factor valley pan will be necessary when converting to Hyd Roller due to clearance issues

Choose Valley Pan Option

- Choose Valley Pan Option -

* required

Qty:

Free Shipping!

Description

(HR) 264/270, 212/218, .487/.495 w/1.5 rockers, .536/.544 with 1.65 ratio rockers, Choose Lobe Separation Camshaft

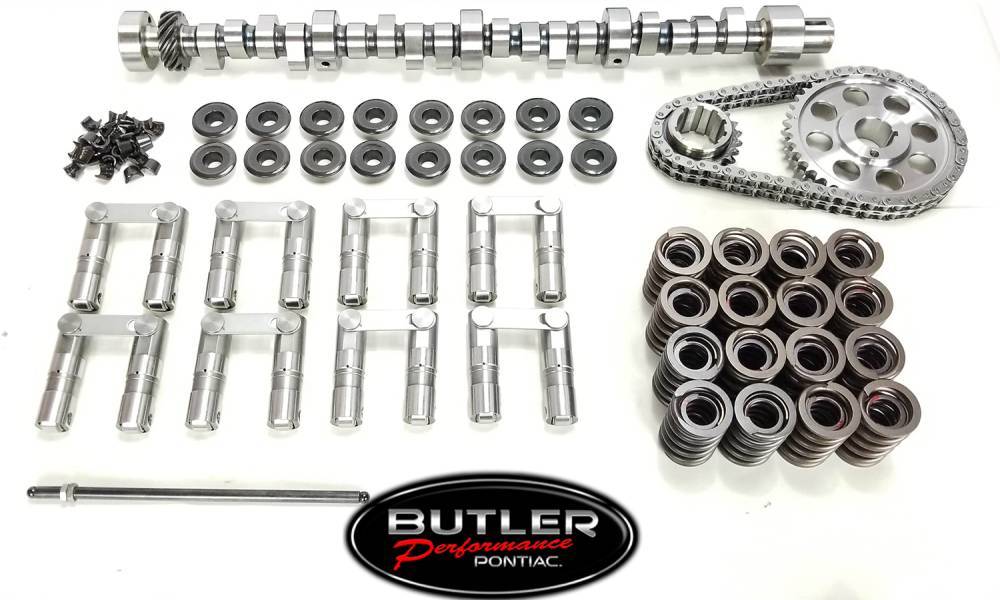

Butler custom cam master kits are designed and tested kits built with the parts we think are best for the application. Each kit has the correct cam/lifter/and spring combination with everything you need to perform a top end performance upgrade without guessing if it will work.

Choice of Hyd. roller lifters

o Morel 5884R
o Johnson 2112-OPR

Timing Set: Pontiac Pro Billet Timing Set
o Billet Gears, 9 Keyway Crank Sprocket w/ Seamed Chain **Hone to fit if needed**

BPI Hydraulic Roller Spring (Cast Iron D-Port)
o Type Dual With Damper O.D. Outer: 1.465" I.D. Outer: 1.091" I.D. Inner: .807" Coil Bind: .950" Seat Load: 140@1.600" Open Load: 350@1.100" Rate (lbs/in): 375 Valve Springs

Valve Springs: EDL-5845 (Cast Iron SD/RAIV and Edelbrock Heads)
o 1.460 in. O.D., 1.200 in. Coil Bind Height

Retainers:
o 10 Degree Chromoly Retainers- For 1.437''-1.500" Diameter Springs

Also includes a pushrod length checking tool for accurate push rod selection and matching locks and valve stem seals

**Stock valley pan will not allow clearance for tie bar on hyd roller lifters. See TPP-0421 or BFA fabricated valley pans.**

Choose Idle Quality:

Milder 114 Lobe Separation- Smoother, More Vacuum- BP8004SP
Performance 112 Lobe Separation- Medium Choppiness- BP8006SP
More Aggressive 110 Lobe Separation- Rougher Style Choppy Idle- BP8008SP

What Is Lobe-Separation Angle? LSA is the distance from the centerline of the intake lobe to the centerline of exhaust lobe.

Tighter lobe separation results in a rougher idle and less idle manifold vacuum but delivers more midrange and peak power. Wider lobe separation resulted in a higher top-end and makes more vacuum but makes less peak power with a less aggressive idle.
