Carbureted Adjustable Bypass Fuel Pressure Regulator Kit 5-10 psi

Additional Images

Your Selected Product

Pricing: $149.95

Qty:

Need Assistance?

We are here to help. Click here to email us with questions about this product

Ask Butler>

(0) Reviews: Write first review
  • TAN-BYP7911-KIT
  • TAN-BYP7911-KIT
    We have packaged this regulator along with the ORB to -6AN adapter fittings needed to run -6AN fuel line. Also included in this kit is the plug so the regulator can be plumbed before or after the engine.

    Description

      • Adjustable pressure range of 5-10 PSI
      • -10 ORB Inlet and Outlet
      • -6 ORB Return
      • 180 Gallons Per Hour
      • 1/8" NPT Gauge Port
      • Vacuum Boost Port with 1:1 Boost/Vacuum Rise Ratio
      • Black Anodized
      • Can be converted to EFI Pressures using kit #BYP7910-REB

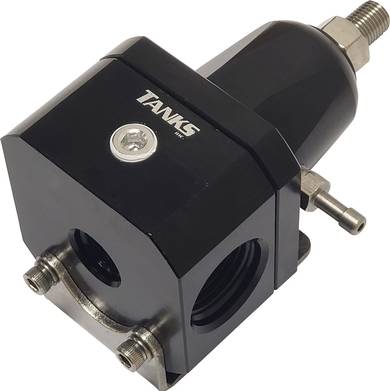

      This billet aluminum fuel pressure regulator  is machined from aircraft quality aluminum.  Featuring a fluorosilicone diaphragm designed to withstand high temperature protection and extended life.  Compatible with all grades of gasoline.

      This regulator is absolutely necessary if you are using one of our GPA or PA fuel pump assemblies with a carbureted engine.

      Click Here for a diagram on how to run fuel lines using this regulator.

    We have packaged this regulator along with the ORB to -6AN adapter fittings needed to run -6AN fuel line.  Also included in this kit is the plug so the regulator can be plumbed before or after the engine.

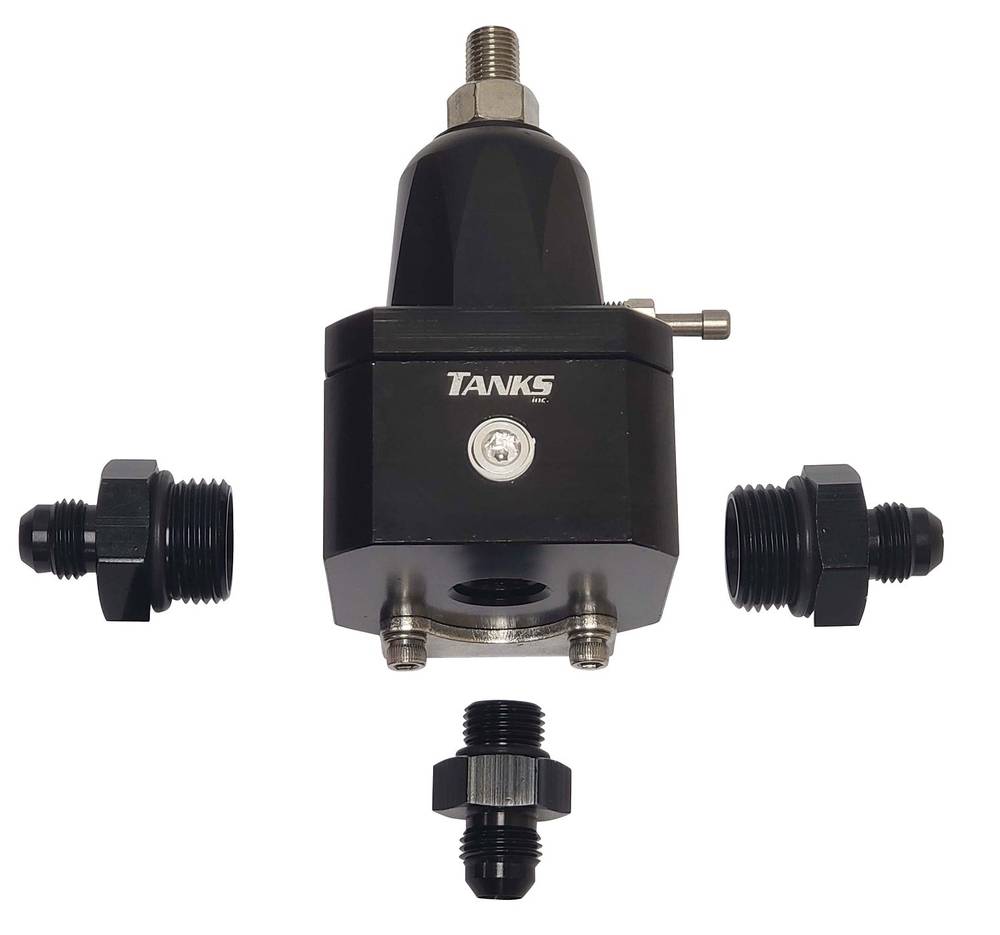

    Kit Includes:

    • BYP7911  Carbureted Bypass Regulator
    • R670840  -6 ORB to -6AN Adapter Fitting
    • R670650 (x2)  -10 ORB to -6AN Adapter Fittings
