March Revolver All-Inclusive Serpentine System, Pontiac, No Power Steering, Black Onyx (MAR-13160-07)
March "Revolver" all-inclusive serpentine drive system for the Pontiac V8 — Black Onyx finish. No Power Steering. Complete bolt-on kit with brackets, pulleys, tensioner and hardware.
Description
Part No. MAR-13160-07 | Finish Black Onyx | Belt 68" | Family Revolver |

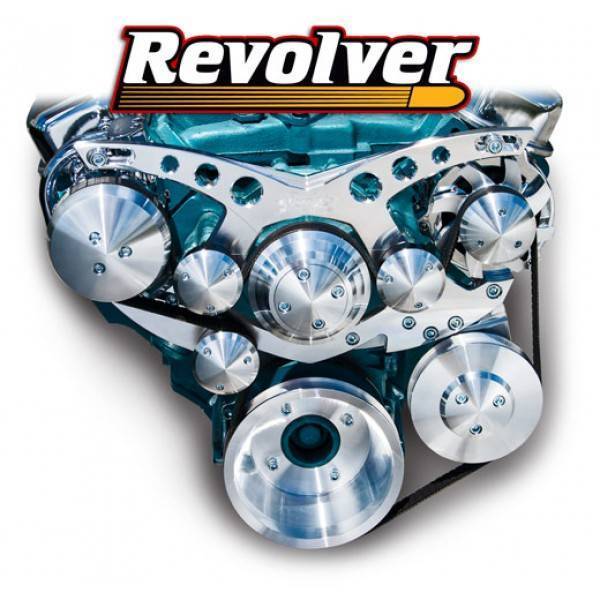

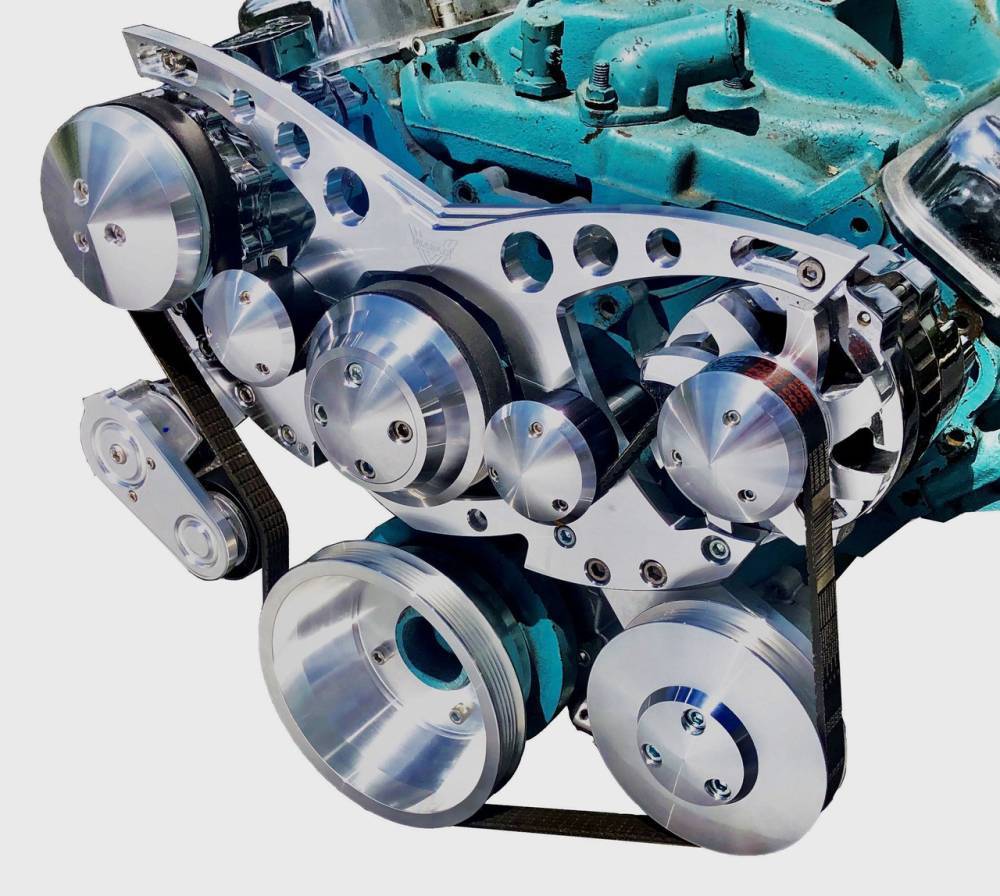

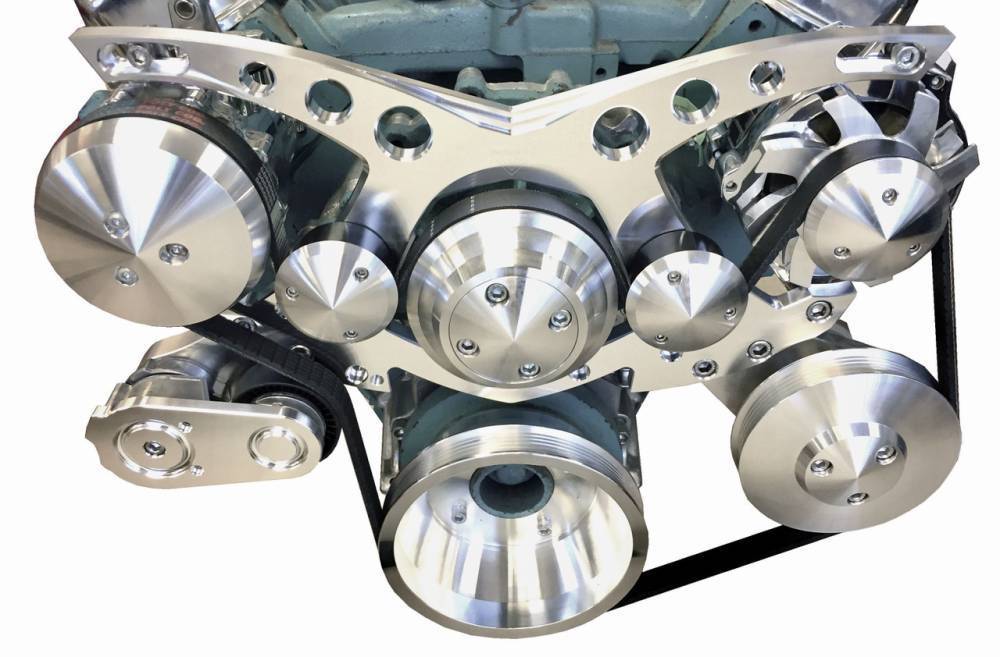

The Revolver is March's answer to picking between form and function. Built exclusively for the Pontiac V-8, it puts the alternator and A/C compressor on a single one-piece bracket and runs three separate idlers to guarantee belt-to-pulley contact and no-slip operation. This is the no-power-steering configuration, and it fits all Pontiac applications — there is no chassis-specific version to sort out.
Every bracket and pulley is CNC-machined from solid 6061-T6 billet aluminum — the same aircraft-grade alloy March uses across its serpentine line — so the drive stays rigid and the belt tracks straight at RPM.
- 140 amp chrome GM CS130 alternator
- Alternator pulley with fan and nose cover
- Chrome Sanden 7176 A/C compressor
- Aluminum water pump, pulley and nose cover
- One-piece alternator & air conditioning bracket
- Crank pulley
- Three idlers for improved belt wrap
- Belt tensioning tool
- All mounting hardware
- Pontiac 326, 350, 389, 400, 421, 428 and 455 c.i. V-8
- 1968 & newer harmonic balancer (4-bolt, without the cast v-groove)
- 1969 & newer 11-bolt timing cover
- Requires an electric fuel pump (sold separately).
- The Revolver includes March's belt tension adjustment tool, so you set tension and stow the tool rather than leaving hardware in the engine bay.
Details
- MAR-13160-07
- MAR-13160-07
- March Performance
- New
Shipping Information
- Item Requires Shipping
- 50.0 lbs.
