Icon Forged Piston and Ring Kit, Pontiac 428/433 (6.800" Rod), 4.000" Str., 4.165" Bore (+.040"), -4.5cc Flat Top, Set/8, UEM-IC-937-KTD-040-8

(0) Reviews: Write first review
UEM-IC-937-KTD-040-8

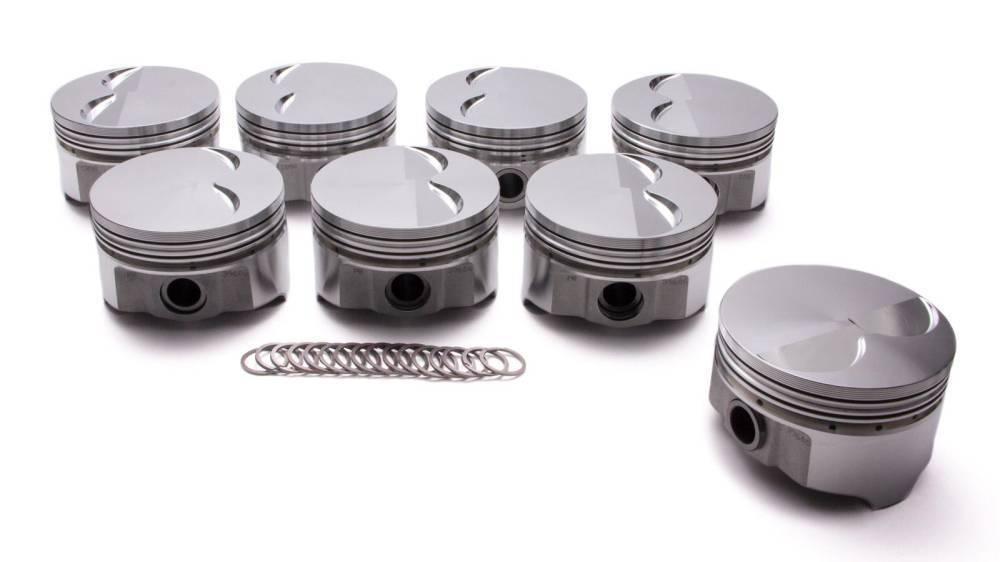

ICON Forged Pistons with Rings — Set of 8
Pontiac 428/433 (6.800" rod)
-4.5cc Flat Top
4.165" Bore (+.040")
4.000" Stroke
1.425" Compression Height
1/16, 1/16, 3/16 Ring Set Included

Availability: Ships in 7-10 Business Days
Pricing: $1,009.18

Qty:

Description

ICON Pistons & Rings — Pontiac 428/433 (6.800" rod)

4.165" Bore (+.040") · 4.000" Stroke · -4.5cc Flat Top · Set of 8 with Rings

ICON pistons are forged 2618-equivalent premium alloy from United Engine & Machine, the same shop that builds Keith Black. They are the value-forged answer for a Pontiac that has outgrown a cast or hypereutectic piston — a healthy hydraulic roller street engine, a bracket car, or any build where detonation and heat are a real possibility.

Specifications

Part NumberUEM-IC-937-KTD-040-8
BrandICON
Material2618-equivalent forged aluminum
ApplicationPontiac 428/433 (6.800" rod)
Oversize+.040"
Finished Bore4.165"
Stroke4.000"
Rod Length6.800"
Compression Height1.425"
OE Deck Height10.240"
CrownFlat Top, -4.5cc valve pockets
Ring Pack1/16, 1/16, 3/16 (included)
QuantitySet of 8 with rings

What You Get

  • Eight ICON forged pistons
  • Matched 1/16, 1/16, 3/16 ring set
  • Wrist pins and locks as supplied by the manufacturer

Before you order: measure your finished bore before buying an oversize. Confirm chamber volume and deck height against your target compression ratio — crown volume alone does not set compression. Opened or installed pistons are not returnable.

Specifications/Information

Part NumberUEM-IC-937-KTD-040-8
BrandICON
Material2618-equivalent forged aluminum
ApplicationPontiac 428/433 (6.800" rod)
Oversize+.040"
Finished Bore4.165"
Stroke4.000"
Rod Length6.800"
Compression Height1.425"
OE Deck Height10.240"
CrownFlat Top, -4.5cc valve pockets
Ring Pack1/16, 1/16, 3/16 (included)
QuantitySet of 8 with rings
