Icon Forged Piston and Ring Kit, Pontiac 461-468 Stroker, 4.250" Str., 4.200" Bore (+.075"), -4.3cc Flat Top, Set/8, UEM-IC-941-KTD-075-8

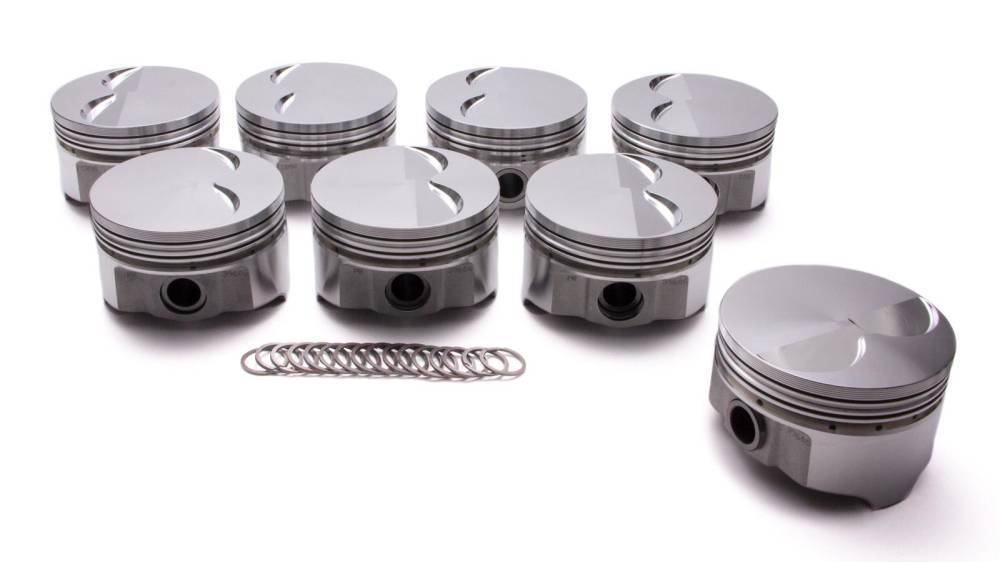

ICON Forged Pistons with Rings — Set of 8
Pontiac 461-468 Stroker
-4.3cc Flat Top
4.200" Bore (+.075")
4.250" Stroke
1.300" Compression Height
.990" x 3.000" Pins Included
1/16, 1/16, 3/16 Ring Set Included
Description
ICON Pistons & Rings — Pontiac 461-468 Stroker
4.200" Bore (+.075") · 4.250" Stroke · -4.3cc Flat Top · Set of 8 with Rings
ICON pistons are forged 2618-equivalent premium alloy from United Engine & Machine, the same shop that builds Keith Black. They are the value-forged answer for a Pontiac that has outgrown a cast or hypereutectic piston — a healthy hydraulic roller street engine, a bracket car, or any build where detonation and heat are a real possibility.
Specifications
| Part Number | UEM-IC-941-KTD-075-8 |
|---|---|
| Brand | ICON |
| Material | 2618-equivalent forged aluminum |
| Application | Pontiac 461-468 Stroker |
| Oversize | +.075" |
| Finished Bore | 4.200" |
| Stroke | 4.250" |
| Rod Length | 6.800" |
| Compression Height | 1.300" |
| OE Deck Height | 10.240" |
| Crown | Flat Top, -4.3cc valve pockets |
| Pin Diameter | .990" |
| Pin Length | 3.000" |
| Pin Type | Press-fit or floating, centered |
| Lock Ring | PRG110-3 |
| Top Land | .250" |
| Intake Valve Relief (depth / dia.) | .210" / 2.230" |
| Exhaust Valve Relief (depth / dia.) | .206" / 1.780" |
| Compression Ratio (chamber cc - ratio) | 72cc-12.2, 87cc-10.4 |
| Ring Pack | 1/16, 1/16, 3/16 (included) |
| Quantity | Set of 8 with rings |
What You Get
- Eight ICON forged pistons
- Matched 1/16, 1/16, 3/16 ring set
- .990" x 3.000" wrist pins and locks
- Oil rail supports
Fitment & Installation Notes
- Uses the .990" (big-block Chevy) wrist pin diameter.
- Standard bore is based on 4.125"; +.030" nets a 4.155" bore.
Before you order: measure your finished bore before buying an oversize. Confirm chamber volume and deck height against your target compression ratio — crown volume alone does not set compression. Opened or installed pistons are not returnable.
Specifications/Information
| Part Number | UEM-IC-941-KTD-075-8 |
|---|---|
| Brand | ICON |
| Material | 2618-equivalent forged aluminum |
| Application | Pontiac 461-468 Stroker |
| Oversize | +.075" |
| Finished Bore | 4.200" |
| Stroke | 4.250" |
| Rod Length | 6.800" |
| Compression Height | 1.300" |
| OE Deck Height | 10.240" |
| Crown | Flat Top, -4.3cc valve pockets |
| Pin Diameter | .990" |
| Pin Length | 3.000" |
| Pin Type | Press-fit or floating, centered |
| Lock Ring | PRG110-3 |
| Top Land | .250" |
| Intake Valve Relief (depth / dia.) | .210" / 2.230" |
| Exhaust Valve Relief (depth / dia.) | .206" / 1.780" |
| Compression Ratio (chamber cc - ratio) | 72cc-12.2, 87cc-10.4 |
| Ring Pack | 1/16, 1/16, 3/16 (included) |
| Quantity | Set of 8 with rings |
Notes
- Uses the .990" (big-block Chevy) wrist pin diameter.
- Standard bore is based on 4.125"; +.030" nets a 4.155" bore.
