Icon Forged Piston and Ring Kit, Pontiac 400 (or 389 +.058"), 3.750" Str., 4.150" Bore (+.030"), -10.8cc Flat Top, Set/8, UEM-IC-9946-KTD-030-8
ICON Forged Pistons with Rings — Set of 8
Pontiac 400 (or 389 +.058")
-10.8cc Flat Top
4.150" Bore (+.030")
3.750" Stroke
1.714" Compression Height
.980" x 3.000" Pins Included
5/64, 5/64, 3/16 Ring Set Included
Description
ICON Pistons & Rings — Pontiac 400 (or 389 +.058")
4.150" Bore (+.030") · 3.750" Stroke · -10.8cc Flat Top · Set of 8 with Rings
ICON pistons are forged 4032 alloy (FHR line) from United Engine & Machine, the same shop that builds Keith Black. They are the value-forged answer for a Pontiac that has outgrown a cast or hypereutectic piston — a healthy hydraulic roller street engine, a bracket car, or any build where detonation and heat are a real possibility.
Specifications
| Part Number | UEM-IC-9946-KTD-030-8 |
|---|---|
| Brand | ICON |
| Material | 4032 forged aluminum (ICON FHR) |
| Application | Pontiac 400 (or 389 +.058") |
| Oversize | +.030" |
| Finished Bore | 4.150" |
| Stroke | 3.750" |
| Rod Length | 6.625" |
| Compression Height | 1.714" |
| OE Deck Height | 10.240" |
| Crown | Flat Top (FHR), -10.8cc dual valve pockets |
| Pin Diameter | .980" |
| Pin Length | 3.000" |
| Pin Type | Press-fit or floating, offset |
| Lock Ring | PRH107-3 |
| Top Land | .270" |
| Compression Ratio (chamber cc - ratio) | 72cc-10.1, 87cc-8.8, 96cc-8.2 |
| Ring Pack | 5/64, 5/64, 3/16 (included) |
| Quantity | Set of 8 with rings |
What You Get

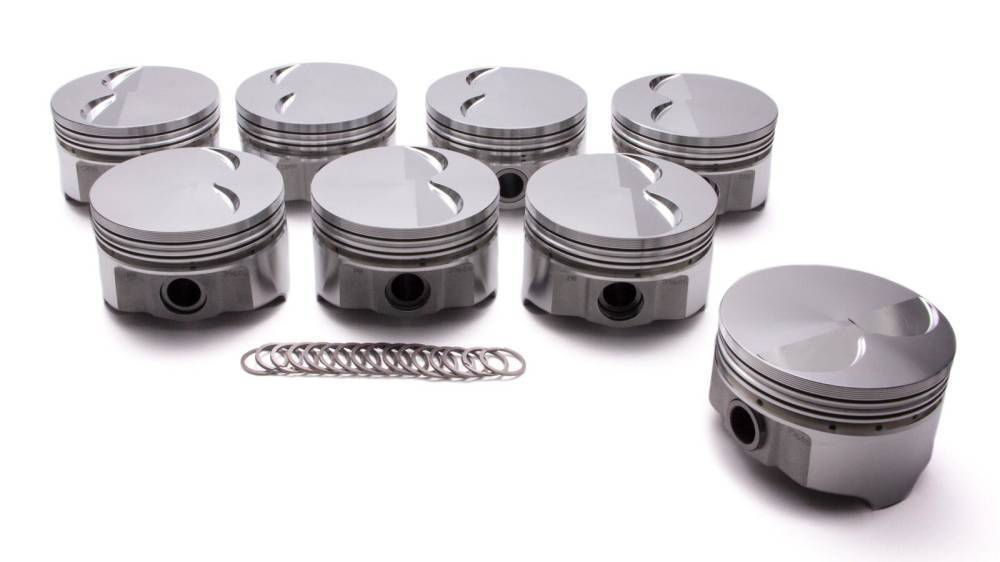

- Eight ICON forged pistons
- Matched 5/64, 5/64, 3/16 ring set
- .980" x 3.000" wrist pins and locks
Fitment & Installation Notes
- Dual valve pockets clear both '66 and earlier 389/421 22-degree heads and '67 and later 14-degree heads.
- Fits a 400 at standard bore or a 389 bored .058" over.
- Offset pin.
Before you order: measure your finished bore before buying an oversize. Confirm chamber volume and deck height against your target compression ratio — crown volume alone does not set compression. Opened or installed pistons are not returnable.
Specifications/Information
| Part Number | UEM-IC-9946-KTD-030-8 |
|---|---|
| Brand | ICON |
| Material | 4032 forged aluminum (ICON FHR) |
| Application | Pontiac 400 (or 389 +.058") |
| Oversize | +.030" |
| Finished Bore | 4.150" |
| Stroke | 3.750" |
| Rod Length | 6.625" |
| Compression Height | 1.714" |
| OE Deck Height | 10.240" |
| Crown | Flat Top (FHR), -10.8cc dual valve pockets |
| Pin Diameter | .980" |
| Pin Length | 3.000" |
| Pin Type | Press-fit or floating, offset |
| Lock Ring | PRH107-3 |
| Top Land | .270" |
| Compression Ratio (chamber cc - ratio) | 72cc-10.1, 87cc-8.8, 96cc-8.2 |
| Ring Pack | 5/64, 5/64, 3/16 (included) |
| Quantity | Set of 8 with rings |
Notes
- Dual valve pockets clear both '66 and earlier 389/421 22-degree heads and '67 and later 14-degree heads.
- Fits a 400 at standard bore or a 389 bored .058" over.
- Offset pin.
