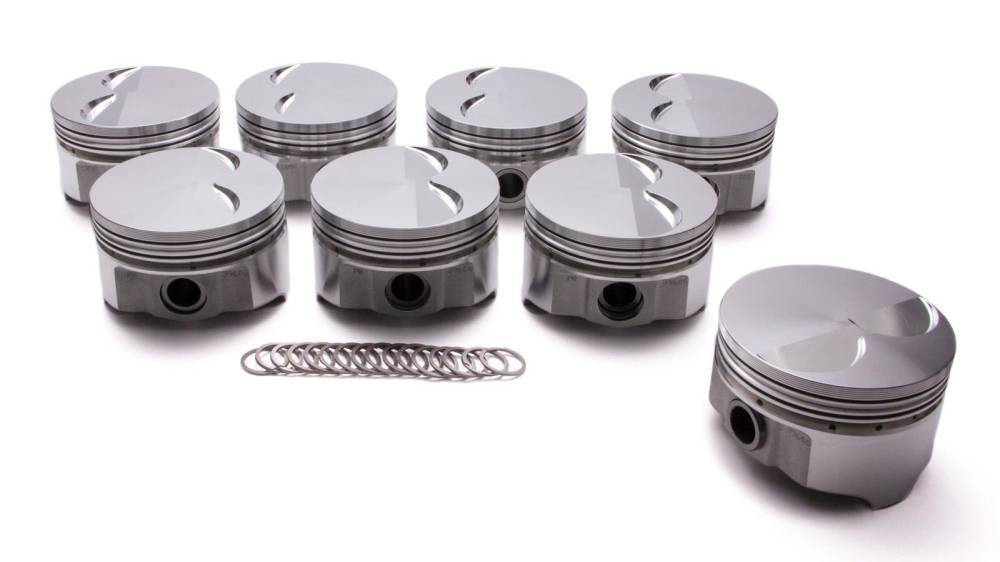

Icon Forged Piston and Ring Kit, Pontiac 455, 4.210" Str., 4.211" Bore (+.060"), -10.8cc Flat Top, Set/8, UEM-IC-9960-KTD-060-8

(0) Reviews: Write first review
UEM-IC-9960-KTD-060-8

ICON Forged Pistons with Rings — Set of 8
Pontiac 455
-10.8cc Flat Top
4.211" Bore (+.060")
4.210" Stroke
1.490" Compression Height
.980" x 3.000" Pins Included
5/64, 1/16, 3/16 Ring Set Included

Availability: Ships in 7-10 Business Days
Pricing: $815.01

Qty:

Description

ICON Pistons & Rings — Pontiac 455

4.211" Bore (+.060") · 4.210" Stroke · -10.8cc Flat Top · Set of 8 with Rings

ICON pistons are forged 4032 alloy (FHR line) from United Engine & Machine, the same shop that builds Keith Black. They are the value-forged answer for a Pontiac that has outgrown a cast or hypereutectic piston — a healthy hydraulic roller street engine, a bracket car, or any build where detonation and heat are a real possibility.

Specifications

Part NumberUEM-IC-9960-KTD-060-8
BrandICON
Material4032 forged aluminum (ICON FHR)
ApplicationPontiac 455
Oversize+.060"
Finished Bore4.211"
Stroke4.210"
Rod Length6.625"
Compression Height1.490"
OE Deck Height10.240"
CrownFlat Top (FHR, 4 valve pockets), -10.8cc
Pin Diameter.980"
Pin Length3.000"
Lock RingPRH107-3
Top Land.270"
Ring Pack5/64, 1/16, 3/16 (included)
QuantitySet of 8 with rings

What You Get

  • Eight ICON forged pistons
  • Matched 5/64, 1/16, 3/16 ring set
  • .980" x 3.000" wrist pins and locks

Fitment & Installation Notes

  • Offset pin. Works with 14-degree and 20-degree heads.

Before you order: measure your finished bore before buying an oversize. Confirm chamber volume and deck height against your target compression ratio — crown volume alone does not set compression. Opened or installed pistons are not returnable.

Specifications/Information

Part NumberUEM-IC-9960-KTD-060-8
BrandICON
Material4032 forged aluminum (ICON FHR)
ApplicationPontiac 455
Oversize+.060"
Finished Bore4.211"
Stroke4.210"
Rod Length6.625"
Compression Height1.490"
OE Deck Height10.240"
CrownFlat Top (FHR, 4 valve pockets), -10.8cc
Pin Diameter.980"
Pin Length3.000"
Lock RingPRH107-3
Top Land.270"
Ring Pack5/64, 1/16, 3/16 (included)
QuantitySet of 8 with rings

Notes

  • Offset pin. Works with 14-degree and 20-degree heads.
