Keith Black Hypereutectic Piston and Ring Kit, Pontiac 400, 3.750" Str., 4.150" Bore (+.030"), -17cc Dish, Set/8, UEM-KB346KTM-030
Keith Black Hypereutectic Pistons with Rings — Set of 8
Pontiac 400
-17cc D-Cup Dish
4.150" Bore (+.030")
3.750" Stroke
1.710" Compression Height
.980" x 3.000" Pins Included
5/64, 5/64, 3/16 Ring Set Included
Description
Keith Black Pistons & Rings — Pontiac 400
4.150" Bore (+.030") · 3.750" Stroke · -17cc D-Cup Dish · Set of 8 with Rings

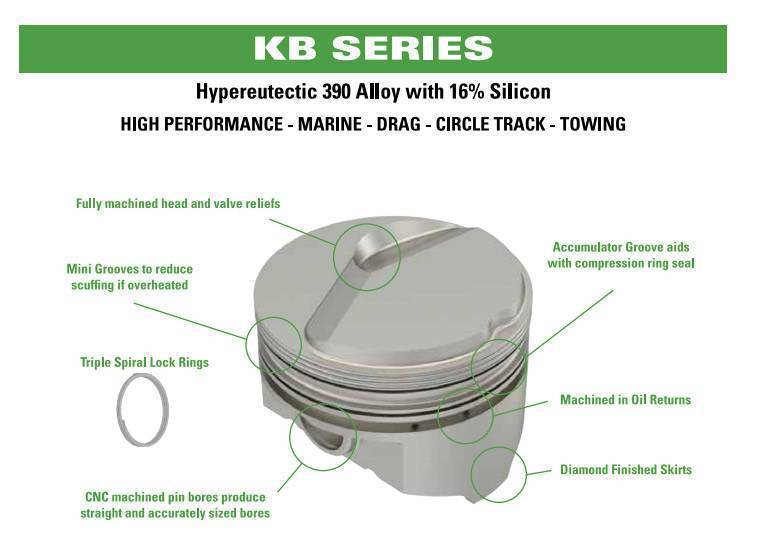

Keith Black hypereutectic pistons are the long-running standard for a stock-to-mild Pontiac rebuild. The high-silicon casting runs tighter piston-to-wall clearance than a forging, so it is quiet cold, seals well, and holds oil control for a long street life. It is not a power-adder piston — but for a numbers-matching rebuild or a mild cam and headers combination, it is the right part at the right money.

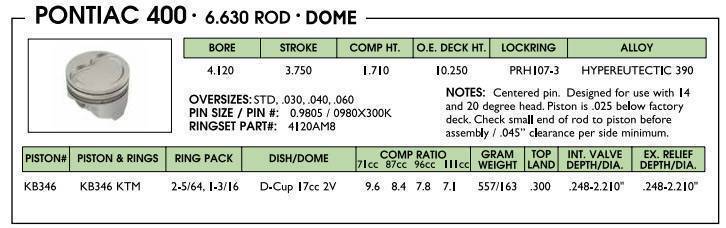

Specifications
| Part Number | UEM-KB346KTM-030 |
|---|---|
| Brand | Keith Black |
| Material | Hypereutectic cast aluminum (390 alloy) |
| Application | Pontiac 400 |
| Oversize | +.030" |
| Finished Bore | 4.150" |
| Stroke | 3.750" |
| Rod Length | 6.625" |
| Compression Height | 1.710" |
| OE Deck Height | 10.240" |
| Crown | D-Cup Dish, -17cc |
| Pin Diameter | .980" |
| Pin Length | 3.000" |
| Pin Type | Press-fit or floating, centered |
| Lock Ring | PRH107-3 |
| Top Land | .300" |
| Intake Valve Relief (depth / dia.) | .248" / 2.210" |
| Exhaust Valve Relief (depth / dia.) | .248" / 2.210" |
| Compression Ratio (chamber cc - ratio) | 71cc-9.6, 87cc-8.4, 96cc-7.8, 111cc-7.1 |
| Ring Pack | 5/64, 5/64, 3/16 (included) |
| Quantity | Set of 8 with rings |
What You Get
- Eight Keith Black hypereutectic pistons
- Matched 5/64, 5/64, 3/16 ring set
- .980" x 3.000" wrist pins and locks
Fitment & Installation Notes
- For use with 14-degree or 20-degree heads.
- Piston sits .025" below the factory deck.
- Check rod small end to piston before assembly: .045" clearance per side minimum.
- Keith Black hypereutectic pistons require a much wider top ring end gap than traditional forged pistons. The KB spec is 0.0065" per inch of bore for a street engine.
Before you order: measure your finished bore before buying an oversize. Confirm chamber volume and deck height against your target compression ratio — crown volume alone does not set compression. Opened or installed pistons are not returnable.
Specifications/Information
| Part Number | UEM-KB346KTM-030 |
|---|---|
| Brand | Keith Black |
| Material | Hypereutectic cast aluminum (390 alloy) |
| Application | Pontiac 400 |
| Oversize | +.030" |
| Finished Bore | 4.150" |
| Stroke | 3.750" |
| Rod Length | 6.625" |
| Compression Height | 1.710" |
| OE Deck Height | 10.240" |
| Crown | D-Cup Dish, -17cc |
| Pin Diameter | .980" |
| Pin Length | 3.000" |
| Pin Type | Press-fit or floating, centered |
| Lock Ring | PRH107-3 |
| Top Land | .300" |
| Intake Valve Relief (depth / dia.) | .248" / 2.210" |
| Exhaust Valve Relief (depth / dia.) | .248" / 2.210" |
| Compression Ratio (chamber cc - ratio) | 71cc-9.6, 87cc-8.4, 96cc-7.8, 111cc-7.1 |
| Ring Pack | 5/64, 5/64, 3/16 (included) |
| Quantity | Set of 8 with rings |
Notes
- For use with 14-degree or 20-degree heads.
- Piston sits .025" below the factory deck.
- Check rod small end to piston before assembly: .045" clearance per side minimum.
- Keith Black hypereutectic pistons require a much wider top ring end gap than traditional forged pistons. The KB spec is 0.0065" per inch of bore for a street engine.
Details
- UEM-KB346KTM-030
- UEM-KB346KTM-030
- Keith Black
- Ships in 7-10 Business Days
- New
