Pontiac Flywheel Balancing: Stock (External) vs. Internal Balance

When building or restoring a traditional Pontiac V8 (from the 275-horsepower 389 to a high-torque 455), selecting the correct flywheel is critical to the longevity of your engine. A minor oversight in engine balance can lead to severe vibrations, destroyed main bearings, and catastrophic engine failure.

Using technical insights and components from Pontiac specialists Butler Performance, this brief breaks down the vital differences between a stock-balanced (externally balanced) and an internally balanced Pontiac flywheel.

1. Stock Balance (Factory External Balance)

From the factory, traditional Pontiac V8 engines (326, 350, 389, 400, 428, and 455) were externally balanced on the rear of the engine. Because the factory crankshafts and heavy cast-iron pistons created an inherent imbalance at the back of the assembly, Pontiac engineers counteracted this by adding a specific weight directly to the flywheel or flexplate.

• How to Identify It: A stock-spec Pontiac flywheel features a distinct, cast-in or bolt-on counterweight on the engine side of the wheel. It also features a register bore specifically sized for factory crankshaft flanges. Some may have a cavity milled into them which also offsets the weight distribution.

• When to Use It: You must use a stock-balanced flywheel if you are running a factory, un-cleared crankshaft with stock-weight pistons and connecting rods.

• The Butler Performance Angle: If you are doing a factory-style restoration or a mild refresh using standard replacement parts, Butler Performance supplies stock-spec steel flywheels that replicate this factory external offset precisely.

2. Internal Balance

Modern performance builds often move away from the factory configuration. An internally balanced engine means that the entire rotating assembly—the crankshaft, connecting rods, and pistons—is balanced completely on its own, inside the oil pan. No external weights are needed on the harmonic balancer at the front or the flywheel at the rear.

• How to Identify It: An internally balanced flywheel is completely neutral. It has no offset weights or counterweights and is perfectly symmetrical.

• When to Use It: This is mandatory when upgrading to an aftermarket forged rotating assembly or a modern stroker kit. Because aftermarket components (like forged H-beam rods and lightweight forged pistons) drastically alter the bobweight of the engine, the assembly must be neutrally balanced on a balancing machine.

• The Butler Performance Angle: If you are building a Butler Performance Stroker Kit (such as turning a 400 block into a 461ci powerhouse), these kits are typically designed to be internally balanced. Consequently, Butler pairs these setups with high-quality, SFI-certified neutral-balance steel or aluminum flywheels.

Check for a Counterweight (The Dead Giveaway)

Because Pontiac engines were externally balanced from the factory, a stock-balance flywheel must have an off-center weight to correct the engine's natural imbalance.

• Stock Balance (External): Look at the engine side of the flywheel. You will see a distinct, raised, unmachined pad or a heavy wedge-shaped chunk of iron cast directly into the wheel on one side. On some aftermarket stock-replacement steel wheels, this might be a separate weight bolted securely to the back.

• Internal Balance (Neutral): The back of the flywheel will be entirely uniform and smooth all the way around. There are no raised pads, welded blocks, or bolted-on weights.

2. Look for Dynamic Balancing Drill Marks

Don't confuse dynamic factory balancing marks with an external counterweight.

• Internal (Neutral) Flywheels: These are spun at the factory to ensure they are 100% perfectly balanced on their own. To achieve this, the manufacturer might drill small, shallow, round divots out of the outer edge of the wheel to remove tiny fractions of an ounce. If your flywheel is smooth all around but has a couple of these random shallow drill marks on the edge, it is a neutral-balance wheel.

• Stock-Balance Flywheels: These may also have small fine-tuning drill marks, but they will always be accompanied by the large, prominent main counterweight pad.

How can you Identify Stock vs Neutral- Visual Comparison

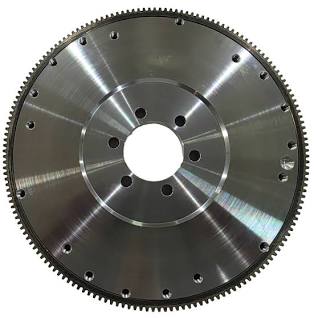

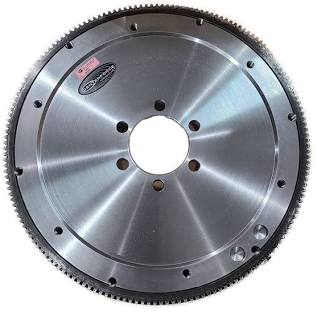

Notice the difference on the backside of these high-quality billet steel pieces offered by Butler Performance:

The Quick "Eye-Ball" Test

Lay the flywheel flat on a table with the clutch friction surface facing down (engine side facing up).

1. Spin your eyes around the outer perimeter of the center crankshaft mounting flange.

2. If the metal thickness and shape look identical no matter where you look, it's Internal/Neutral.

3. If one specific section looks obviously thicker, raised, or has a distinct asymmetrical heavy zone cast into it, it’s Stock/External.

Summary Comparison

Feature	Stock Balance (External)	Internal Balance (Neutral)
Counterweight	Yes (Built-in weight on the backside)	No (Perfectly flat/symmetrical)
Engine Application	Factory original or stock-spec rebuilds	Aftermarket stroker kits & forged assemblies
Vibration Control	Relies on the flywheel weight to balance the crank	Balanced entirely within the crank counterweights
High RPM Safety	Limited by factory specs	Superior; ideal for high-RPM and racing

⚠️ Critical Tech Tip from the Butler Pros

Never mix and match. Putting an internally balanced (neutral) flywheel on a stock factory engine, or putting a stock-weighted flywheel on an internally balanced stroker engine, will cause an immediate, violent engine vibration. Always consult with your machinist or the tech experts at Butler Performance to verify the balance style of your specific rotating assembly before bolting on the flywheel.
