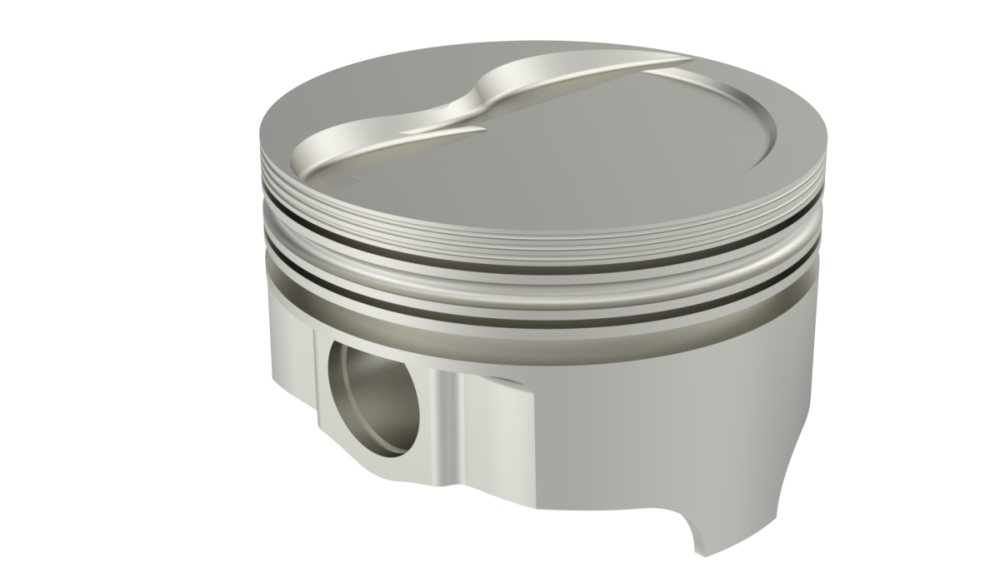

Icon Forged -10cc Dish Pistons, 428, 4.000" Str

UEM-IC-892
-10cc Dish Pistons
D-Shaped Dish
2618 Forged Aluminum
6.625" Rod Length
1/16", 1/16", 3/16" Ring Size
Press-fit or floating
.980 Pin
.030 Over- 4.150" Bore- IC892-030
.040 Over- 4.160" Bore- IC892-040
.060 Over- 4.180" Bore- IC892-060
Set/8
Pricing: $599.95

Customize Your Item

- Choose Your Bore Size -
 * required
- Choose Ring Set Option -
 * required
Qty:

Description

These Icon pistons feature a diamond-machined skirt, head, mini-grooves, pin bore, gas accumulator, ring grooves, and pressure-drilled pin hole oiling. They have a V-rib design for light weight, strength, and maximum piston cooling.

Use OE and Edelbrock style heads. Some stock rods may need to be narrowed and balance pad removed.



Icon Line of Forged Pontiac Pistons by Keith Black use a high quality forging that results in a much lighter piston than the Federal Mogul/TRW. The pin is also quite a bit lighter than the TRW. These pistons come with pin locks so they can be used with BUSHED or PRESS-FIT rods.

Image may not represent actual product.

Specifications/Information

Specifications
Stock Bore: 4.120 Rod Length: 6.630 Pin Diameter: 0.9805
Stroke: 4.000 Comp. Ht: 1.595 Top Land: 0.250
Minimum Clearance   OE Deck Height: 10.250 Weight Piston/Pin: 574/149
Head Type D-cup Effective Head Volume 10cc
Ext. Valve Depth 0.206 Ext. Valve Dia. 1.870
Int. Relief Depth 0.208 Int. Relief Dia. 2.210

Compression Ratios

71-10.9

87-9.4

96-8.7

Pin Number

.980x3.000

Lock Ring

PRH107-3

Notes

Centered pin.  useOE or Edelbrock style heads.  Some stock rods may need to be narrowed and balance pad removed.

Details

  • UEM-IC-892
  • UEM-IC-892
  • Icon
  • New

Shipping Information

  • Item Requires Shipping
  • 16.0 lbs.
