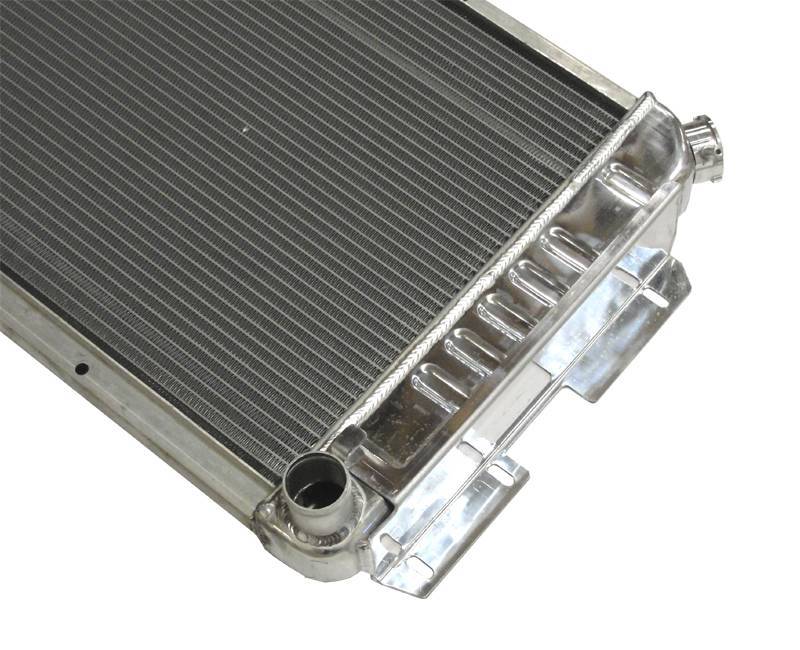

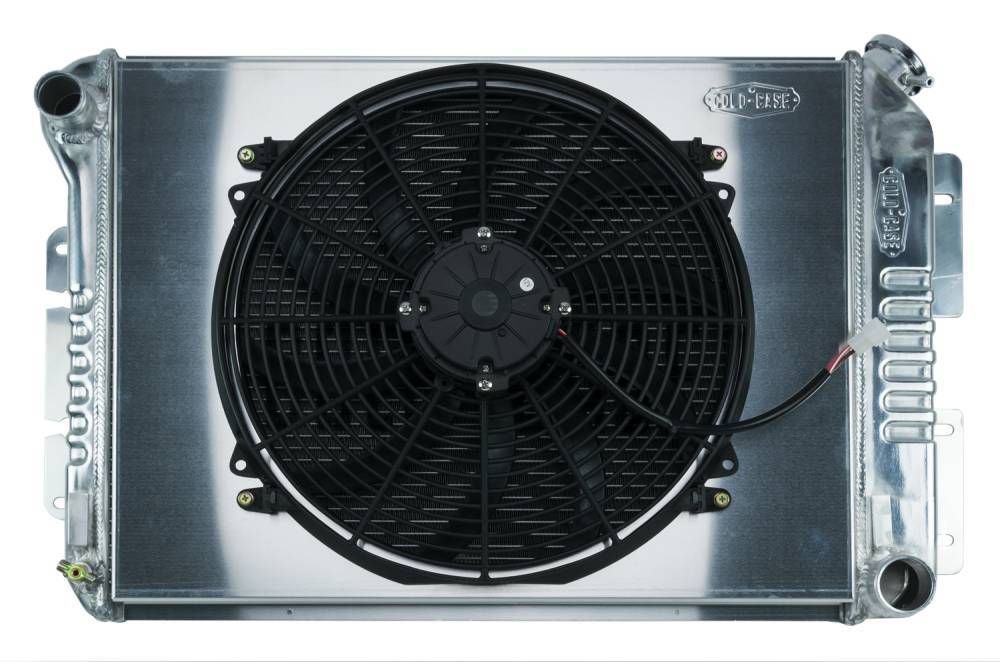

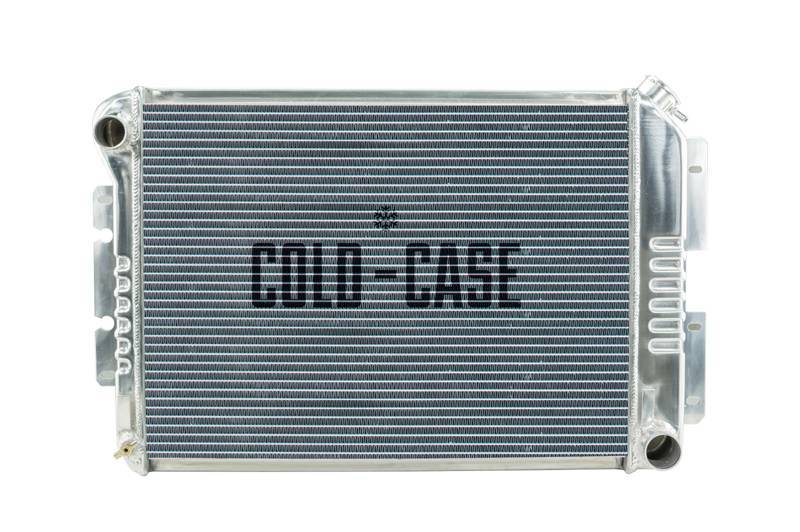

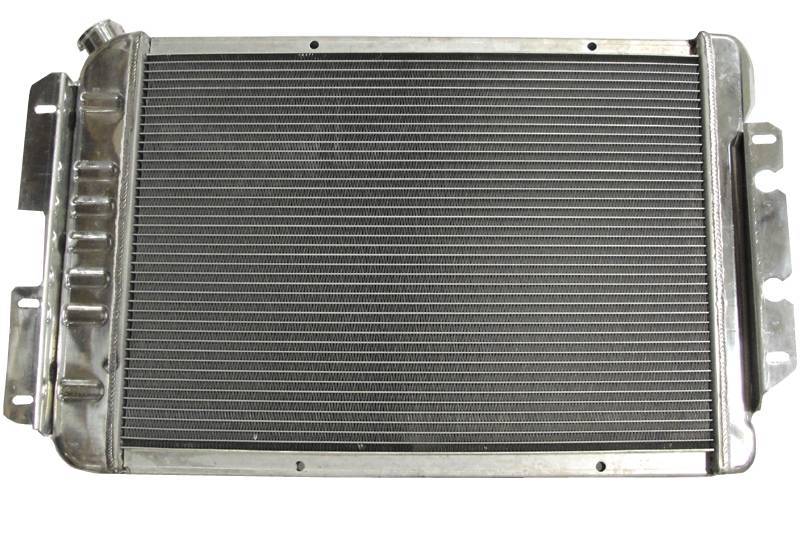

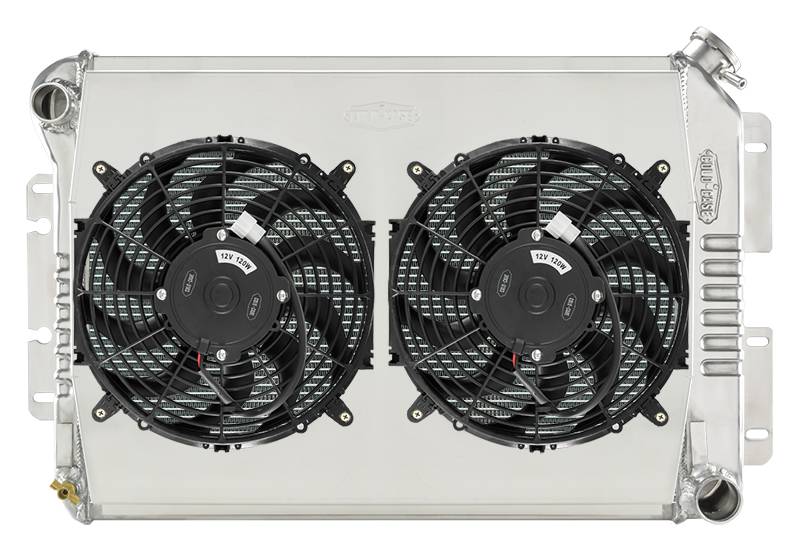

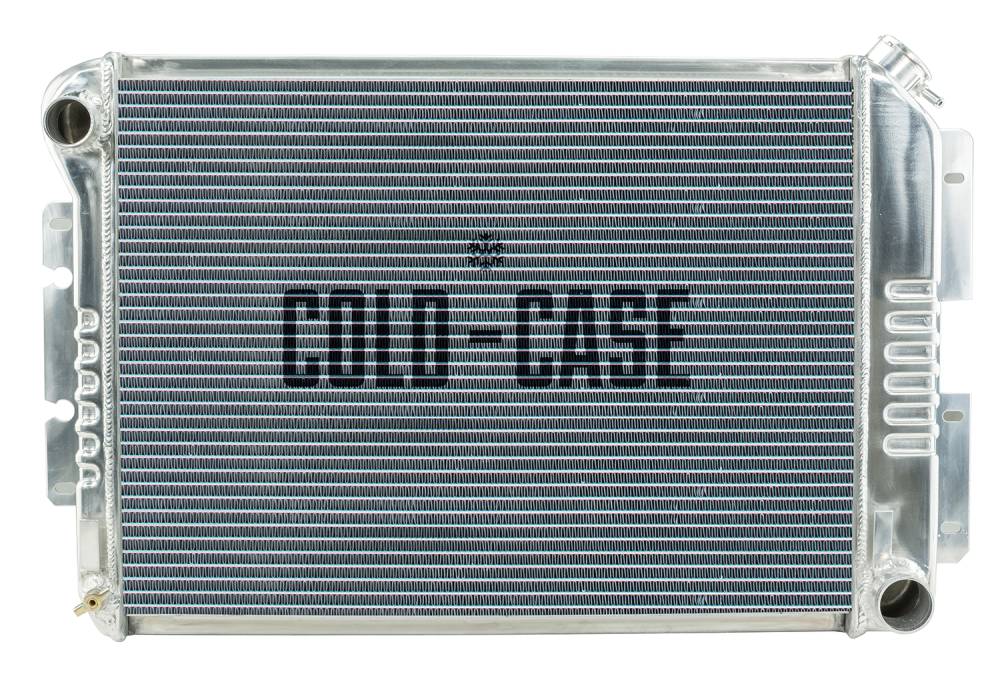

Cold Case 67-69 F-Body Aluminum Radiator, (MT) CCR-CHC11

1967–1969 GM F-Body (Chevrolet Camaro and Pontiac Firebird / Trans Am) aluminum performance radiator for V8 cars with a manual transmission.

A bolt-in cooling upgrade for first-generation F-body owners who want dependable temperatures in traffic, at the strip, or on a hot cruise night without changing the factory look.

Cold Case builds this radiator from 100% TIG-welded aluminum with two oversized cooling rows for high coolant volume. It runs cooler than a stock copper/brass radiator—a Cold Case 2-row typically outperforms an original 4-row core by roughly 10–15%—while weighing far less. It is engineered as a direct-fit replacement with the correct factory stamping and OE-style fittings, so once painted it is nearly indistinguishable from an original.

Features & specs:

• 100% TIG-welded all-aluminum construction
• Two oversized cooling rows with 1.25" tubes for high coolant volume
• 16 fins per inch with corrugated fins for maximum surface area and heat transfer
• Direct-fit with correct factory stamping and OE-style fittings
• Pressure-tested for a leak-free seal
• Fits V8 models only
• Backed by a lifetime warranty plus the Cold Case 60-day cool guarantee

Note: Fits V8 models only.

Radiator dimensions:
