Edelbrock Round Port Pontiac 87cc Bare Castings w/ CNC Machined Chambers, (Pair) EDL-60609

EDL-60609
Pontiac 87cc ROUND PORT Edelbrock Heads - Bare Castings (Pair) w/ CNC Machined Chambers
Not Available
Availability: See Head Builder Kit Part # BPI-HB-002-RD-87
Pricing: $2,045.95

Description

Edelbrock Performer RPM heads produce outstanding horsepower with excellent low speed torque and throttle response. Designed for 1965-79 389-455 c.i.d. Pontiac engines, these heads are patterned after the 1969 -70 Ram Air IV Pontiac cylinder head. Two styles are available: a street legal 87cc combustion chamber version for low compression applications using 92 actane fuel and a 72cc chamber version for higher compression, racing applications. Both heads have Ram Air IV exhaust port flanges. BP has conducted extensive flow bench, dyno, and track testing with these heads, all resulting in great performance numbers. We have cylinder head packages for any application, from 7-second racecars to 8 & 9 second street cars and even daily drivers. Call for a cylinder head combo to fit your needs.

Specifications/Information

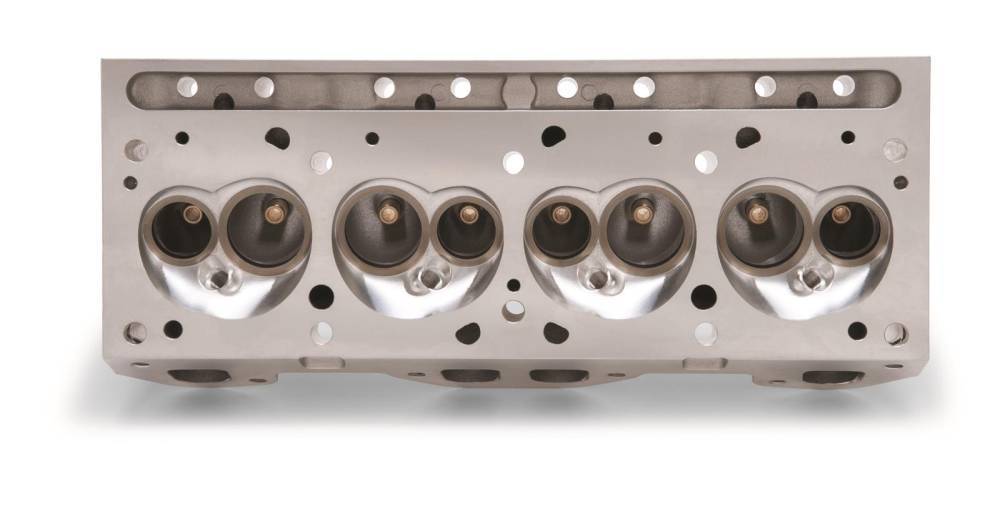

The Edelbrock #60609 Performer RPM CNC Bare Cylinder Heads have the same specifications as our popular Performer RPM cylinder heads for 1962-79 389-455 c.i.d. Pontiac engines, but feature a CNC machined combustion chamber. The CNC machined chamber results in a consistent and precise chamber for improved flow performance. Performer RPM CNC cylinder heads are available in two chamber sizes. The 87cc chamber version is ideal for 9.5:1 engines and will deliver excellent street performance on low octane fuel. The Edelbrock #60609 Performer RPM CNC Cylinder Heads are patterned after the same port flange configuration as the 1969-1970 Ram-Air IV Pontiac Cylinder Head.

SPECS

CNC Ported Yes- Not BP PORTED
Combustion Chamber Volume 87.0 cc
Deck Height 10.250 in
Deck Thickness 0.625 in
Guide Plates Included No
Intake Runner Volume 215.0 cc
Material Aluminum
Push Rod Diameter 0.312 in
Valve Angle 14 deg

Details

  • EDL-60609
  • EDL-60609
  • Edelbrock
  • See Head Builder Kit Part # BPI-HB-002-RD-87
  • New

Shipping Information

  • Item Requires Shipping
  • 70.0 lbs.
