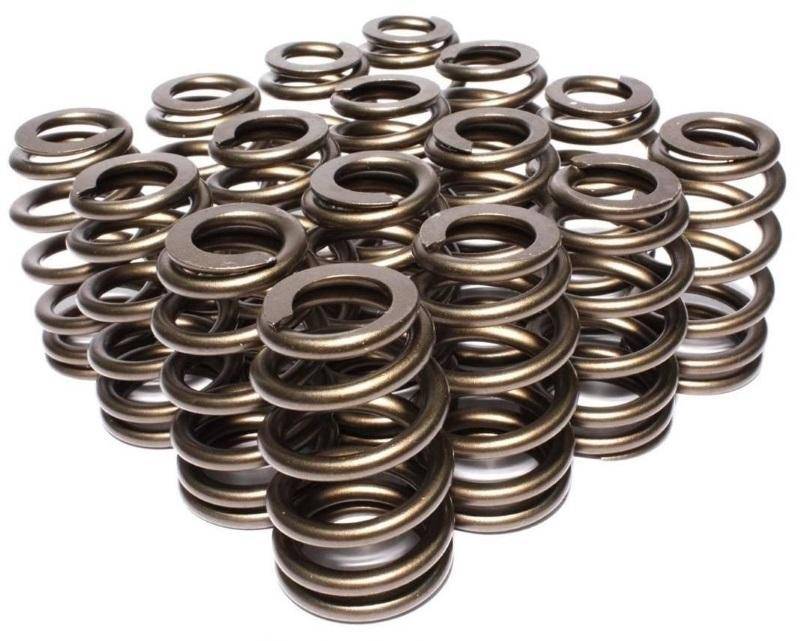

PAC Beehive Valve Springs, Hyd Roller PAC-1219X
Your Selected Product
Pricing:
$302.95
PAC-1219X
1.489 Dual Spring 165 @ 1.800, 385 @ 1.200 Coil Bind @ 1.110 (Set)
Description
SPECIFICATIONS
Part# PAC-1219X
Name PAC-1219X RPM Series HP Ovate Wire Beehive
OD Large End 1.307
ID Large End 0.885
ID Small End 0.650
Install Height 1.800
Load at Installed Height 145
Spring Open Height 1.175
Spring Open Load 358
Recommended Valve Lift 0.625
Spring Rate (lbs/in) 340.000
Mass (grams) 66.60
Coil Bind (max) 1.100
Recommended retainer- CCA-795-16
Recommended locator- CCA-4705-16
"Reduced mass at the top of the spring and from the smaller retainer. Reduced seat pressures, increased lobe acceleration rate, extended rpm range, and enhanced valvetrain stability, among other improvements."
Part# PAC-1219X
Name PAC-1219X RPM Series HP Ovate Wire Beehive
OD Large End 1.307
ID Large End 0.885
ID Small End 0.650
Install Height 1.800
Load at Installed Height 145
Spring Open Height 1.175
Spring Open Load 358
Recommended Valve Lift 0.625
Spring Rate (lbs/in) 340.000
Mass (grams) 66.60
Coil Bind (max) 1.100
Recommended retainer- CCA-795-16
Recommended locator- CCA-4705-16
"Reduced mass at the top of the spring and from the smaller retainer. Reduced seat pressures, increased lobe acceleration rate, extended rpm range, and enhanced valvetrain stability, among other improvements."
