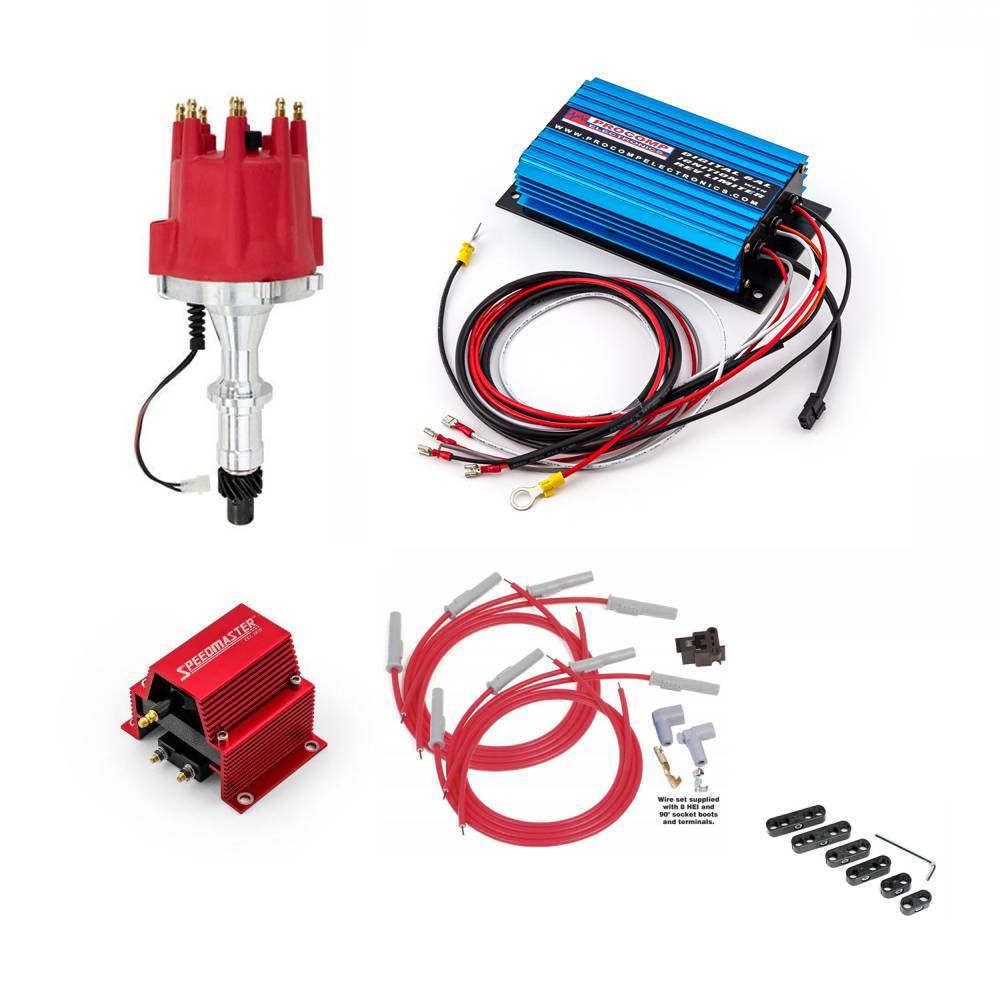

Pontiac Pro Series Pro Billet Distributor Kit
Description

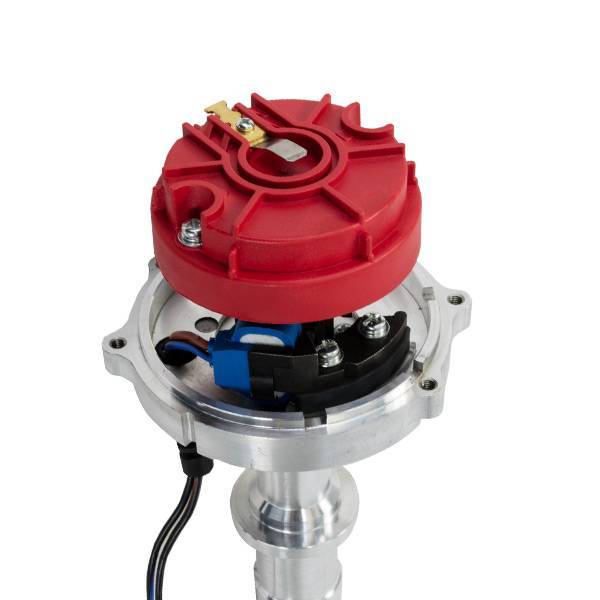

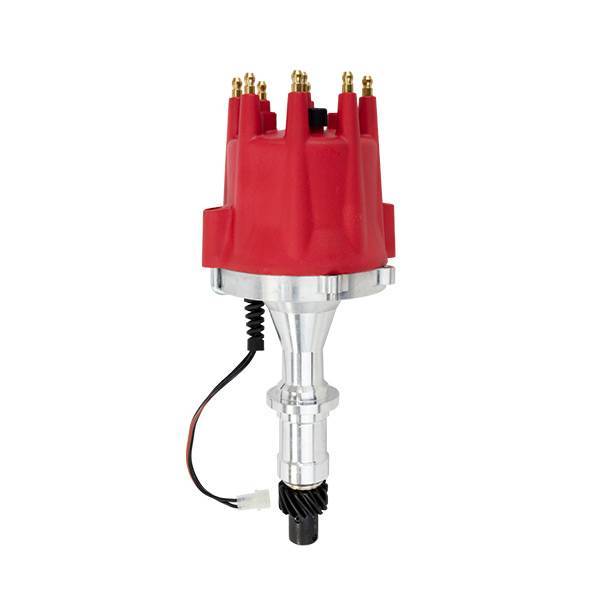

Pro Series Pro Billet Distributor is for the racer who needs added spark and precision for their high performance power plant. It features a high quality, fully adjustable mechanical advance and an accurate magnetic pick-up trigger. The CNC-machined aluminum body and hardened steel shaft, guided by a sealed ball bearing on top and a sintered steel bushing on the bottom, ensure stability up to 10,000 RPM. The distributor can be locked out and features solid brass terminals, a slip collar, and a color-matched wire retainer.
This distributor is designed for a 12 volt electrical system with an alternator. It is not compatible with a generator and cannot be used with a ballast resistor. Requires the use of an ignition control system and external ignition coil.

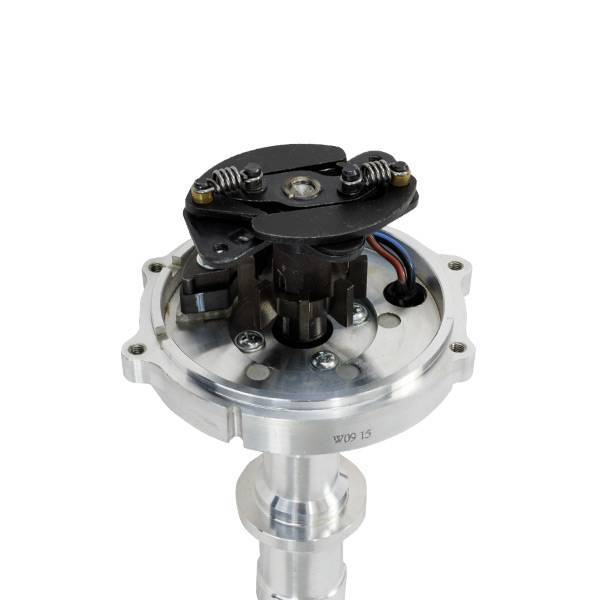

Fully Adjustable Mechanical Advance

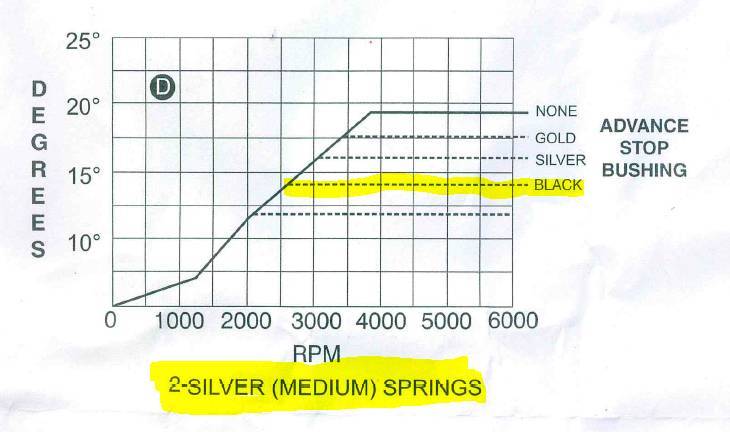

An important feature on all Top Street Performance Pro Series distributors is the fully adjustable mechanical advance. This allows you to easily modify the distributor to achieve a variety of timing curves. Included with all Pro Series distributors are four bushings of varied size. The bushing determines the mechanical advance the distributor can achieve. Also included are six springs, with two at each level of tension. The springs control the rate at which the distributor reaches the advance.
Specifications:
- TRIGGER STYLE: Magnetic
- ADVANCE TYPE: Mechanical
- CAP STYLE: Male
- MECHANICAL TACH DRIVE: No
- SLIP COLLAR: Yes
- COIL INCLUDED: No
- COIL TYPE: External
- COIL OUTPUT: 35,000+ Volt Recommended
- GEAR MATERIAL: Steel
- HOUSING MATERIAL: Machined Aluminum
- IGNITION BOX REQUIRED: Yes
- MARINE USE: No
- CYLINDERS: 8

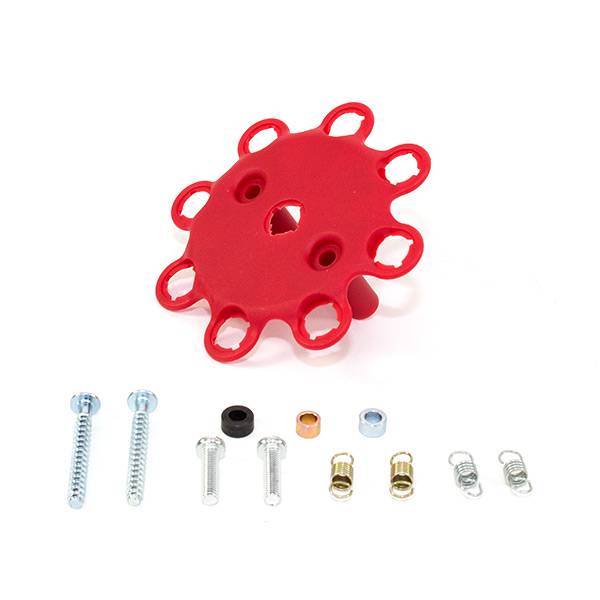

- INCLUDED: 3 Bushings and 4 Springs for Mechanical Advance, Color-Matched Spark Plug Wire Retainer with Screws
Fitment:
PONTIAC V8
- 4.9 L / 301 in3 (1977-1979)
- 5.3 L / 326 in3
- 5.7 L / 350 in3 (1968-1977)
- 6.4 L / 389 in3
- 6.6 L / 400 in3
- 6.9 L / 421 in3
- 7.0 L / 428 in3
- 7.5 L / 455 in3
Part Type: | Ignition Boxes |
Ignition Box Output: | Capacitive discharge |
Circuitry: | Analog |
Rev Limiter: | Yes - 2 |
Timing Retard: | None |
Data Acquisition: | No |
CD Voltage Output to Coil: | 500 V |
Current Draw: | 1 amp at 1,000 rpm |
Spark Output (millijoules): | 115 Millijoules |
Minimum Operating Voltage: | 9 V |
Maximum Operating Voltage: | 16 V |
Ignition Box Color: | Red |
Coil Included: | No |
Quantity: | Sold Individually |

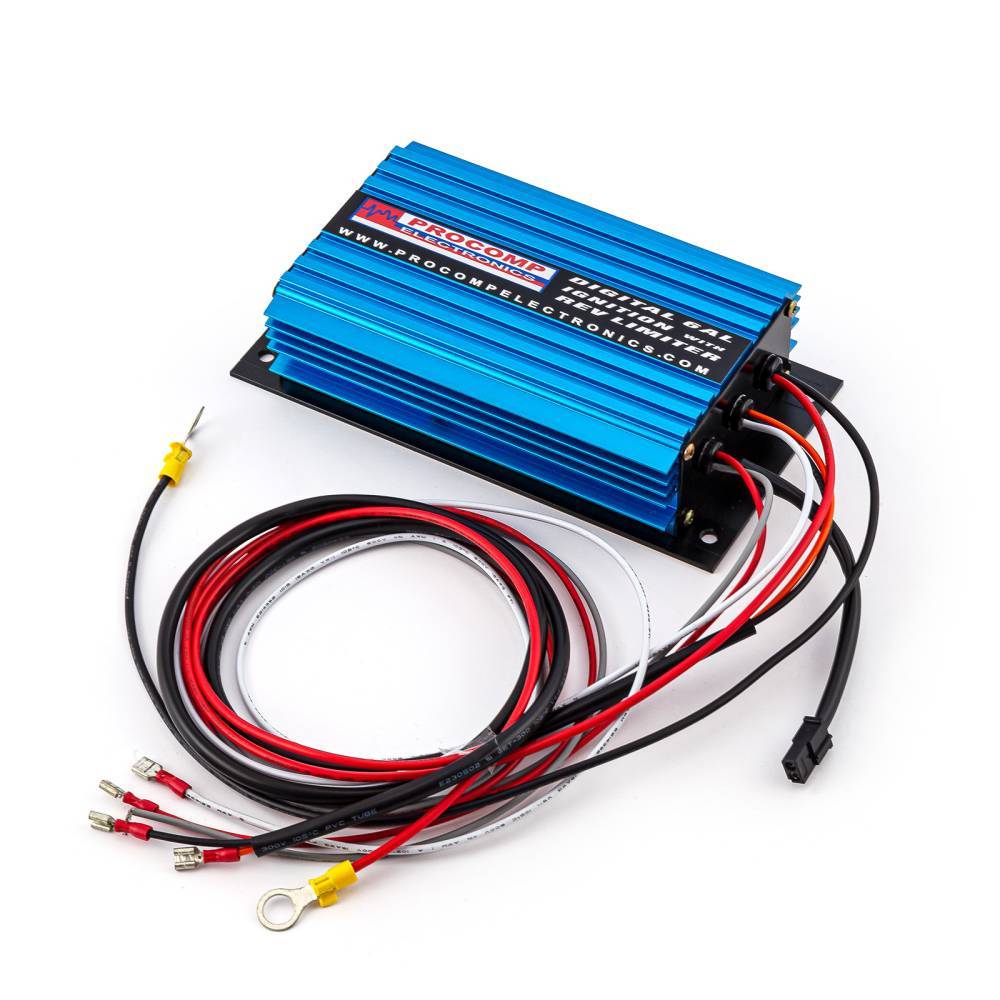

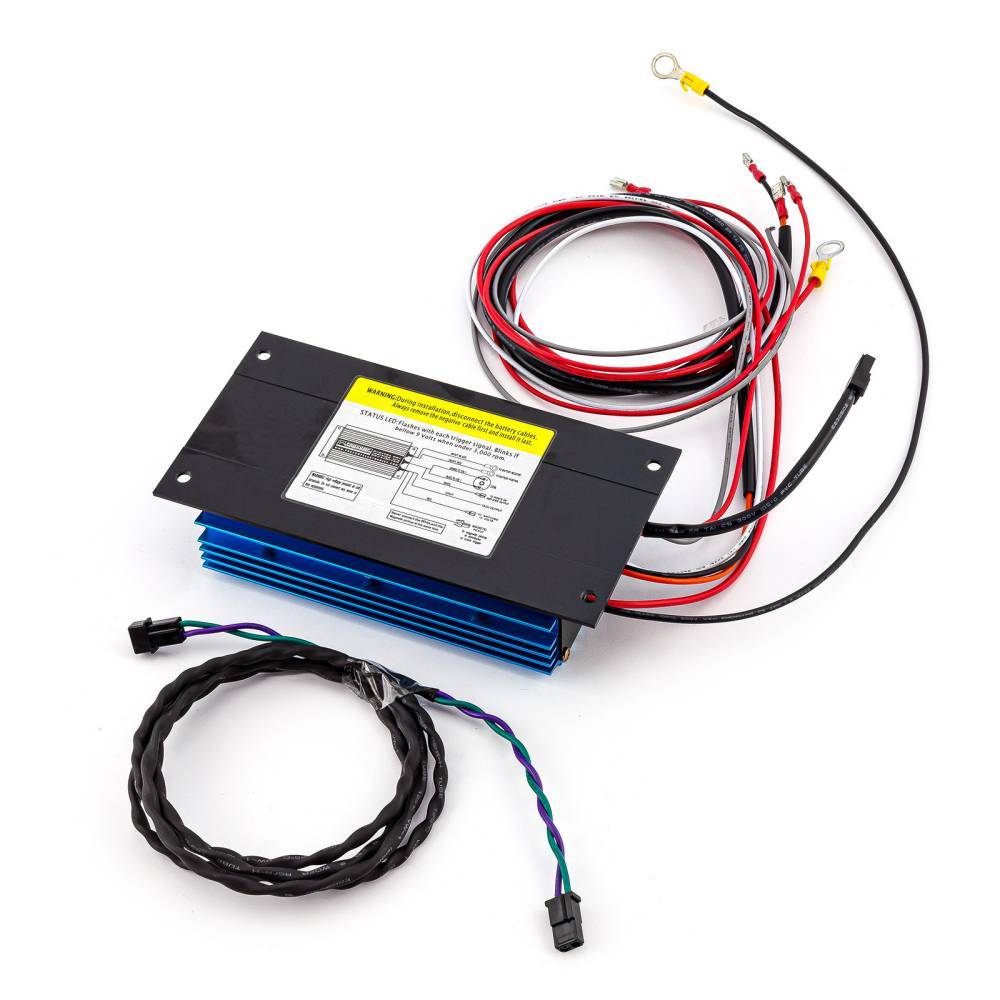

The entire line of PCE Ignitions is the most popular aftermarket ignition in the world due to our race-proven performance on and off the track.
The increased voltage that the PCE puts across the plug gap will improve the driveability and performance of everyday drivers to Saturday night racers!
The 6AL Ignition can be installed on 4, 6 or 8-cylinder engines equipped with a 12 volt, negative ground electrical system and a distributor.
They can be triggered by points, electronic amplifiers, magnetic pickups and other aftermarket distributors.
PCE 6AL uses capacitive discharge (CD) technology to produce a very high primary voltage.
This high voltage is always present regardless if you're at idle or racing down a straight away at 10,000 rpm.
The high quality transformer is hand wound and instantly steps up the supply voltage from the battery then stores this high voltage in a large capacitor.
When the ignition is triggered the capacitor releases all of this voltage to the coil so the primary voltage is at full power at any rpm.
These high powered sparks ensure complete combustion of the fuel mixture at racing rpm which in turn produces more power!
PCE 6AL Ignitions produce multiple sparks up to at least 3,000 rpm.
This series of sparks (each spark is at full voltage), whether there are two or six, will always last for 20' of crankshaft rotation.
This powerful series will improve the starting ability, idle quality & throttle response.
If you have a multiple carb set up that is a little off at idle or an engine that burns a little oil, the spark series will help prevent the cylinders loading up.
At higher rpm there isn?t enough time to fire the plug more than once during the combustion stroke so there is only a single full power spark.
With the PCE 6AL CD technology, this spark is always at full power even through 10,000+ rpm so you know the fuel mixture is being burned efficiently, creating maximum power!
PCE 6AL Soft Touch circuitry produces an accurate and smooth limit without loading up the cylinders or excessive back fires.
Even if your car is a mild street machine, a rev limiter can save you from expensive engine damage due to driveline failure or a missed shift.
You can run an PCE 6AL Ignition with your stock distributor, then upgrade to a Pro-Billet model or even a crank trigger.
You don't have to buy everything at once or spend money on features that you will never use.

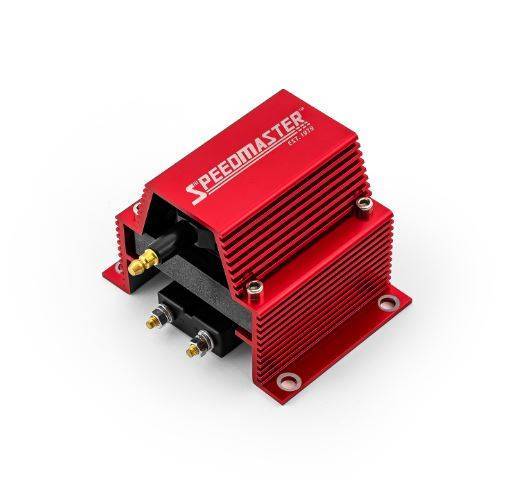

Part Type: | Ignition Coils |
Coil Wire Attachment: | Male/HEI |
Coil Style: | E-core |
Primary Resistance: | 0.450 ohms |
Coil Internal Construction: | Epoxy |
Coil Color: | Anodized Red |
Maximum Voltage: | 60,000 V |
Turns Ratio: | 100:1 |
Secondary Resistance: | 3.80K ohms |
Inductance: | 6.6 mH |
Peak Current: | 280 mA |
Spark Duration: | 225 uS |
Mounting Bracket Included: | No |
Coil Wire Included: | No |
Ballast Resistor Included: | No |
Coil Shape: | Square |
Quantity: | Sold individually. |
Description
The high output technology coil produces up to 70% more spark energy than stock coils with outstanding reliability. This unit is recommended for street, strip, circle track and drag racing. Internally the coil also has large gauge wire windings for maximum spark current and voltage with better heat dissipation at high rpm. High voltage arcing is minimized through screw on connectors and a high tension tower.

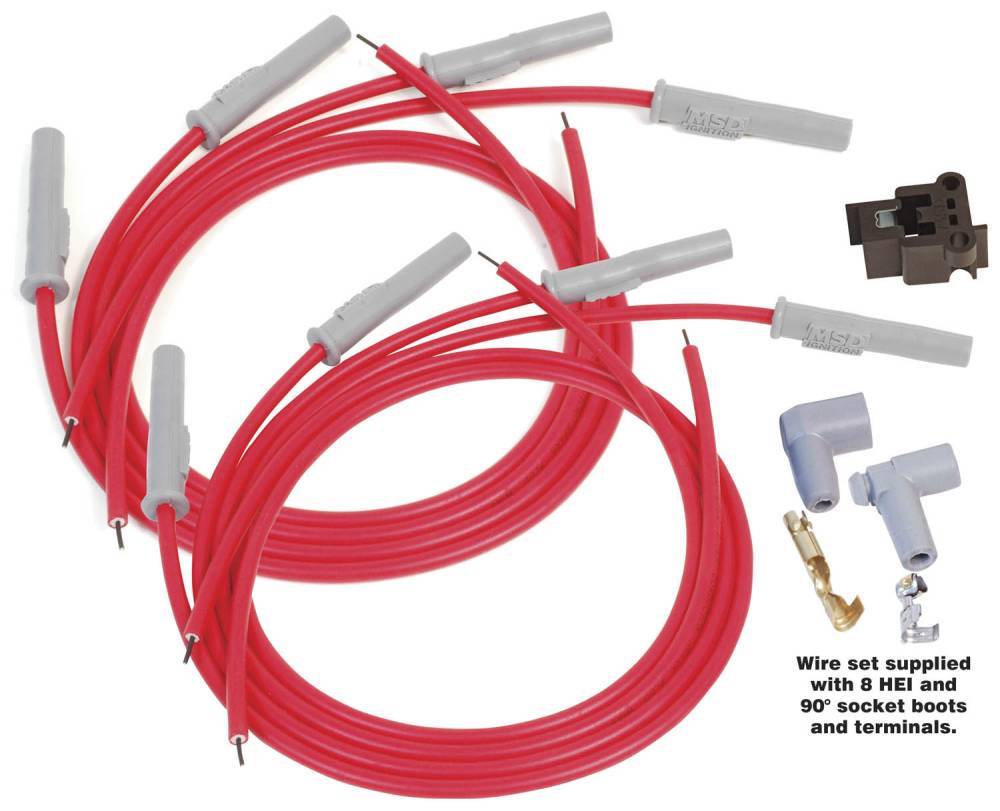

Wires Features:
-
- Helically wound conductor suppresses electro and radio noise
- Kevlar core combination for great strength and durability
- Heavy duty terminals for secure connection
- 8mm silicone and synthetic jacket resists heat and abrasion
- 500 Ohms per foot resistance for improved spark delivery and power
- Silicone boots protect against high exhaust temps
