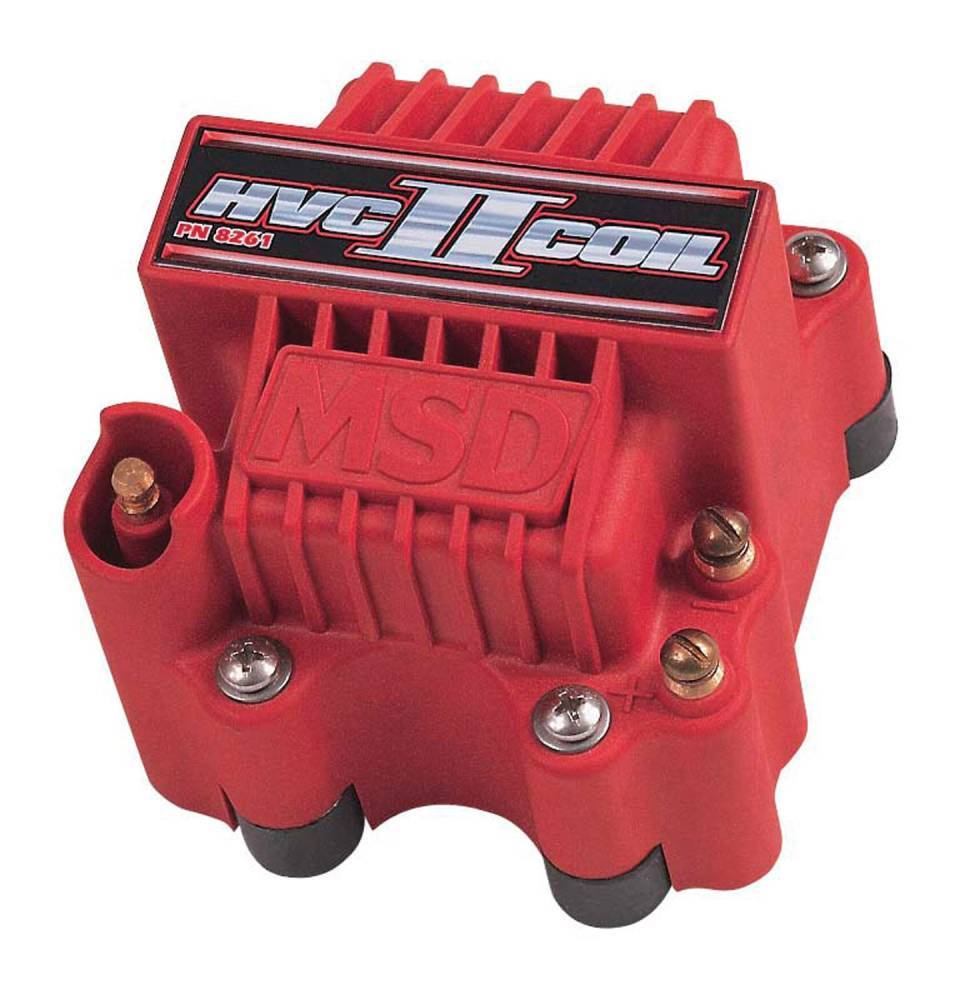

MSD HVC II Coil-45,000V, Red

SKU: MSD-8261

The HVC II Coil is completely built in-house so our engineers have exclusive control over their performance and quality.

Pricing: $325.95

Description

OVERVIEW

The HVC II Coil is completely built in-house so our engineers have exclusive control over their performance and quality. The Coil utilizes an iron U-Core design with a segmented bobbin for improved voltage distribution. The bobbin is molded from Dupont Rynite FR946 material which has incredible dielectric capabilities at high temperatures. MSD also incorporated a cutting edge winding material that has an improved insulation and is also capable of enduring extreme voltages. Together, these materials create a durable coil with incredible voltage capabilities, lightning quick rise time and lengthy spark duration.

Features:

Designed for racing applications with an MSD 7 or 8 Series Ignition Control
New U-core winding design produces more voltage and current
70:1 turns ratio and lower primary resistance produce high voltage output

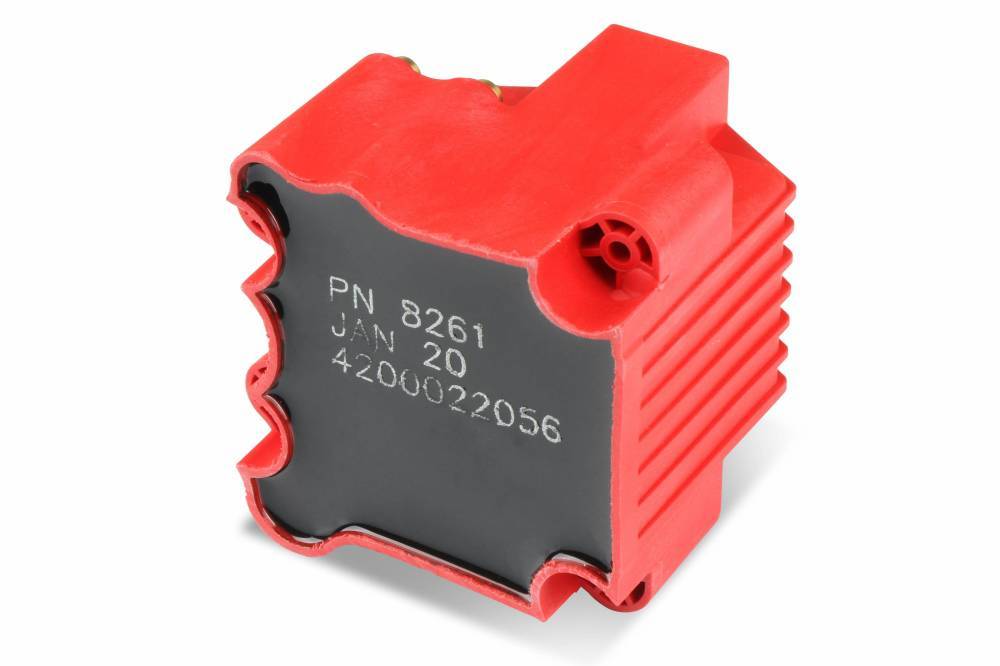

Windings are encased in fracture resistant compound for vibration resistance
Dupont Rynite housing with isolated tower and brass primary terminals

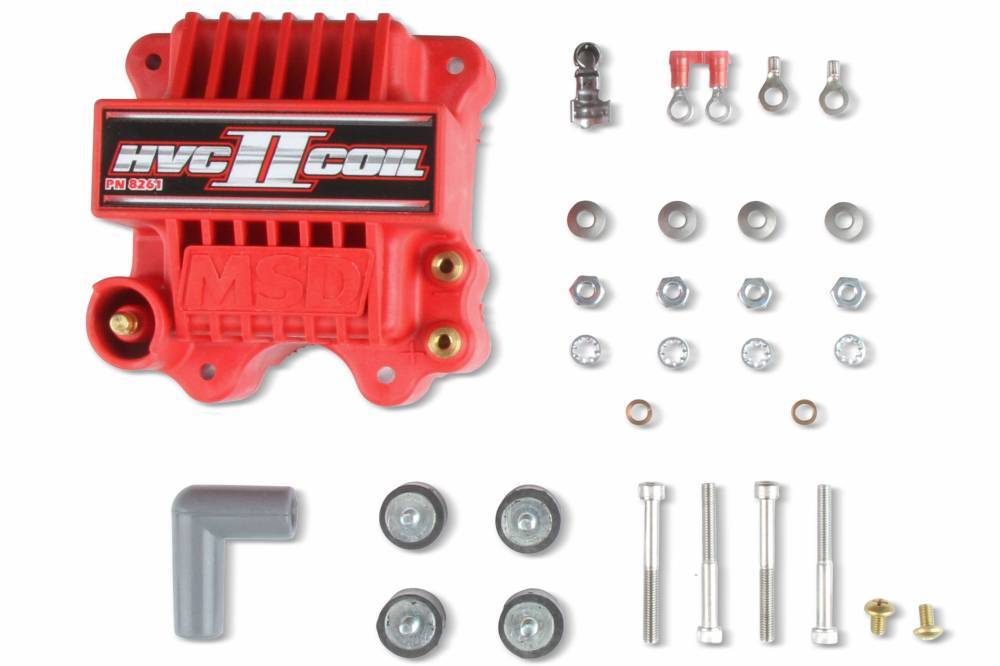

Supplied with rubber shock mounts

Brand	MSD
Color	Red
Emission Code	4
Inductance	.250 mH
Maximum Voltage	45,000 Volts
Peak Current	2 Amps
Primary Resistance	.016 OHMs
Product Type	Coil
Secondary Resistance	30 OHMs
Spark duration	150 uS
Turns Ratio	70:1
Type	Drag Race / Long Duration Use
Warranty	Limited 1 Year Warranty
