1970 to 1981 Pontiac Trans Am/Firebird 2nd Gen F-Body Shroud Kit for Cold Case GPF18 with 14 inch fans

Pontiac Firebird's, and LS Camaro's using Cold Case radiator core's GPF18 or CHC557A withSpal 14" Puller fans

Kit includes:

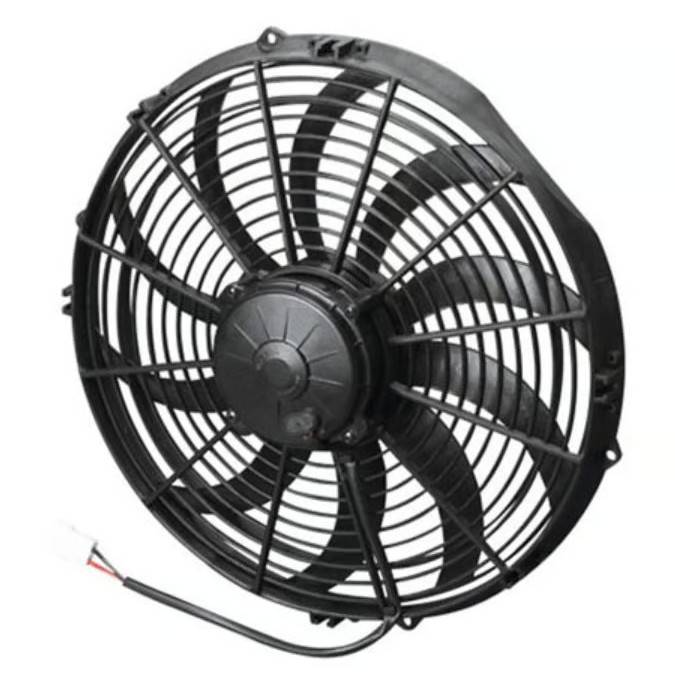

• (2) Spal Puller fans (CFM output is 1864 per fan)
• Custom Designed Shroud

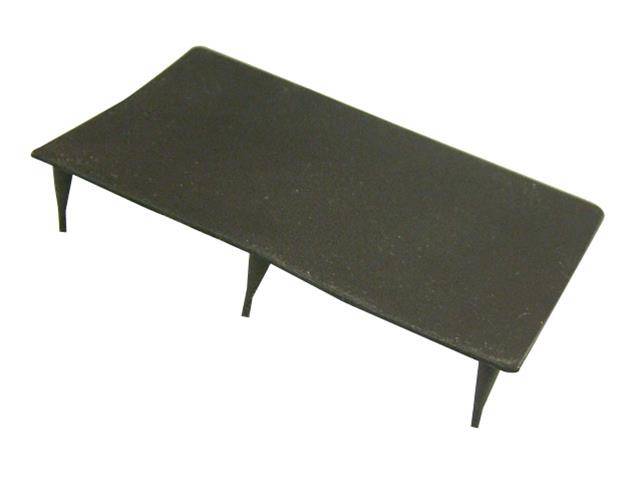

• (6) Rubber flap doors
• Stainless Hardware

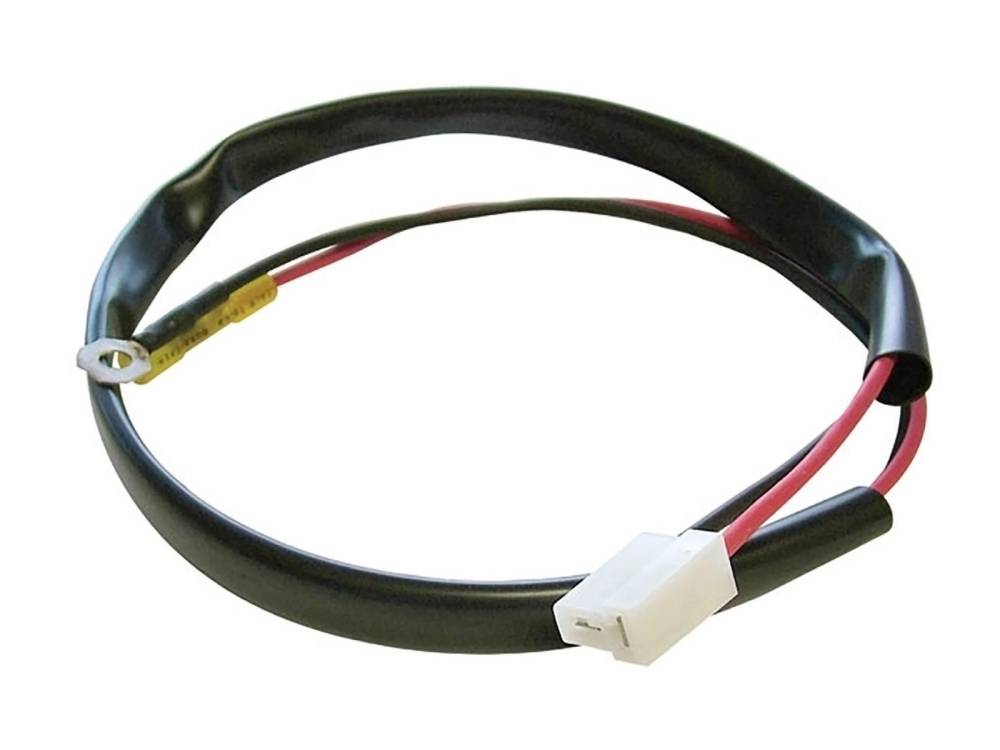

• (2) Spal Pigtails

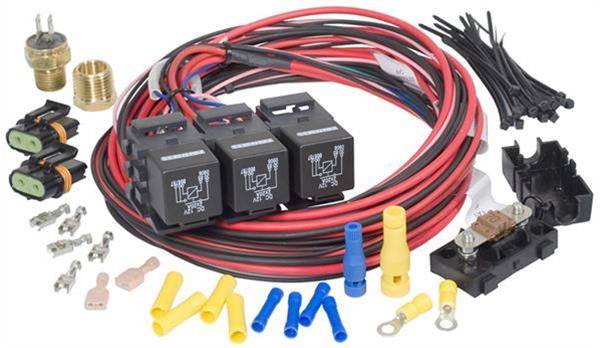

• Painless dual wiring harness 195 degrees on 185 degrees off.

Shroud Custom Designed by Fast Monty and manufactured by SendCutSend.  Stocked and shipped from Butler Performance

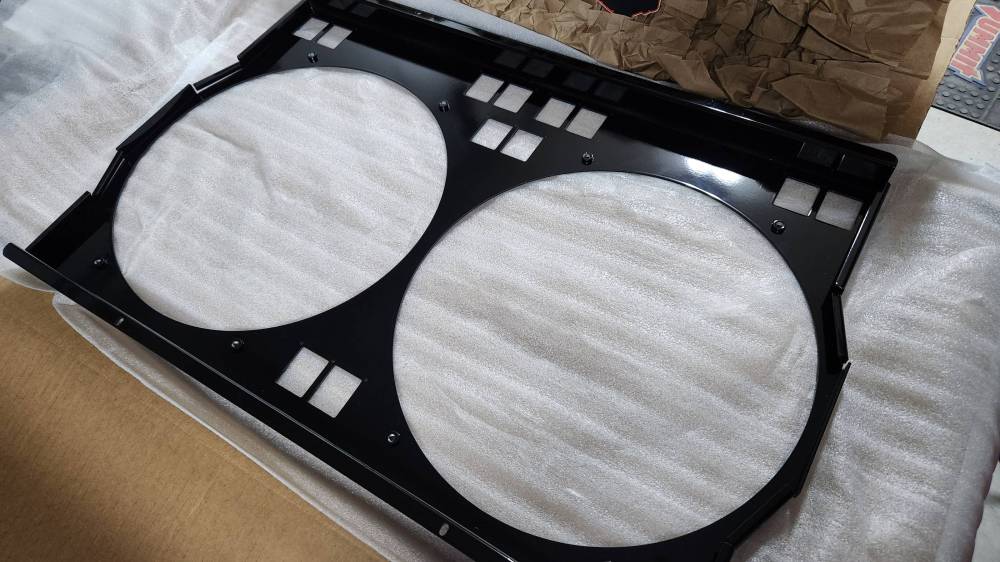

This shroud is a three piece design due to the "Down Flow" style radiator.  There are a total of 12 threaded holes, 8 for the fans, and four for the side brackets.  All are M6x1.

Designed to fit Cold Case Radiator part #'s; GPF18, GPF18A, GPF18B, and LS Swap CHC557A

This design allows you to flip the shroud upside down so you can mount the fans higher, or lower, based on your preference.  Both sets of top bottom mounting holes are now slotted and are the same distance apart.  All flap doors have mounting holes top and bottom.

Stocked in Raw Aluminum. Powder Coated lead time is around 2-3 weeks to ship.

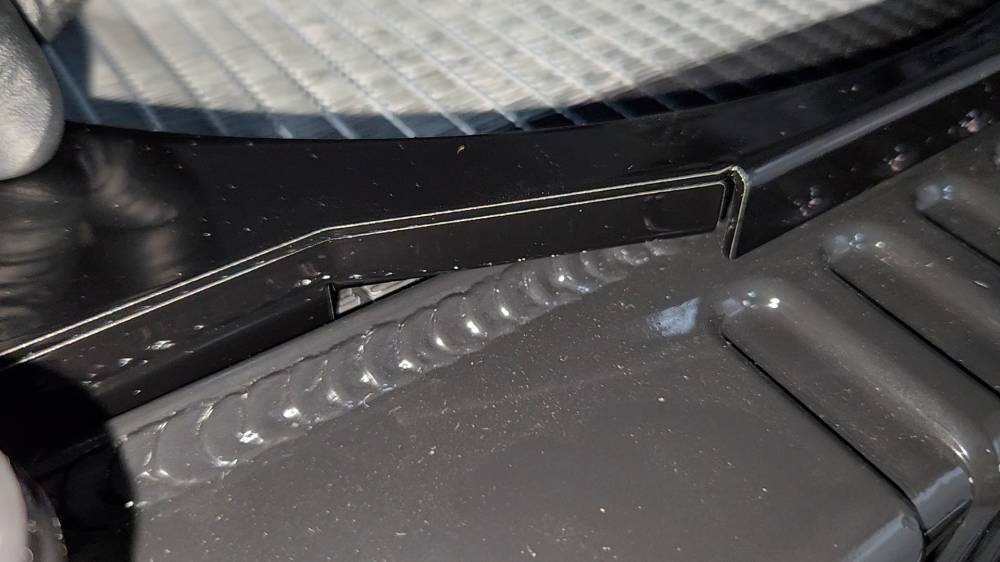

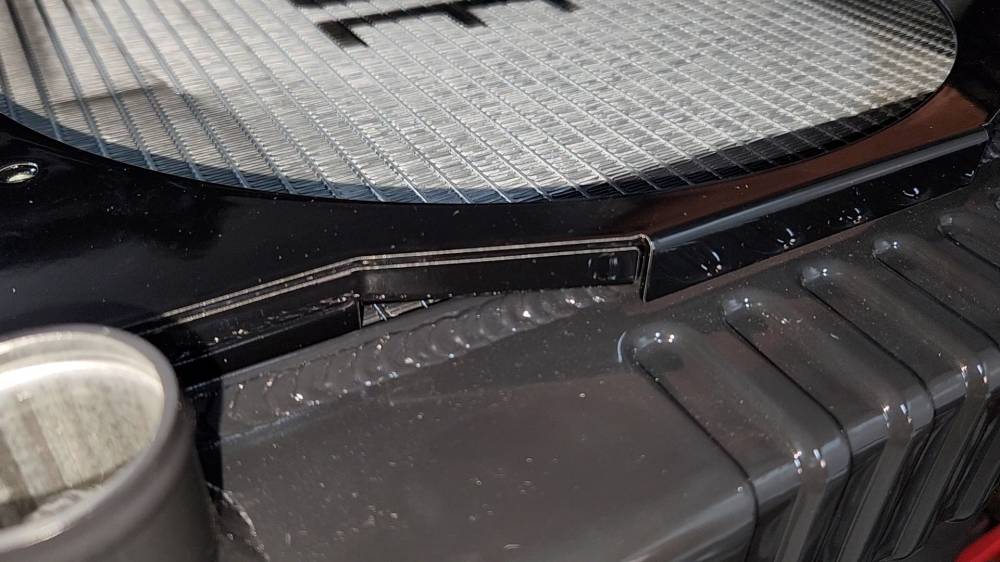

The Raw Aluminum version will have witness marks, as pictured near the bends, most of which can be removed with a Magic Eraser, or scuff the entire surface with Red Scotch Brite for a uniform look. Or course, painting is an option too.

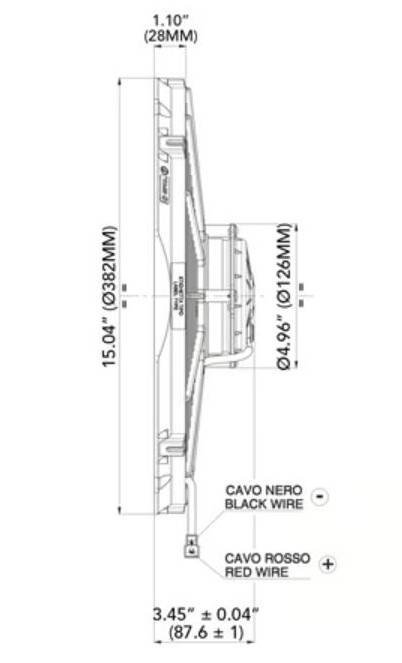

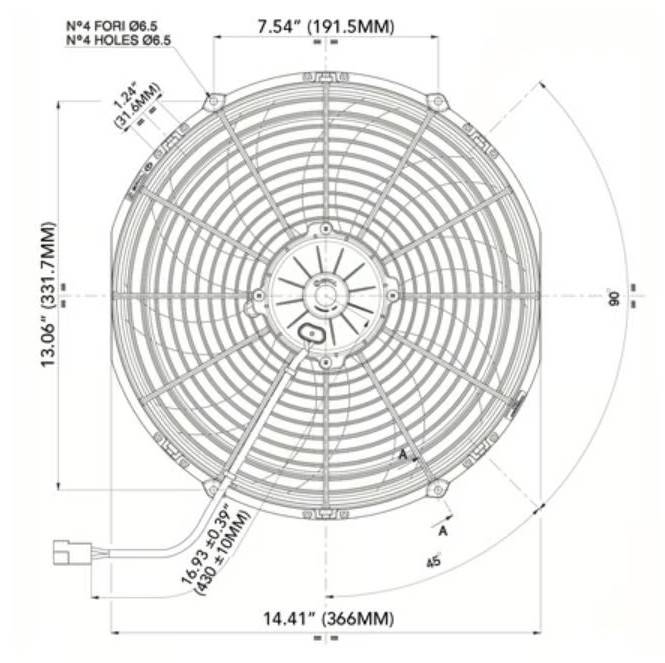

Spal Fan Specs
