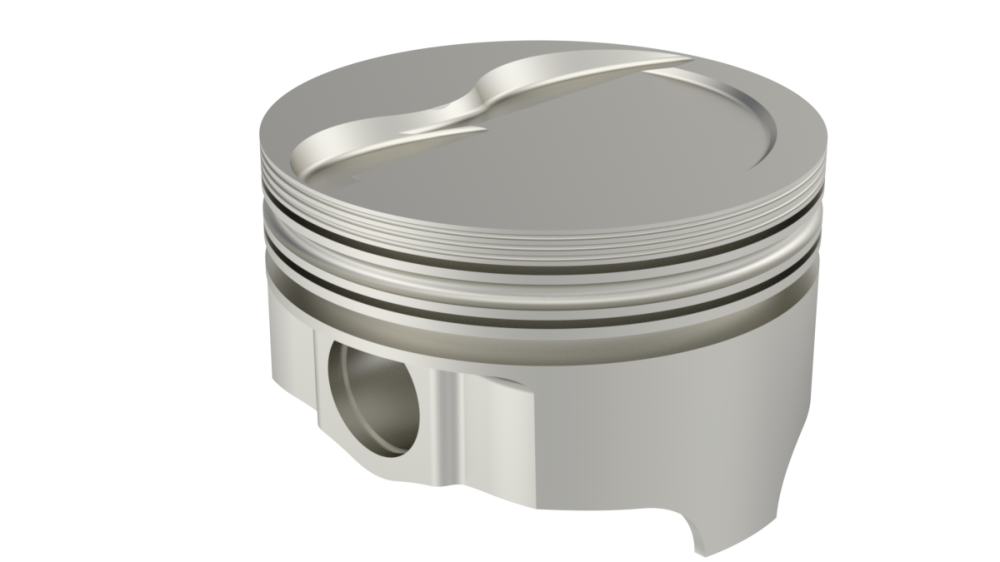

Icon Forged Pistons, Pontiac 428, Dish (-10cc), .040" Over (Set/8) UEM-IC-892-040-8

(0) Reviews: Write first review
UEM-IC-892-040-8

ICON Forged Pistons — Set of 8
Pontiac 428
-10cc D-Dish
4.160" Bore (+.040")
4.000" Stroke
1.595" Compression Height
.980" x 3.000" Pins Included
1/16, 1/16, 3/16 Ring Pack (rings sold separately)

Pricing: $793.48

Qty:

Description

ICON Pistons — Pontiac 428

4.160" Bore (+.040") · 4.000" Stroke · -10cc D-Dish · Set of 8

ICON pistons are forged 2618-equivalent premium alloy from United Engine & Machine, the same shop that builds Keith Black. They are the value-forged answer for a Pontiac that has outgrown a cast or hypereutectic piston — a healthy hydraulic roller street engine, a bracket car, or any build where detonation and heat are a real possibility.

Specifications

Part NumberUEM-IC-892-040-8
BrandICON
Material2618-equivalent forged aluminum
ApplicationPontiac 428
Oversize+.040"
Finished Bore4.160"
Stroke4.000"
Rod Length6.625"
Compression Height1.595"
OE Deck Height10.240"
CrownD-Dish, -10cc
Pin Diameter.980"
Pin Length3.000"
Pin TypePress-fit or floating, centered
Lock RingPRH107-3
Top Land.250"
Intake Valve Relief (depth / dia.).208" / 2.210"
Exhaust Valve Relief (depth / dia.).206" / 1.870"
Weight, Piston / Pin (grams)574 / 149
Compression Ratio (chamber cc - ratio)71cc-10.9, 87cc-9.4, 96cc-8.7
Ring Pack1/16, 1/16, 3/16 (sold separately)
QuantitySet of 8

What You Get

  • Eight ICON forged pistons
  • .980" x 3.000" wrist pins and locks

Fitment & Installation Notes

  • Eagle and Scat rods may require honing to fit the pin.
  • Some stock rods may need to be narrowed and the balance pad removed.
  • Use OE or Edelbrock style heads.

Before you order: measure your finished bore before buying an oversize. Confirm chamber volume and deck height against your target compression ratio — crown volume alone does not set compression. Opened or installed pistons are not returnable.

Butler Tech Library
Picking the Right Piston for Your Compression Target
Cast vs. forged, flat-top vs. dish vs. dome, and compression height — our piston guide covers how Butler dishes in-house to hit your target with any Pontiac head. Run the numbers with our compression calculator.
Read the Piston Guide ›

Specifications/Information

Part NumberUEM-IC-892-040-8
BrandICON
Material2618-equivalent forged aluminum
ApplicationPontiac 428
Oversize+.040"
Finished Bore4.160"
Stroke4.000"
Rod Length6.625"
Compression Height1.595"
OE Deck Height10.240"
CrownD-Dish, -10cc
Pin Diameter.980"
Pin Length3.000"
Pin TypePress-fit or floating, centered
Lock RingPRH107-3
Top Land.250"
Intake Valve Relief (depth / dia.).208" / 2.210"
Exhaust Valve Relief (depth / dia.).206" / 1.870"
Weight, Piston / Pin (grams)574 / 149
Compression Ratio (chamber cc - ratio)71cc-10.9, 87cc-9.4, 96cc-8.7
Ring Pack1/16, 1/16, 3/16 (sold separately)
QuantitySet of 8

Notes

  • Eagle and Scat rods may require honing to fit the pin.
  • Some stock rods may need to be narrowed and the balance pad removed.
  • Use OE or Edelbrock style heads.

Details

  • UEM-IC-892-040-8
  • UEM-IC-892-040-8
  • Icon
  • New

Categories

Shipping Information

  • Item Requires Shipping
  • 16.0 lbs.
