Edelbrock Victor Jr Pontiac Intake Manifold - CNC Port Matched to Butler 340 CNC Heads EDL-29569-PM-340
CNC port matched in-house at Butler Performance to Butler 340 CNC-ported heads for a smooth, stepless intake-to-head transition. Click for the full details on our 5-axis port-matching process.
Description
About the Edelbrock Victor Jr intake: Edelbrock’s all-new Pontiac Victor Jr. Intake Manifold delivers big performance in a low-profile design. Featuring 3D-printed intake cores for optimized runner shapes, it supports engines up to 500 c.i. while maintaining Pontiac’s signature torque curve. Available for both carbureted and EFI applications. Butler Performance | Edelbrock Pontiac Victor Jr. Intake Manifold EDL-29569 -->

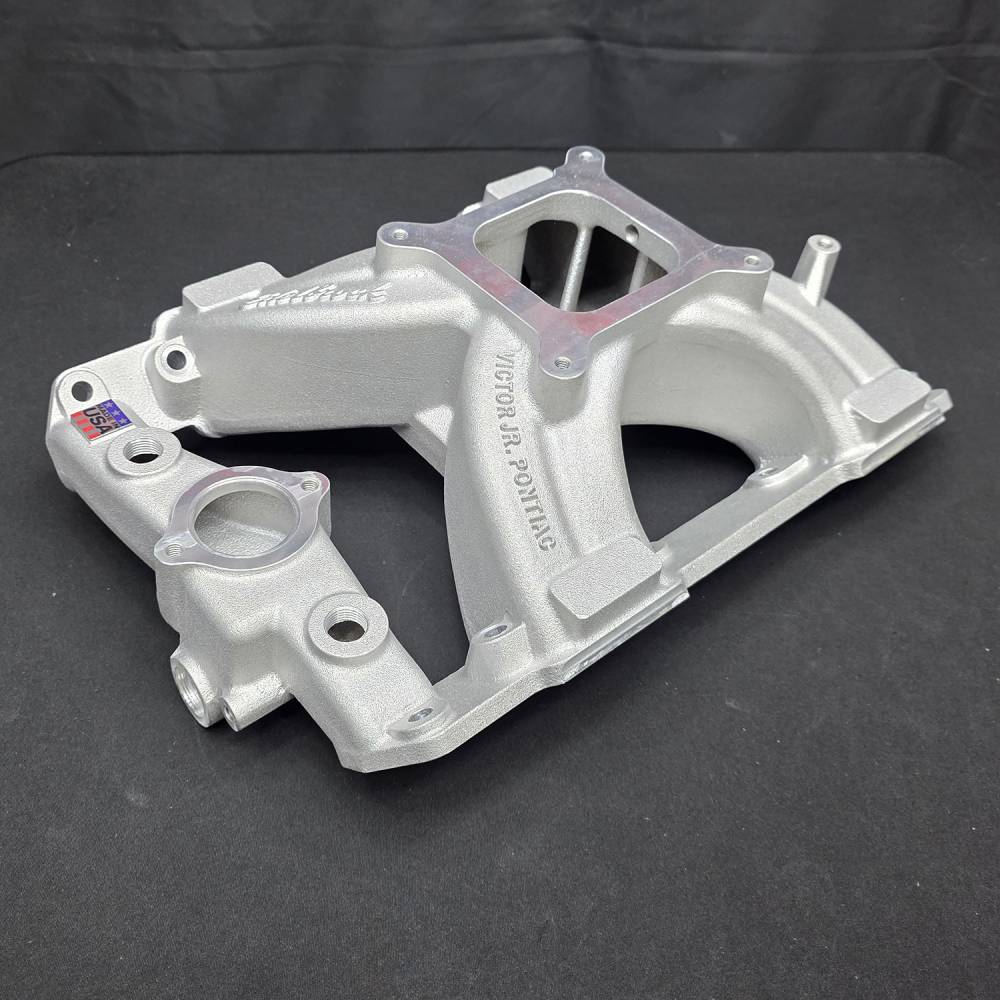

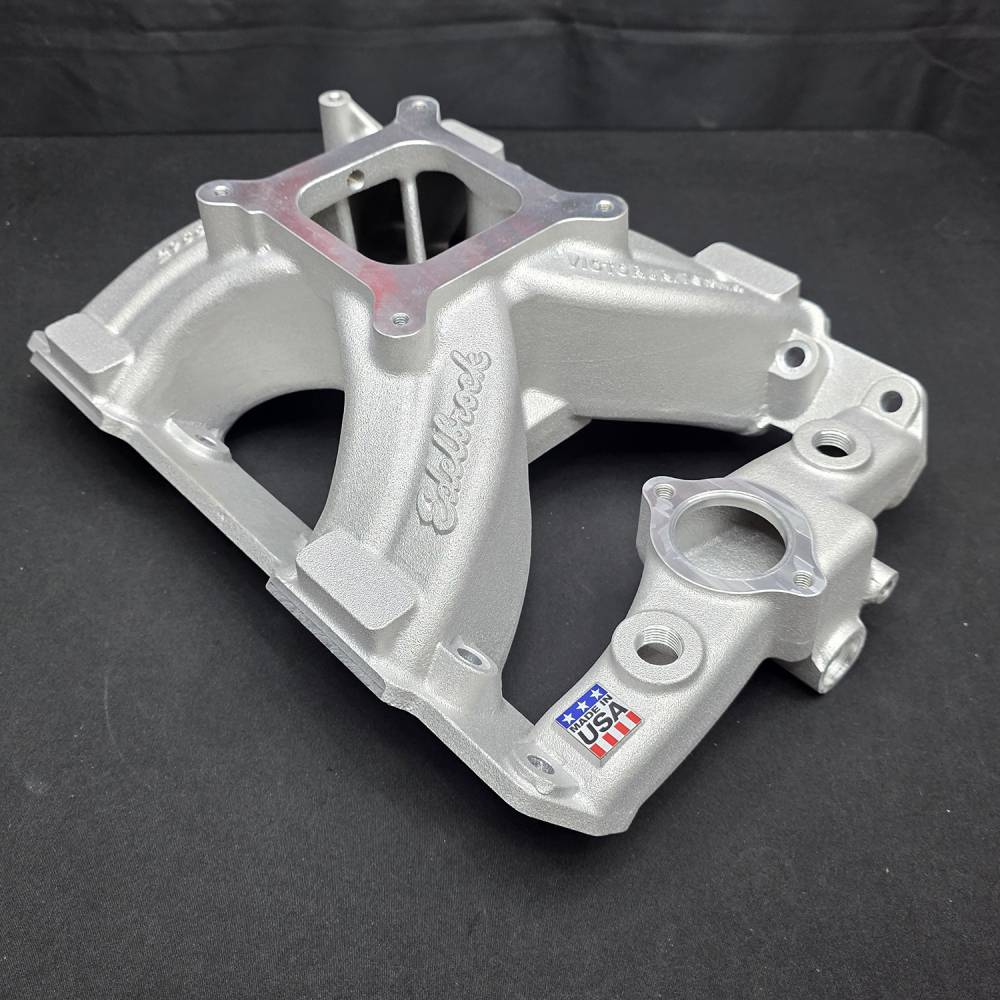

The Edelbrock® Pontiac Victor Jr. (PN 29569) is an all-new single-plane intake engineered for high-horsepower Pontiac builds where hood clearance is a concern. It delivers serious top-end performance in a genuinely low-profile package — and it’s the first Edelbrock full-production manifold built with advanced 3D-printed intake core technology. Butler Performance stocks it ready to ship, set up for either carbureted or throttle-body EFI use.
First With 3D-Printed Core Technology
Traditional sand-cast manifolds require a “draft” angle in the runner tooling, which leaves the as-cast runner exits oversized and uneven — the reason so many race intakes need hand port-matching to perform. The Victor Jr.’s 3D-printed cores eliminate that draft entirely, delivering perfectly sized and shaped runner exits straight out of the box. The result is optimized airflow and consistent runner geometry with little to no port matching required before it goes on the engine.
Big Power, Low Profile
Generously sized Victor single-plane runners support engines up to 500 c.i. and power levels approaching 700 HP, while preserving the broad, usable torque curve Pontiacs are known for. Just as important for street/strip cars: the carburetor height and angle match Edelbrock’s popular Performer RPM (PN 7156), so it clears second-generation Trans Am shaker hoods — a fitment that has historically forced enthusiasts to choose between hood clearance and Victor-level airflow. With the Victor Jr., you no longer have to.
“The Pontiac Victor Jr. represents a major step forward for Edelbrock manifolds. By leveraging 3D-printed core technology, we’re able to deliver unmatched precision and performance straight from the factory — something Pontiac enthusiasts will appreciate on both the street and the track.” — Brent McCarthy, Product Development Manager, Edelbrock Group
The Butler Take
A single-plane Victor-style intake earns its keep on a serious combination — modified heads, a healthy cam, and an engine that lives in the upper RPM band. After decades of dyno-testing Pontiac engines, we’ve found intake selection works best when it’s matched to the whole package: D-port vs. round-port heads, compression, cam, vehicle weight, and intended use all factor in. If you’re weighing a Performer RPM, Torker II, or a Victor-class intake for your build, call the Butler tech line and we’ll help you match it right the first time.
Made in the USA by Edelbrock. Ships free in its own box (22 lbs). Choose your vacuum-port drill operation and head configuration above before adding to cart. Questions on fitment for your combination? Contact Butler Performance at (866) 762-7527.
Matched to Butler 340 CNC heads. The larger, higher-flowing 340 port is machined into this manifold and blended into the runner, identical on all eight ports, for an uninterrupted path from plenum to port.
The Butler CNC port-matching process. A port match is only worth doing if it's done right. Out of the box, an intake manifold and a cylinder head are cast separately and never machined to meet each other — leaving a step, offset, or size mismatch at the port opening that trips the incoming air and fuel right at the doorway to the cylinder, exactly where you least want turbulence. For years the only fix was a gasket scribe and a die grinder by hand: slow, inconsistent side to side, impossible to repeat, and easy to over-grind into a reversion step that actually costs you flow. Butler invested in a better way. Every Butler port match is modeled in 3D from the actual head port, programmed into repeatable toolpaths, and cut on our 5-axis Haas UMC machining center using dedicated fixturing that locates every manifold exactly the same way. Each opening is machined to the correct size and shape, then blended smoothly back into the manifold's own casting so the transition is gradual rather than a cliff — identical on all eight ports, cylinder to cylinder.
Why it matters. A machined match is precise, symmetrical, and repeatable, and it's matched to the real port it bolts to — not a generic gasket outline. You get the airflow benefit of a perfect port match without the risk of a hand-grinding mistake that can't be undone. Modeled, machined, matched, and finished in-house by Butler Performance — the Pontiac experts.
Details
- EDL-29569-PM-340
- EDL-29569-PM-340
- Edelbrock
- Made to order - CNC port matched to order
- New
Categories
Shipping Information
- Item Requires Shipping
- 22.0 lbs.
- Free Shipping!
