Butler Pontiac Complete Engine Accessory Bolt Kit-Hex Head- Stainless Steel 1969-79 ABO-H-5201
Complete Engine Accessory Bolt Kit-Hex Head- Stainless Steel, 10 Sets per Kit, 131pc
Description
Watch as Kevin and Angus from the Junkyard Digs YouTube channel using the Butler Stainless Bolt Kit
Why reuse old rusted bolts when you can purchase an All New Stainless Steel Bolt Kit from Butler Performance?
This bolt kit includes everything you need to get your engine looking great and ready to go.

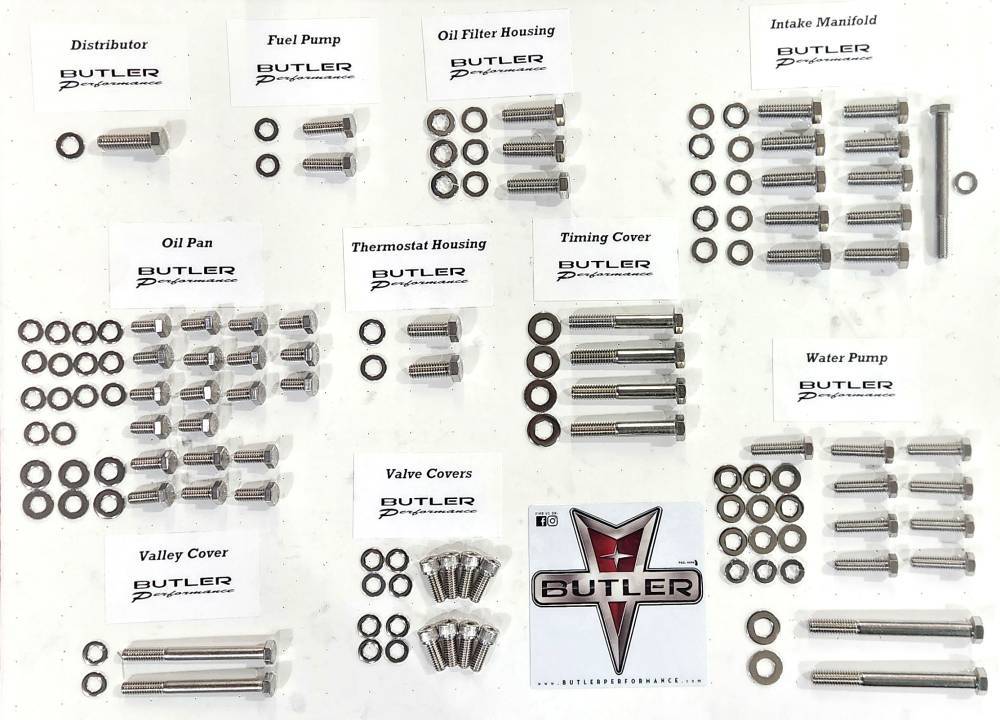

See the picture below for a detailed list of what bolts this kit includes.
(Does Not Include Head Bolts or Internal Bolts)

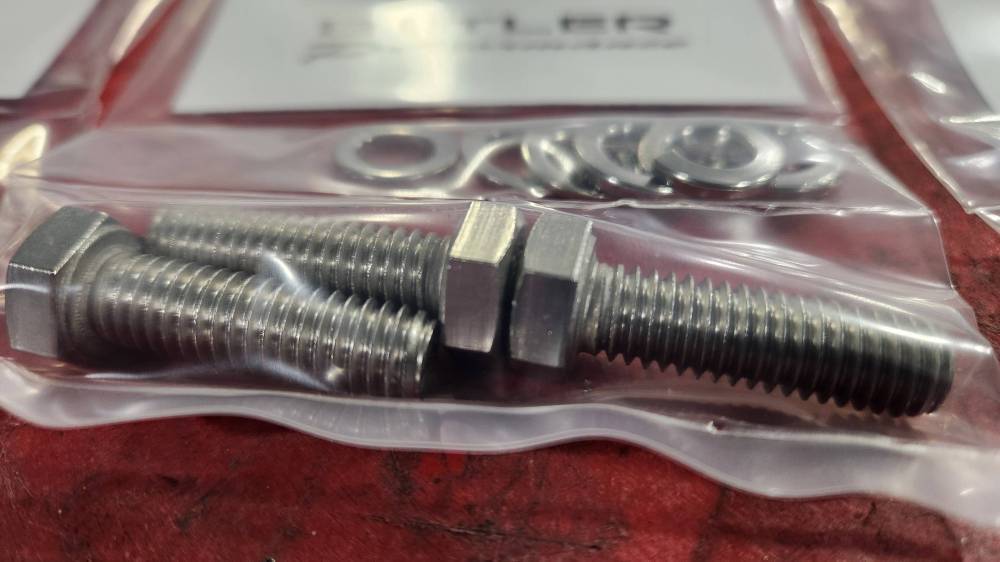

This is a complete high quality stainless steel hex bolt kit.

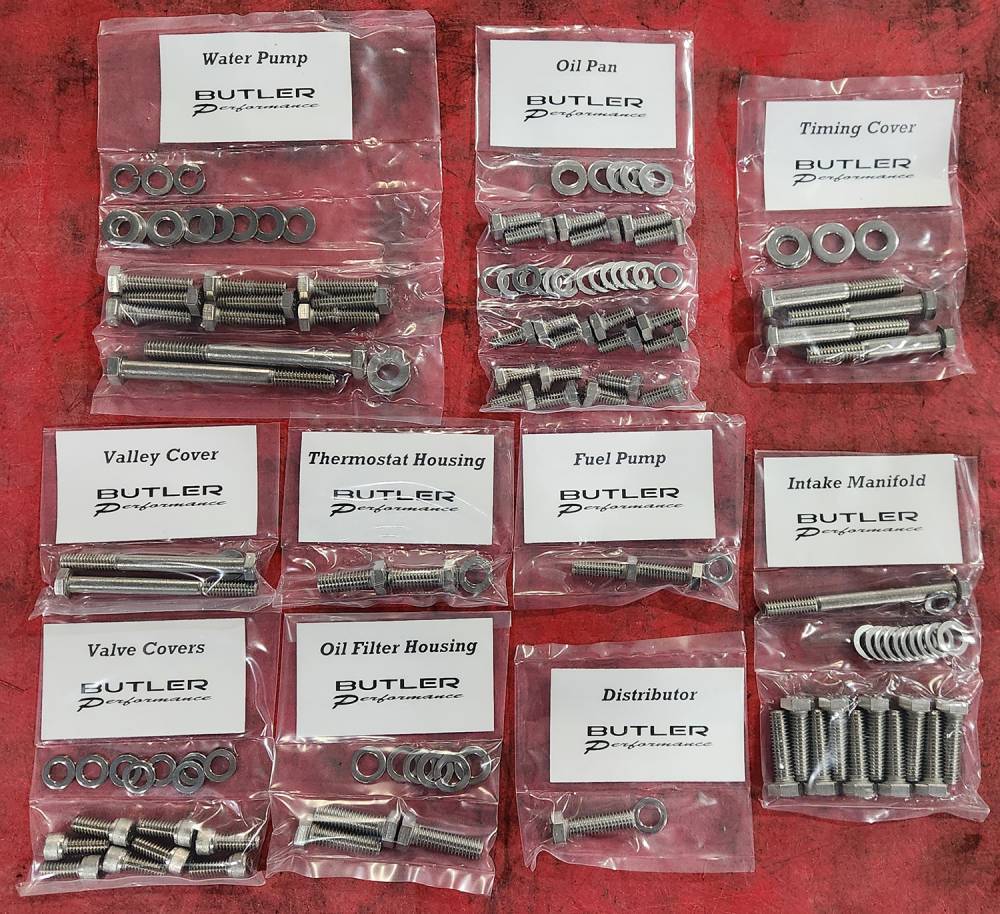

The kit includes individually packaged and labeled component kits for the following:
Intake Manifold
Valley Cover
Timing Cover
Water Pump
Oil Pan
Oil Filter Housing
Thermostat Housing
Distributor
Fuel Pump
Valve Covers
Suggested Torque Specs
Pontiac Engine Torque Specs
Bolts or Parts | Lube or Sealer | Torque to: |
Main Caps |
Engine Oil | 95 ft-lbs. |
Rear Main Cap |
Engine Oil | 120 ft-lbs. |
Warning!!! If you are using ARP bolts, you must use their specs. |
||
Connecting Rod Bolts | Assembly Lube | 45 ft-lbs. |
SD Connecting Rod Bolts | Assembly Lube | 65 ft-lbs. |
Cylinder Heads |
Engine oil |
95 ft-lbs. |
Rocker Studs (screw-in) | Engine Oil | 55 ft-lbs. |
Rocker Arm Nuts (Non-Adjustable Rockers) |
Assembly Lube | 20 ft-lbs. |
Oil Pump Bolts | Engine Oil | 30 ft-lbs. |
Oil Pump Cover Bolts | Engine Oil | 15 ft-lbs. |
Windage Tray | Engine Oil | 15 ft-lbs. |
Oil Pan | Engine Oil | 12 ft-lbs. |
Camshaft Thrust Plate | Engine Oil | 15 ft-lbs. |
Cam Sprocket/Timing Gear (upper) |
Thread Locker | 45 ft-lbs. |
Timing Cover to Block | Engine Oil | 35 ft-lbs. |
Water Pump to Cover | Engine Oil | |
Single Timing Cover to Intake bolt |
Install rubber o-ring with light RTV silcone | 10 ft-lbs. |
Valley Pan Bolts | Engine Oil | 15 ft-lbs. |
Intake Manifold Intake Manifold |
Non- Hardening Sealer | 40 ft-lbs. 25 ft-lbs. |
Valve Cover | Engine Oil | 8 ft-lbs. |
Exhaust Manifold | Anti-Seize Lubricant | 30 ft-lbs. |
Spark Plugs | No Lube or Sealer | 20 ft-lbs. |
Flexplate (Automatic) Flywheel (Clutch) |
Thread Locker | 95 ft-lbs. |
Clutch Pressure Plate | Thread Locker | 25 ft-lbs. |
Centerbolt (Harmonic Damper) |
Thread Locker | 160 ft-lbs. |
Bellhousing (Transmission to Block) |
Engine Oil | 40 ft-lbs. |
