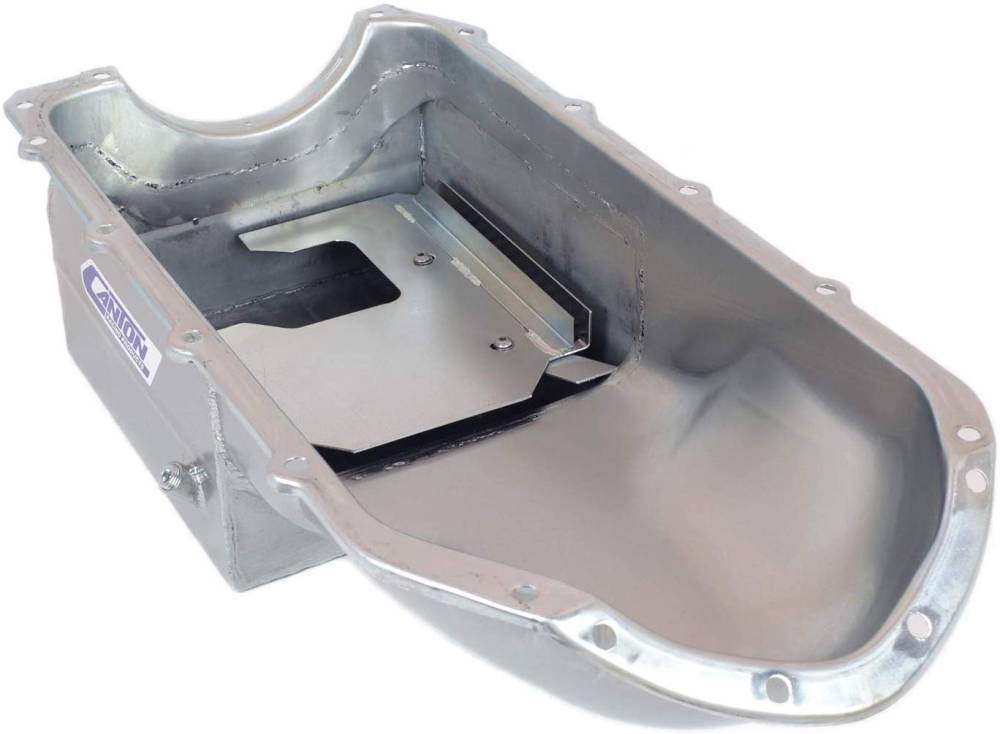

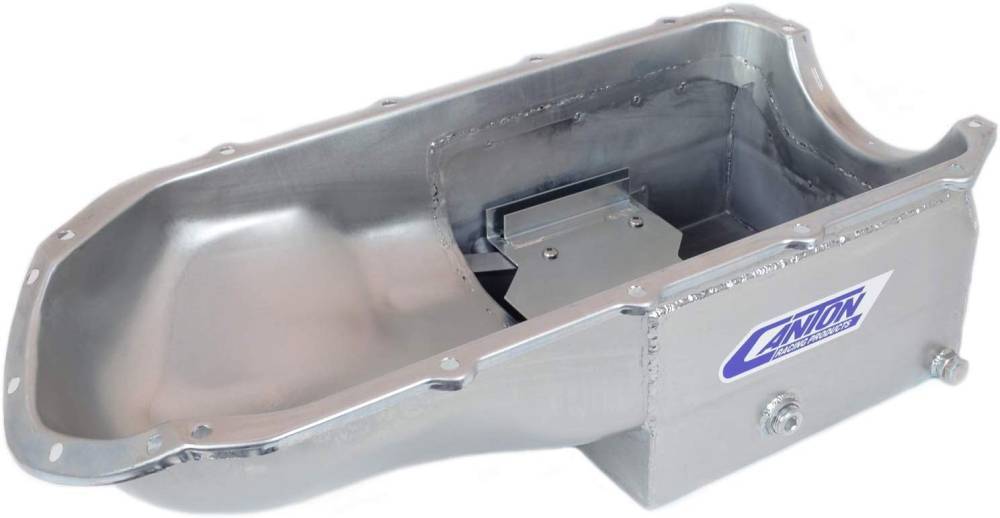

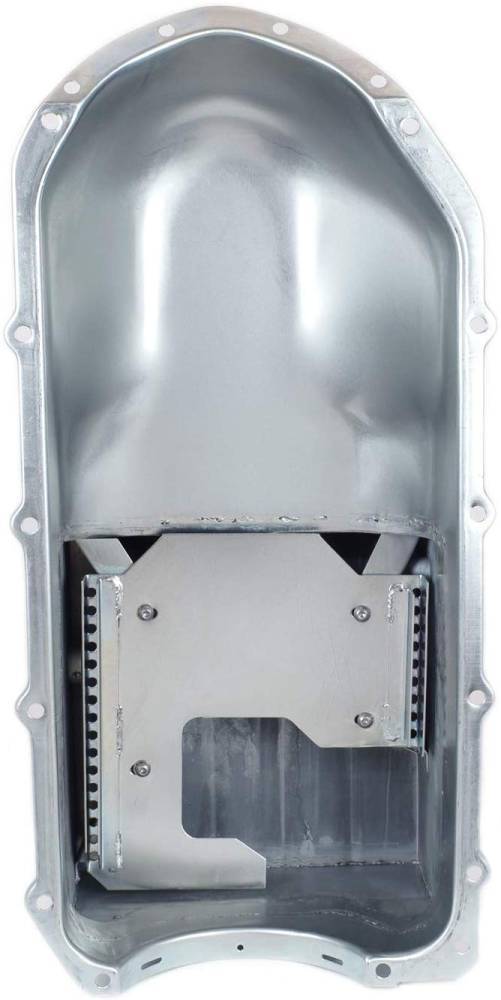

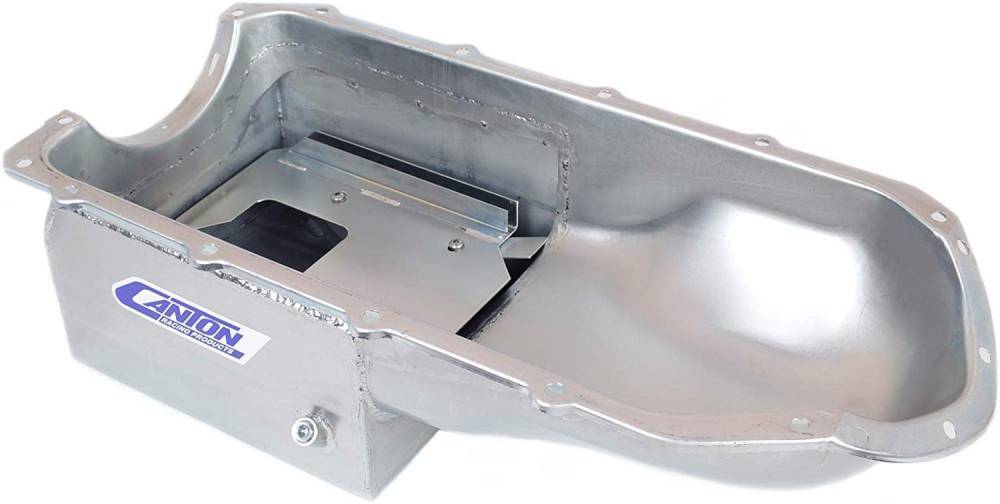

Canton Shallow Road Race Oil Pan CAN-15-450

SKU: CAN-15-450

Canton Road Race Pan / 6.5-7 quart with built in baffle and trap doors for excellent oil control (Low profile design for the better ground clearance)- specifically for '70-'81 Trans Am & Fire Bird) Requires 15-451 pickup

Availability:

Pricing: $449.00

Description
Details
Shipping
Reviews

Description

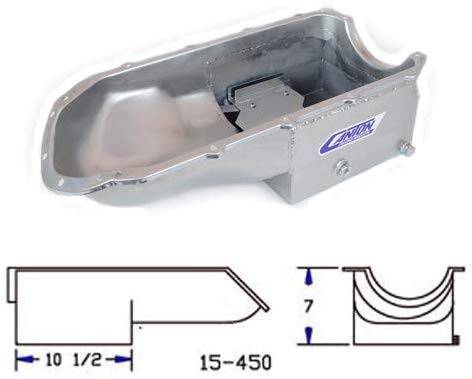

This shallow pan for Pontiac 301-455 engines and fits all popular chassis except G.T.O.s and ?67-?69 Firebirds. It has a 7" deep, 10-1/2" long sump for a 6 quart system capacity. Cannot be used with some stock exhaust systems (measure for clearance). This pan requires our 15-451 pickup. The Pan Features * 6 qt System Capacity * Triple Trap Door Baffle * Removable Windage/Anti-Slosh Baffle * 1/2" NPT Temperature Bung * Provision For Our Pan Mounted Dipstick * Magnetic Drain Plug

Butler Tech Library

Pan, Pickup, and Windage — Getting the Oiling Right

Pan depth, pickup height, and windage control all have to agree with your pump and your stroke. Our oiling guide covers how these pieces work together, and the oiling system diagram shows exactly where the oil goes.

Read the Oiling Guide ›
