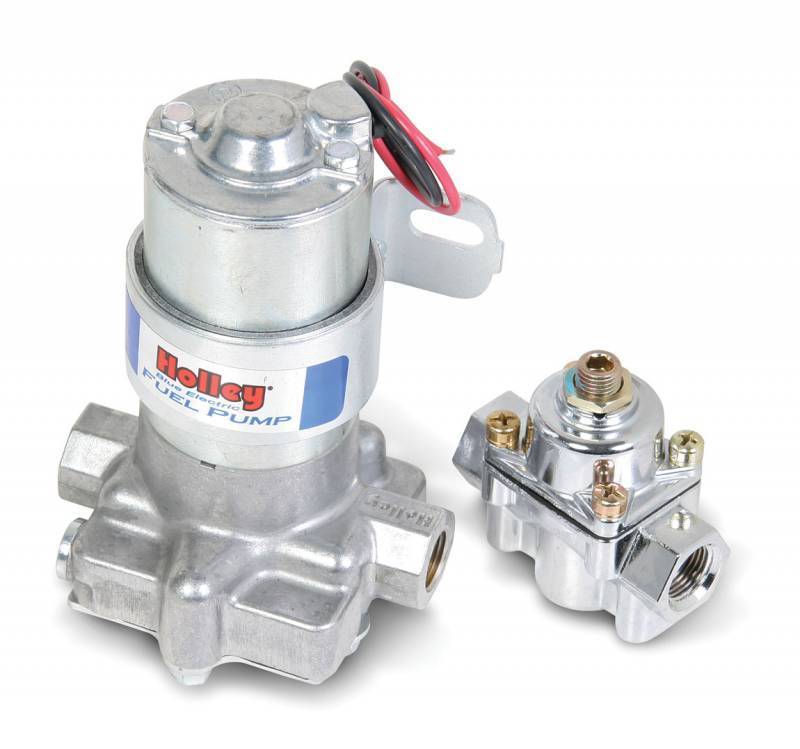

Holley 110gph Blue Electric Fuel Pump w/Regulator, Carbureted HLY-12-802

(0) Reviews: Write first review

SKU: HLY-12-802

Tumble polished billet look
Lower housing casting designed for enhanced fuel flow
Motor draws only 3 amps current
Relay kit P/N 12-753 & 7 1/2 amp fuse recommended
Improved design for street/strip applications
Distinctive “Blue” logo
Flows 110 GPH (free flow)
Flows 88 GPH at 9 psi
maximum pressure is 14 psi
Includes P/N 12-803 fuel pressure regulator
Provides constant fuel flow with no pulsation
Has externally accessible pressure relief valve (max 14 psi)
Rotor/vane pump design is more tolerant of contaminated fuels
Weighs only 3 lbs
Includes mounting bracket
Repair kits are readily available
Can be serviced from the pump end
Not compatible with alcohol or methanol fuels
Use of safety shut-off switch, P/N 12-810, strongly recommended
Not designed or recommended for use with fuel injection systems

Pricing: $217.95

Description

The world famous Red®, Blue® and Black® fuel pumps are the most recognized performance pumps of all times. They have been powering racing legends and street enthusiasts alike since the early 70's. Their time proven rotor/vane design is known to get the job done in an affordable package.

Specifications/Information

Application	Universal
Bracket color	Silver
Brand	Holley
Emission Code	3
Free Flow GPH	110
Free Flow LPH	416
Fuel System	Carbureted
Fuel Type	Gasoline
Inlet Size	3/8 inch NPT
Material	Aluminum
Motor Finish	Silver
Outlet Size	3/8 inch NPT
Product Type	Fuel Pump
Pump Body color	Silver
