FAST EZ-EFI 2.0® Self Tuning Engine Control System • Carb-to-EFI Master Kit w/upgraded Aeromotive Fuel System (In-Tank Pump), FAS-30401-KIT

FAS-30401-KIT-AER-PUMP
In-Tank Fuel Pump Master Kit includes everything needed for a carb-to-EFI conversion including a 1200 HP-capable return or returnless capable fuel system.
Includes Aeromotive Phantom 200 Stealth In Tank Fuel Pump Kit
EZ-EFI 2.0 Self Tuning Engine Control System
Base Kit (No fuel System)
No Experience, Dyno, or Laptop Required
Most Advanced Self Tuning EFI Kit on the Market
Easy to Setup
Requires 8 inches of manifold vacuum
Pricing: $3,129.95

Qty:
Free Shipping!

Description

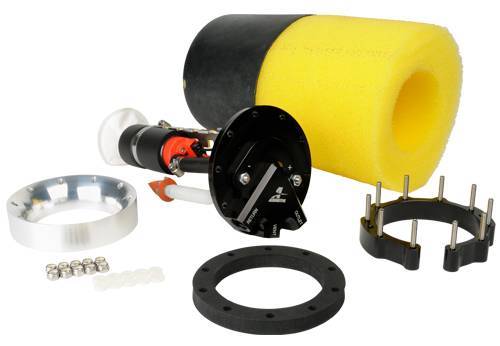

Aeromotive Phantom 200 Stealth In Tank Fuel Pump Kit AER-18689

Features and Specifications:

• 200 lph high performance fuel pump
• Supports up to - 450 HP EFI - Forced Induction - 600 HP EFI - Naturally Aspirated - 600 HP Carbureted - Forced Induction - 750 HP Carbureted - Naturally Aspirated
• Black anodized hanger assembly
• (3) ORB-06 Ports – Supply, Return, Vent
• Fuel resistant baffle / basket (Includes: Foam and Bladder)
• Universal high flow pre-pump filter • Modular design can be cut to height to fit almost any fuel tank
• EFI or Carbureted
• Turbine pump mechanism increases durability.
• Must be used with a return style system
• In-tank use only


Best Performing, Easiest to Setup, & Most Advanced Self Tuning EFI Kit on the Market. No Experience, Dyno, or Laptop Required.

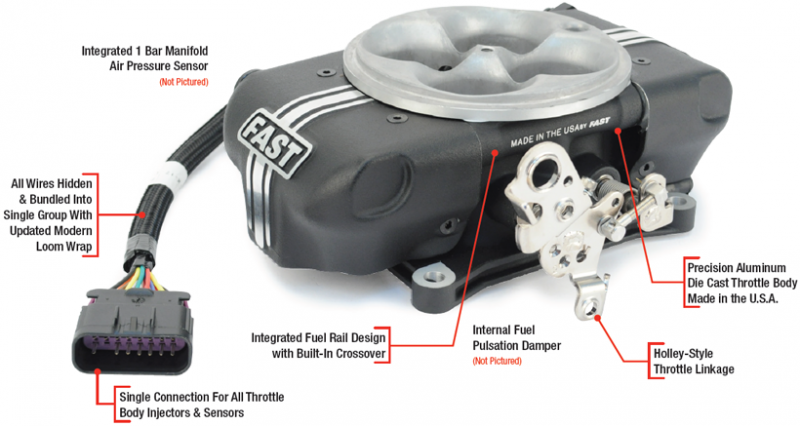

The original FAST™ EZ-EFI® changed self-tuning fuel injection forever with the industry’s easiest carburetor-to-EFI conversion option. Now the EZ-EFI 2.0® has been upgraded with more features than ever before, while maintaining its ease of use that doesn’t require a laptop or tuning experience. It simply tunes itself as the user drives. Its eight-injector, die cast throttle body features late-model OEM sensors for accuracy and durability, includes ignition timing control and is able to run E85, E98 and E15 ethanol-blend fuels while competing versions cannot. It flows more air than the first generation EZ-EFI® throttle body due to an improved inlet, while a new secondary shaft throttle stop adjustment provides even more precise idle airflow adjustment and balance. Meanwhile, an industry exclusive and unique-to-FAST™ integrated fuel pulse damper creates ultra-precise fuel control. The EZ-EFI 2.0® also incorporates needle-bearing supported shafts instead of bushings, and an integrated fuel rail design with crossover for tighter packaging. Setup includes the market’s fewest connection wires, including a new high-quality wiring harness and a sleek mesh-type loom.

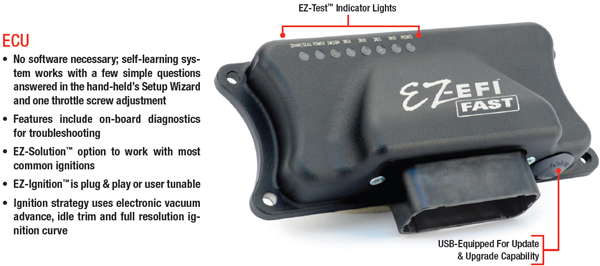

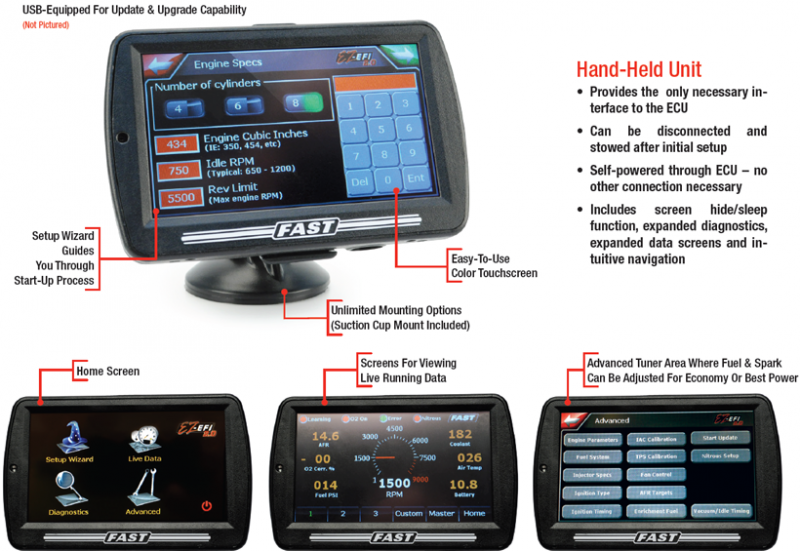

The EZ-EFI 2.0® has an updated hand-held as well, featuring a color touch screen and an LED diagnostic feature that includes on-board diagnostics and EZ-Test™ Indicator Lights. Self-powered through the ECU, it shares the same mounting points as the Garmin Nuvi GPS, meaning there are nearly limitless mounting options. The FAST™ EZ-EFI 2.0® works with either generation of EZ-EFI® throttle body, multi-port systems, dual quad systems and Inglese™ throttle bodies, and is compatible with multiple fuel pump options including in-tank, inline, high-horsepower inline, return style and return-less style. Electronic fuel pressure measurement is standard on all kits, and each one works with a wet nitrous system. The EZ-Ignition™ features an EZ-Solution™ option, meaning that it can work with most common ignition systems, while precision control requires a FAST™ distributor or crank trigger. EZ-EFI 2.0® is 100 percent designed and engineered by FAST™ and includes a limited lifetime warranty backed by the industry’s most extensive technical support team.

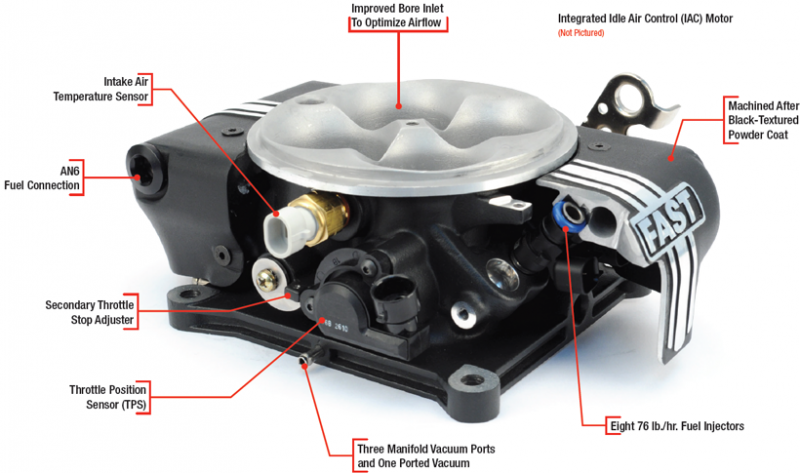

  • Higher flowing & higher HP capable 8 injector throttle body
  • Updated hand-held features the industry’s only multi-color high-tech touch screen display with Garmin
  • GPS-Style suction cup mount
  • Market’s fewest connection wires with sleek OEM quality wiring harness w/mesh-type loom
  • Able to run E85, E98 & E15 ethanol-blend fuels as opposed to competitor versions that cannot
  • Compatible with in-line & return or returnless in-tank fuel pumps
  • Fuel pulse damper creates extremely precise fuel control that always allows a returnless in-tank pump fuel system to be used. No charts or questions to qualify for returnless like other competitors.
  • EZ-Solution™ option to allows integration with most common ignition systems
  • Works with wet nitrous systems; nitrous timing retard and special nitrous A/F ratio targeting
  • Includes limited lifetime warranty & backed by the industry’s most extensive technical support
  • Requires 8 inches of manifold vacuum

  • Kit includes custom Butler fuel system. We use the FAST in-tank fuel system kit but remove the fuel pump and upgrade to the higher quality Aeromotive Phantom 200 Stealth In Tank Fuel Pump at a discounted price

    Videos


    Media

    **See the link below for article on our first test of the New EZ EFI 2.0 Kit for F.A.S.T.**
    http://www.enginelabs.com/news/early-dyno-test-with-fast-ez-efi-2-0-shows-power-increase/

    Kits Available

    PART
    DESCRIPTION

    CCA-30400-KIT

    EZ-EFI 2.0 Self Tuning Engine Control System, Base Kit w/ 4 BBL Throttle Body

    CCA-30401-KIT
    EZ-EFI 2.0 Self Tuning Engine Control System, Master In-Tank Pump Kit w/ 4 BBL Throttle Body
    CCA-30402-KIT
    EZ-EFI 2.0 Self Tuning Engine Control System, Master In-line Pump Kit w/ 4 BBL Throttle Body

    Details

    • FAS-30401-KIT-AER-PUMP
    • FAS-30401-KIT-AER-PUMP
    • F.A.S.T.
    • New

    Shipping Information

    • Item Requires Shipping
    • 26.0 lbs.
    • Free Shipping!
