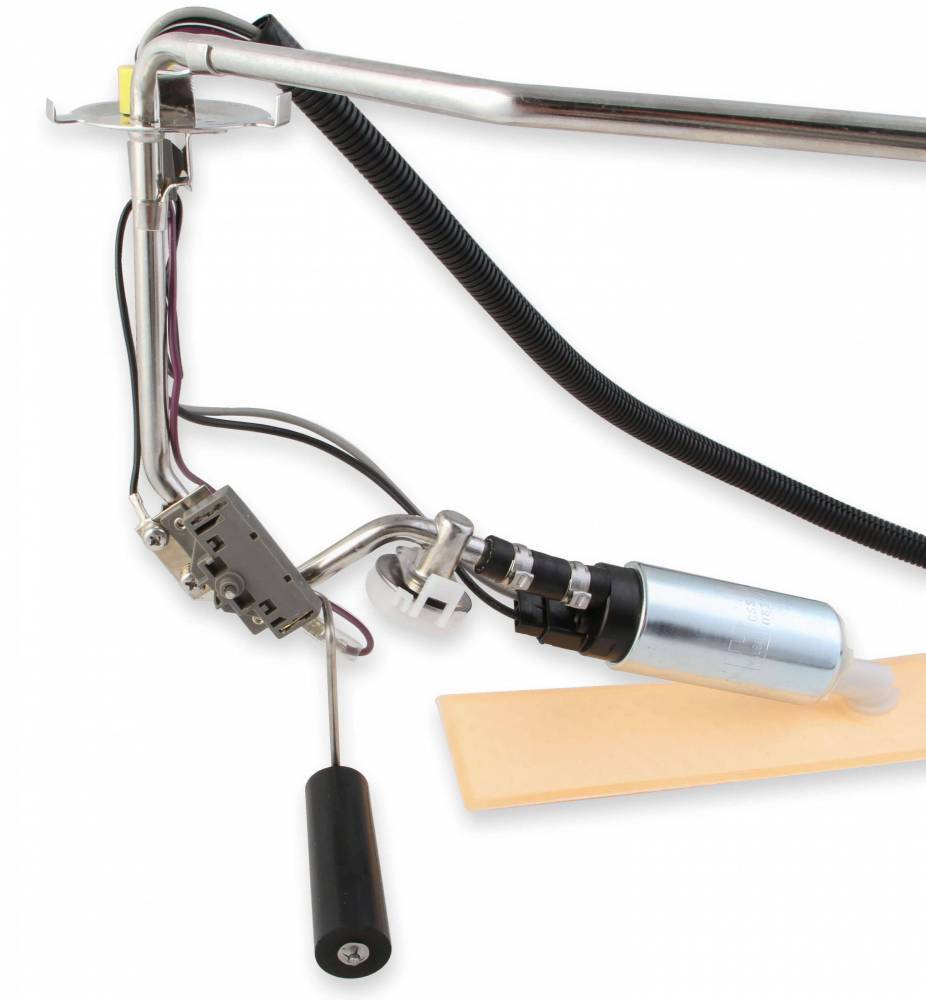

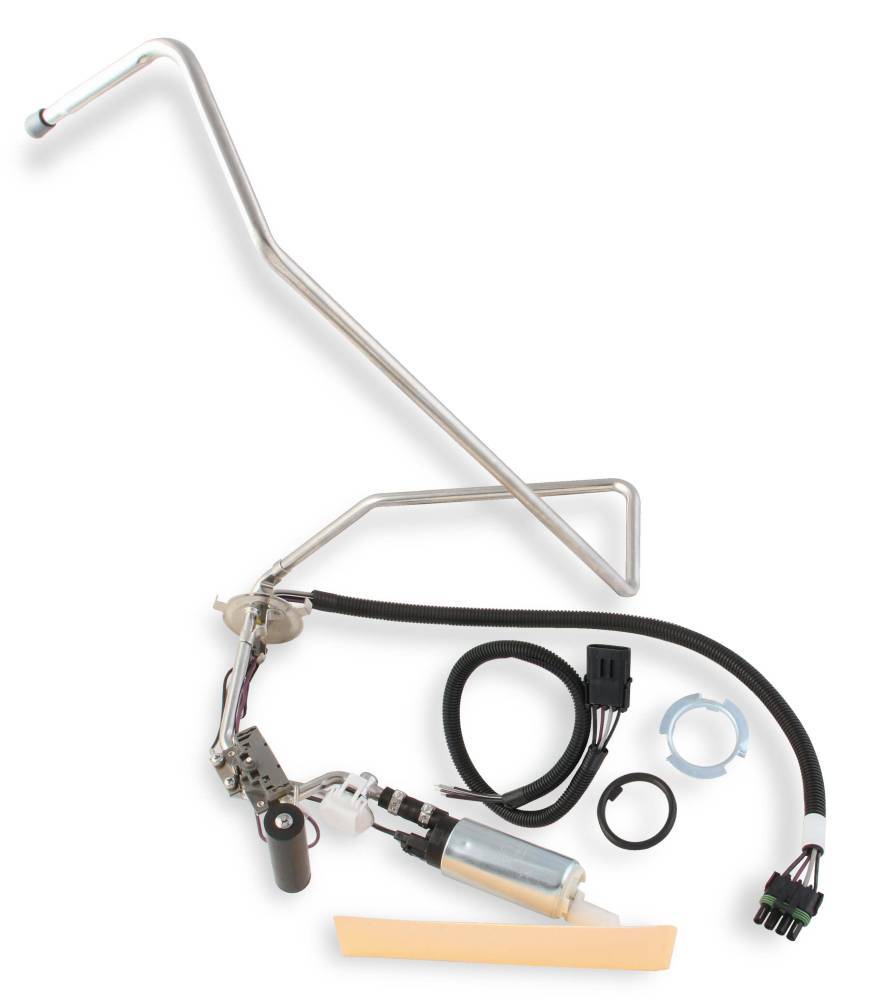

Holley 255 LPH OEM Style EFI Fuel Tank Module, 1974-81 Firebird/Trans AM, Direct Bolt In
HLY-12-304
In-tank fuel pump module (direct bolt-in) is a high-pressure unit that flows 255 liters per hour (LPH) and is capable of supporting electronic fuel injection (EFI) engines producing up to 550 horsepower
Was:
$455.95
Sale:
$410.36
Description
• This in-tank fuel pump module is a high-pressure unit that flows 255 liters per hour (LPH) and is capable of supporting electronic fuel injection (EFI) engines producing up to 550 horsepower
• A pre-calibrated fuel-level sending unit designed to work with the factory fuel gauge for this application is included
• This module also features a HydraMat filter which has a unique internal reservoir that keeps fuel available at the pick-up and also provides protection from contaminates
Fuel pressure is internally regulated to 58 psi eliminating the added expense and effort of purchasing and installing an external fuel pressure regulator - no separate return line is required because this module returns excess fuel right inside the tank! This 1977-81 F-body Muscle Car EFI Fuel Pump module was designed as a direct replacement for your factory pick-up and sending unit. There is no need to purchase a custom EFI fuel tank. You can even retain the factory fuel hard line - just connect the outlet of the pump module to the hard line on your vehicle with EFI-rated fuel hose and hose clamps available in the Earls Vapor Guard line. This Muscle Car EFI Module includes a 255 LPH fuel pump and a Holley HydraMat. HydraMat is an amazing patent-pending fuel reservoir system that reduces fuel starvation issues that might otherwise occur while cornering, accelerating, stopping, traversing inclines, and during low fuel conditions.
• A pre-calibrated fuel-level sending unit designed to work with the factory fuel gauge for this application is included
• This module also features a HydraMat filter which has a unique internal reservoir that keeps fuel available at the pick-up and also provides protection from contaminates
Fuel pressure is internally regulated to 58 psi eliminating the added expense and effort of purchasing and installing an external fuel pressure regulator - no separate return line is required because this module returns excess fuel right inside the tank! This 1977-81 F-body Muscle Car EFI Fuel Pump module was designed as a direct replacement for your factory pick-up and sending unit. There is no need to purchase a custom EFI fuel tank. You can even retain the factory fuel hard line - just connect the outlet of the pump module to the hard line on your vehicle with EFI-rated fuel hose and hose clamps available in the Earls Vapor Guard line. This Muscle Car EFI Module includes a 255 LPH fuel pump and a Holley HydraMat. HydraMat is an amazing patent-pending fuel reservoir system that reduces fuel starvation issues that might otherwise occur while cornering, accelerating, stopping, traversing inclines, and during low fuel conditions.
Specs
Application 1974-81 Camaro/Firebird
Brand Holley
Emission Code 5
Free Flow LPH 255
Fuel Sending Unit Ohms 0-90 Ohms
Fuel Type Gasoline
Inlet Diameter (in) 5/16"
Product Type Fuel Pump Module
Vent Size N/A
Warranty Limited 90 Day
Part Number 12-304
Brand Holley
Emission Code 5
Free Flow LPH 255
Fuel Sending Unit Ohms 0-90 Ohms
Fuel Type Gasoline
Inlet Diameter (in) 5/16"
Product Type Fuel Pump Module
Vent Size N/A
Warranty Limited 90 Day
Part Number 12-304
