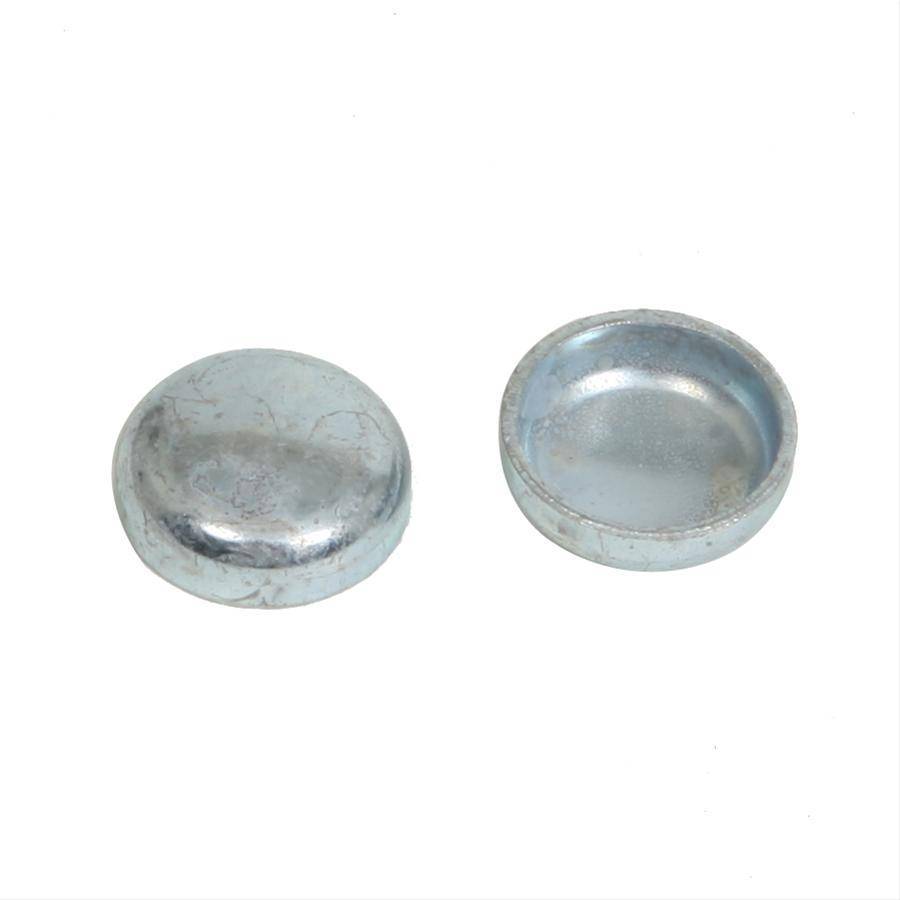

Pontiac 9/16 Press In Oil Galley Plug for Front of Block, Set/2

PIO-EPC48-2
Front of the block behind the timing cover — 9/16" press-in plugs for the front end of both main oil galleys. Set of two, one per galley. Same holes can be tapped 3/8" NPT instead.
Availability:
Pricing: $3.95
Qty:

Description

Seals the front end of both main oil galleries. These sit behind the timing cover, one per galley, and this is the factory press-in plug.

The same two holes can be tapped for 3/8" NPT instead, which is a popular insurance step on a high oil pressure build — a press-in plug that works loose can push out and dump oil internally. It is one location with two ways to seal it; the 3/8" NPT plug is not an extra plug somewhere else. Use short-length pipe plugs if you go that route, because a taper threaded in too far will choke the galley.

Butler Tech Library
Every Plug in a Pontiac Block
Size, location and part number for every plug position on a factory iron block — including the hidden drilled galley plug that causes passenger-side lifter clatter when a shop leaves it out.
Read the Block Plug Guide ›

Details

  • PIO-EPC48-2
  • PIO-EPC48-2
  • Pioneer Automotive
  • New

Categories

Shipping Information

  • Item Requires Shipping
  • 0.1 lbs.
