Butler Performance Complete EFI Solution Kit w/ FiTech Go 4, EFI Ready Fuel Tank w/Complete In-Tank Fuel System

Description

The Go EFI 4 Self Tuning Fuel Injection is rated at 600 HP but is suitable for engines from 200hp thru 600hp. This system is perfect for your everyday Driver right up to your weekend Street Machine or Bracket Racer. It features the FASTEST most accurate Self Learning available, Timing control, Wet flow Annular discharge and tons of additional features.

It fits any 4-bbl intake manifold and is the most self-contained and full-featured unit of this type. The ECU (computer) is mounted on the throttle body, which greatly simplifies installation. No hole in your firewall and no unsightly harness draped across your engine. This is also the only computer mounted throttle body that offers spark control without the need for an external spark box or special distributor. It also has a built-in fuel pressure regulator. A hand-held controller features a touch screen for quick and easy initial set-up.

• Application: Engines making 200 HP up to 600 HP with a 4-barrel intake manifold.
• Replacement for any 4-barrel carburetors for engines with 200 HP up to 600 HP.
• Use the same size air cleaner you would normally use for your 4-barrel carburetor.

Not legal for use on pollution controlled vehicles. This system is designed to be installed into vehicles that do not require emission controls.

Features

• 1 BAR internal MAP sensor.
• Suitable for up to 600hp.
• (4) Flow matched injectors.
• (1) Fan control.
• Built-in pressure regulator.
• Matte black finish.

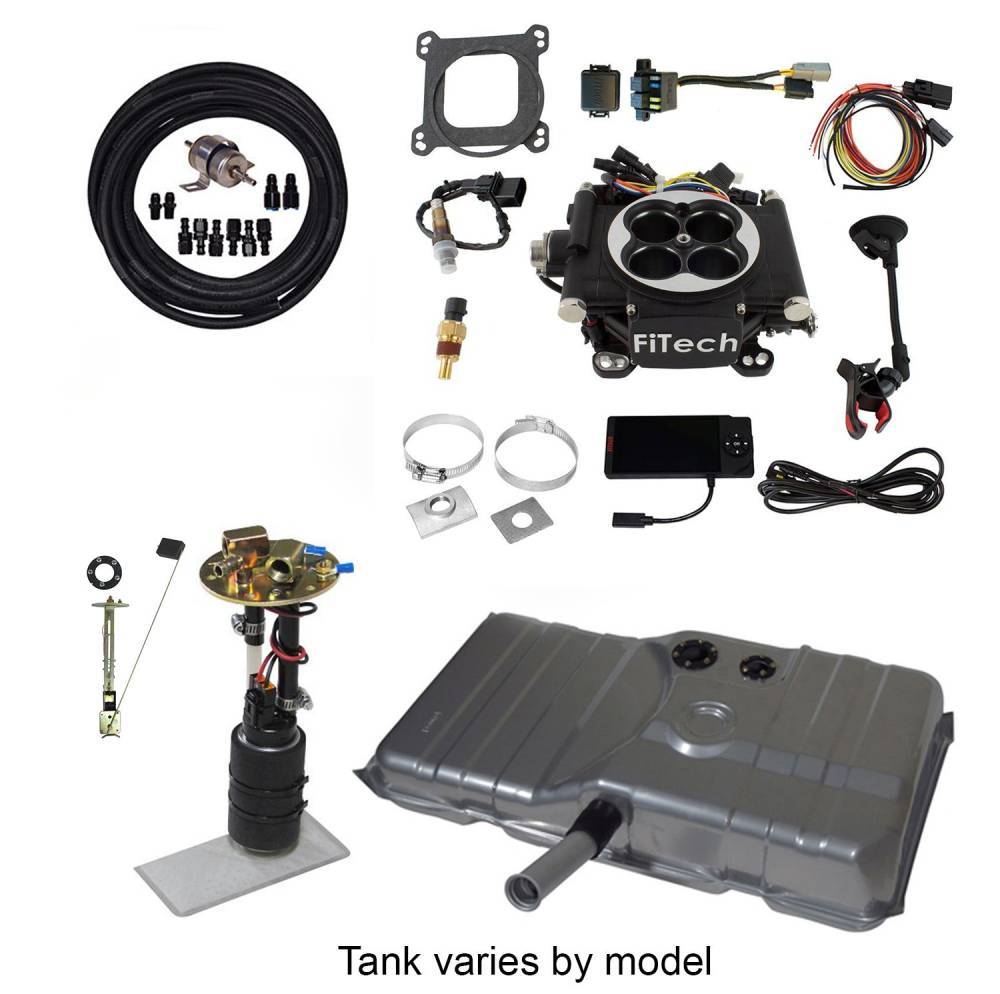

Kit Contents

• (1) Die-cast throttle body.
• (1) O2 bung kit.
• (1) Hand-held controller.
• (1) CTS sensor.
• (1) Hand-held controller cable.
• (1) CTS adapter.
• (1) Windshield mount.
• (1) Mini USB cable.
• (1) 4+2-Pin Connector.
• (1) Return plug.
• (1) O2 sensor.
• (1) Gasket kit.

Fuel Tank

• Fuel Injection Ready!
• Includes stub neck to attach to your original neck with supplied 2" ID connector hose.
• Includes our GPA series fuel pumps 255lph
• 0-90 ohm sending unit.
• EFI style internal baffling. Extra Large internal fuel tray to prevent fuel pump starvation.
• Perfect for your Pro-Touring, Autocross or Road Racing Ride
• Fuel pump and sender are recessed in the tank for easy installation with no modification needed to your car.
• Looks line an OE tank when installed.
• Galvanized steel then Powder Coated Silver

Includes Billet Pontiac Fuel Pump Block Off Plate

Fuel Line Kit- Choose from options below

• Quick Lock Russel EFI Rubber Hose and hose ends, Fittings and quick connect fuel filter
• Russel Proflex or Proclassic hose and hose ends, fittings, and Holley Billet 10 micron Post Fuel Filter
