1967 to 1969 Pontiac Firebird 1st Gen F-Body Shroud Kit for Cold Case CHC11 or CHC547 Dual 12" Fans

(0) Reviews: Write first review
FMO-SHRD-67-69FB-KIT
Ultimate Cold Case Radiator Fan and Shroud Upgrade Kit, Spal 2900cfm+
Availability:
Pricing: $1,179.00

Customize Your Item

- Choose Your Finish -
 * required
Qty:

Description

This shroud is designed for 1967 through 1969 Pontiac Firebird's using Cold Case radiator core CHC11A to mount Dual 12 inch fans.

Kit incl

udes:

  • (2) 12" Spal Puller fans (CFM output is 1451 per fan)

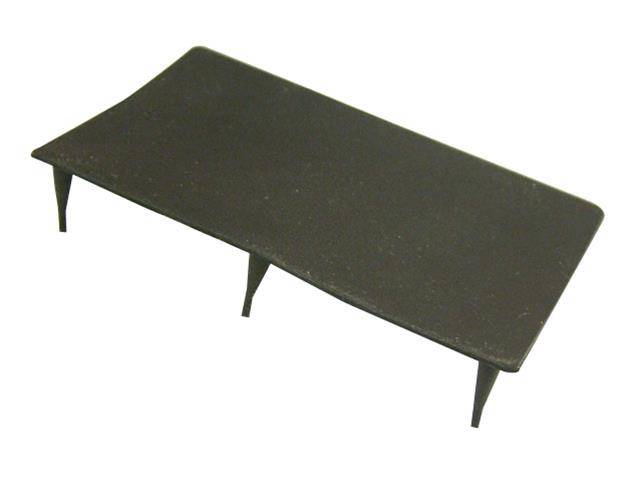

  • (6) Rubber flap doors
  • Stainless Hardware

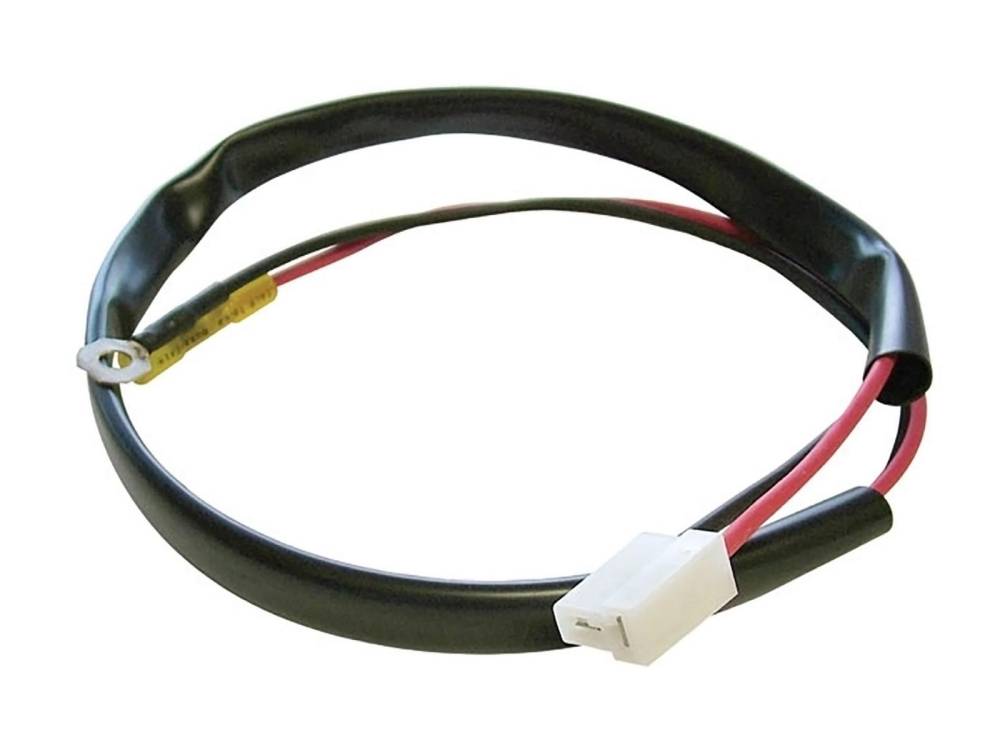

  • (2) Spal Pigtails

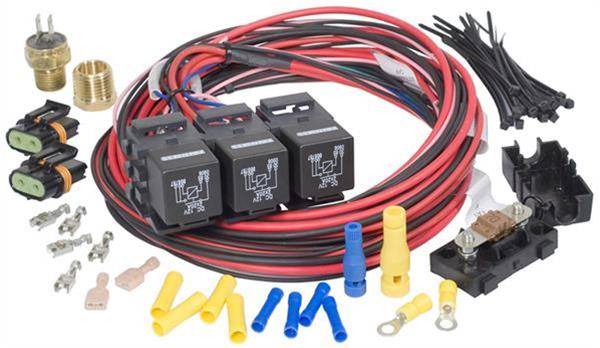

  • Painless dual wiring harness 195 degrees on 185 degrees off.

Shroud Custom Designed by Fast Monty and manufactured by SendCutSend.  Stocked and shipped from Butler Performance

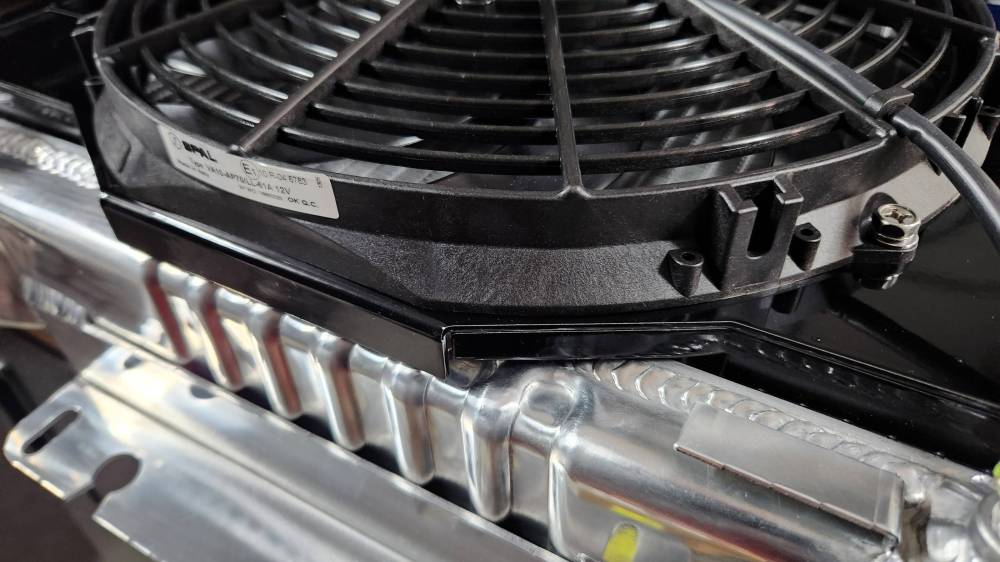

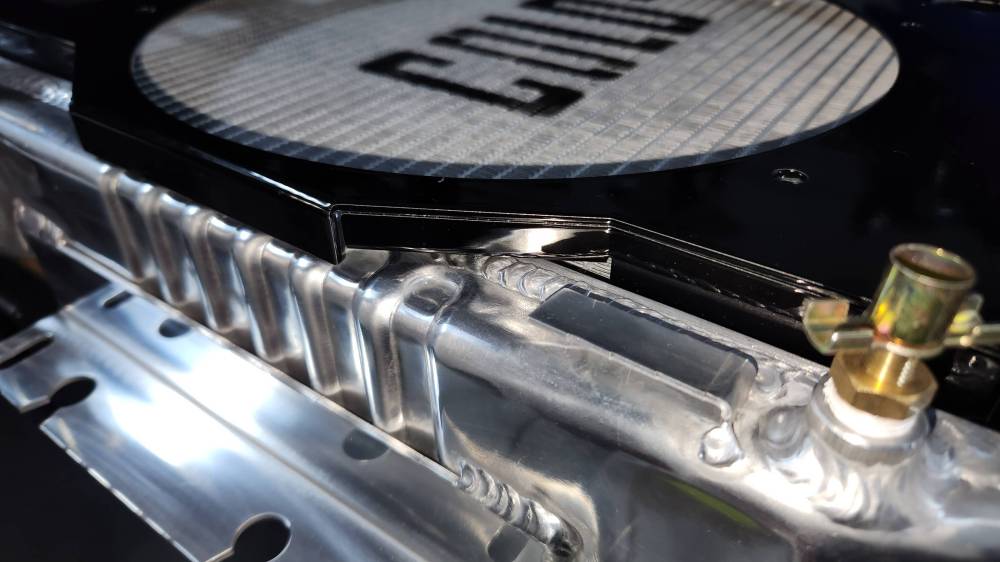

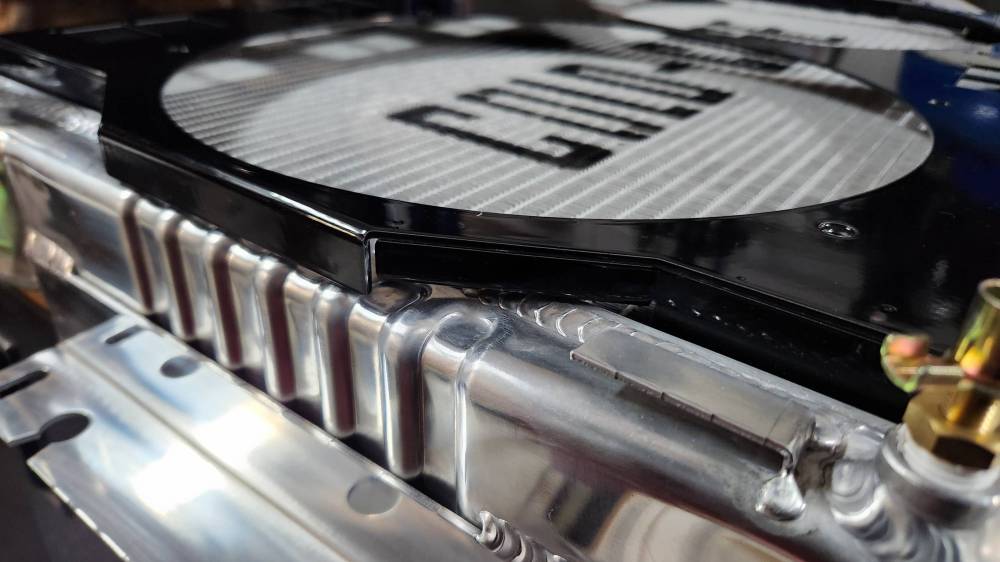

This shroud is a three piece design due to the "Down Flow" style radiator.  There are a total of 12 threaded holes, 8 for the fans, and four for the side brackets.  All are M6x1.

Stocked in Raw Aluminum. Powder Coated lead time is around 2-3 weeks to ship.

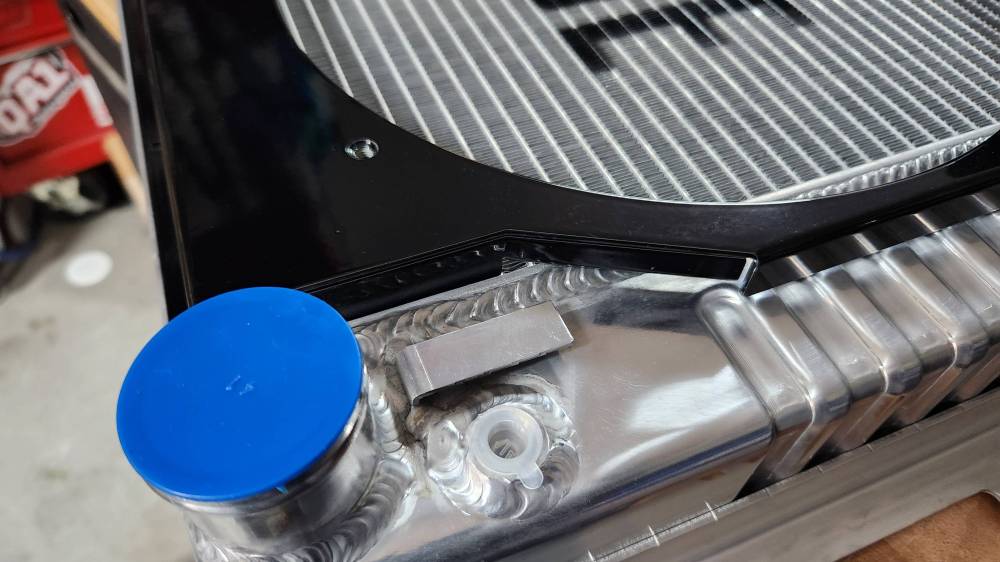

The Raw Aluminum version will have witness marks, as pictured near the bends, most of which can be removed with a Magic Eraser, or scuff the entire surface with Red Scotch Brite for a uniform look. Or course, painting is an option too.

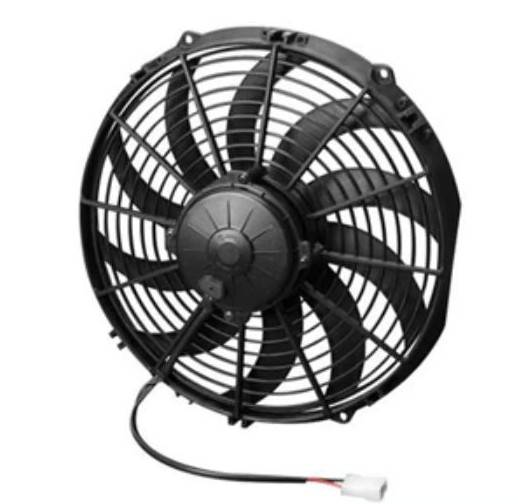

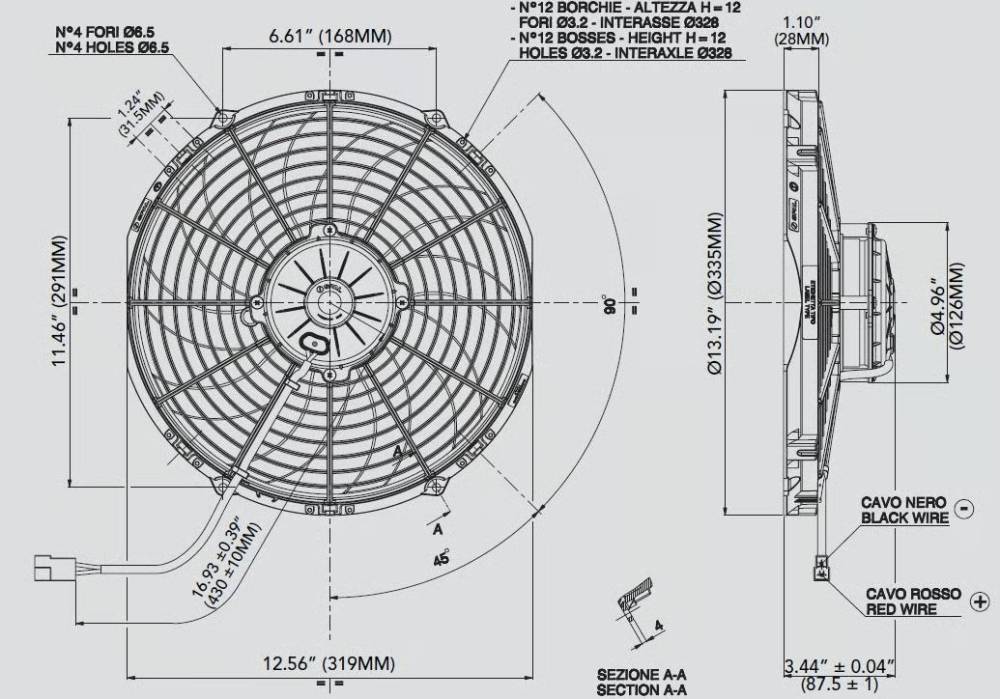

Spal Fan Specs

Puller:
Yes
Pusher:
No
Fan Diameter (in.):
12.00 in.
Fan CFM Range:
1,400-1,499
Maximum Fan CFM:
1,451 cfm
Fan Quantity:
Single
Electric Motor Type:
Brushed
Height (in.):
13.190 in.
Width (in.):
12.560 in.
Thickness (in.):
3.440
Number of Blades:
10 blades
Blade Material:
Plastic
Blade Color:
Black

Amp Draw:
14.50 amps

Does not include the Cold Case Radiator

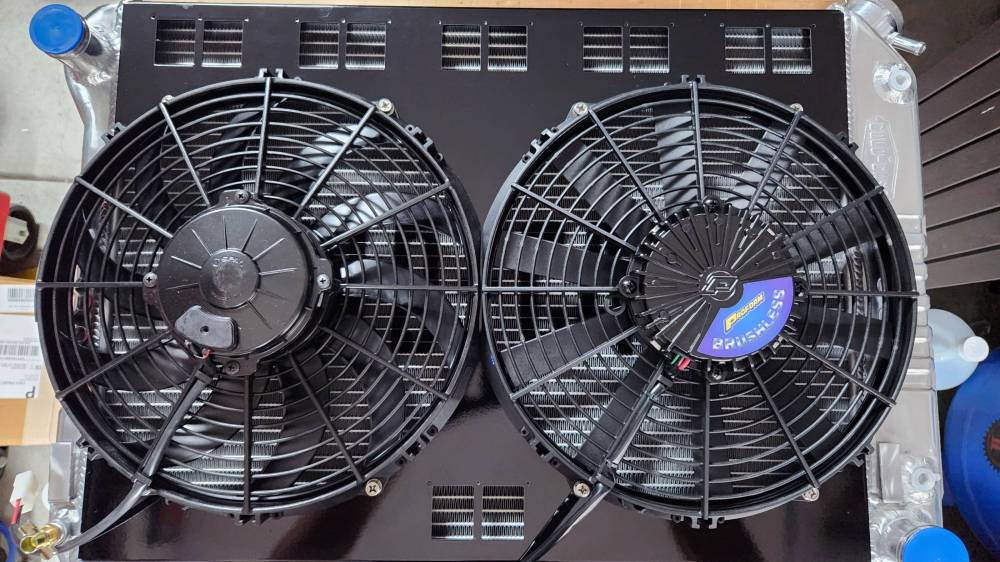

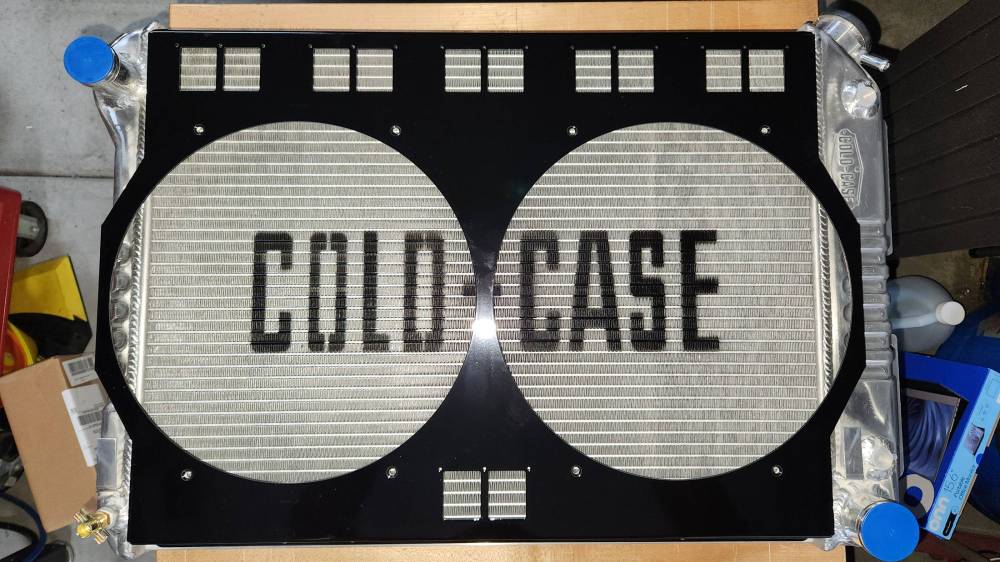

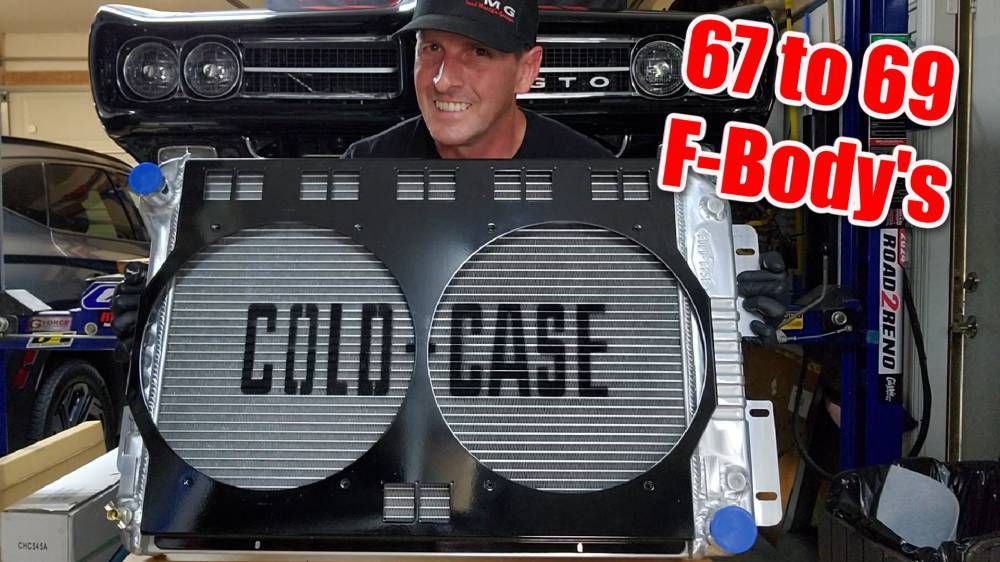

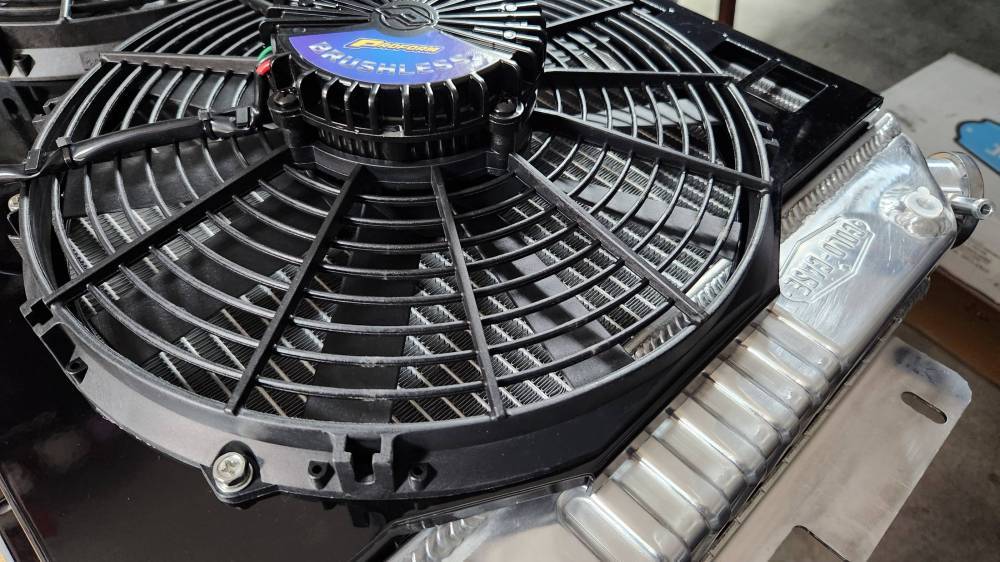

Shown in optional Black Finish and may be shown with Proform Fans
Butler Tech Library
Running Hot? Start Here.
Cooling has always been a challenge on performance Pontiacs, and the radiator is usually not the whole story. Our guide walks through the real causes and how to find yours.
Read the Cooling Guide ›

Details

  • FMO-SHRD-67-69FB-KIT
  • FMO-SHRD-67-69FB-KIT
  • Butler Performance
  • New

Categories

Shipping Information

  • Item Requires Shipping
  • 20.0 lbs.
  • W25.0000” x H20.0000” x L6.0000”
