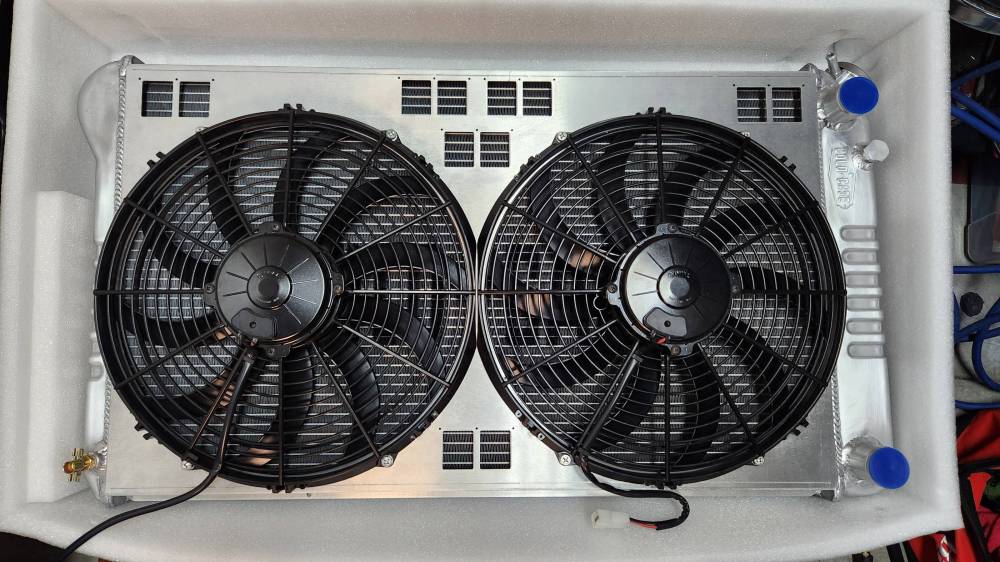

1968 to 1977 Pontiac A-Body dual 14 inch Fan Shroud Kit for ColdCase GMA42

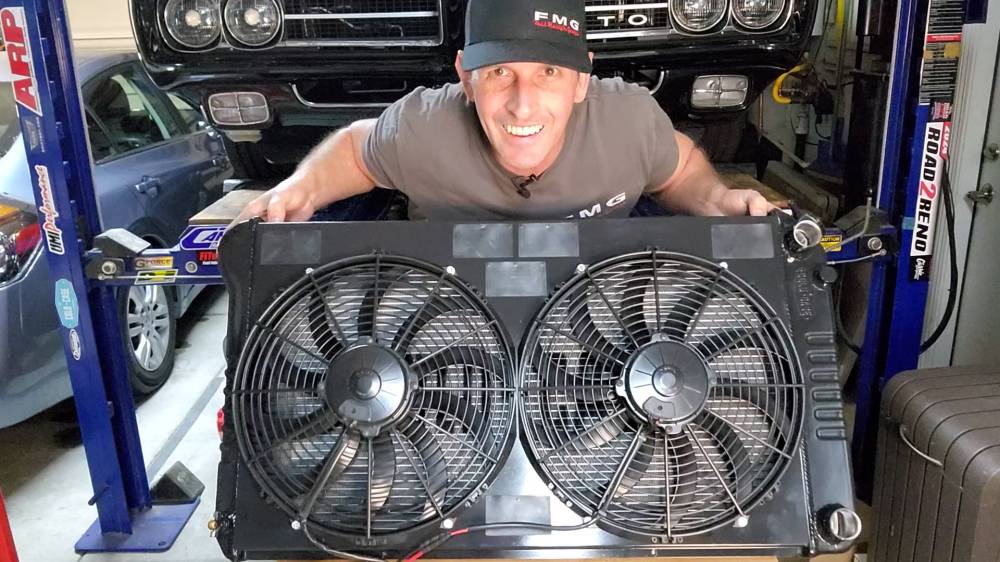

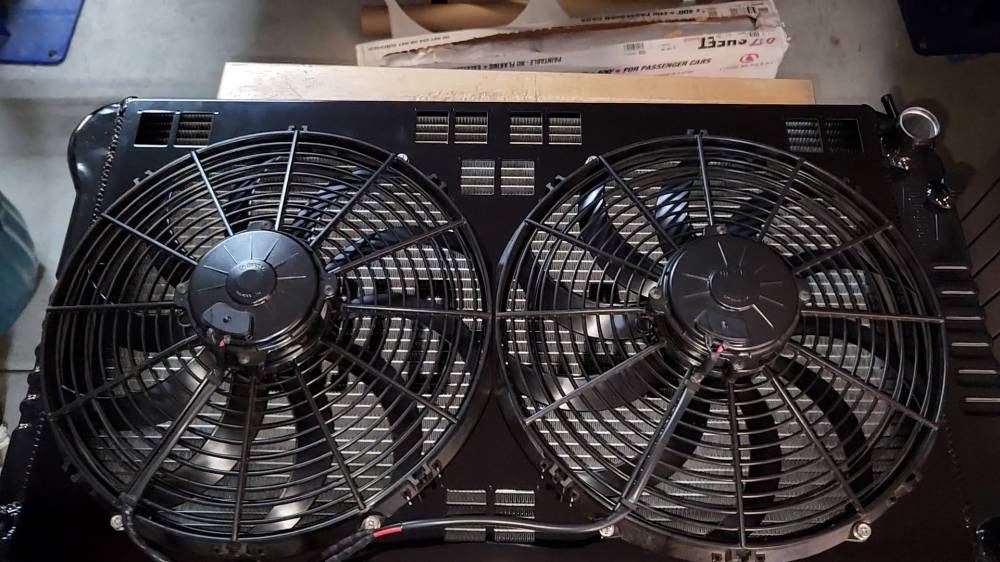

This shroud is designed for 1968 through 1977 GM A-Body Cold Case radiator cores (GMA42's) with dual Spal 14" Fans

Kit includes:

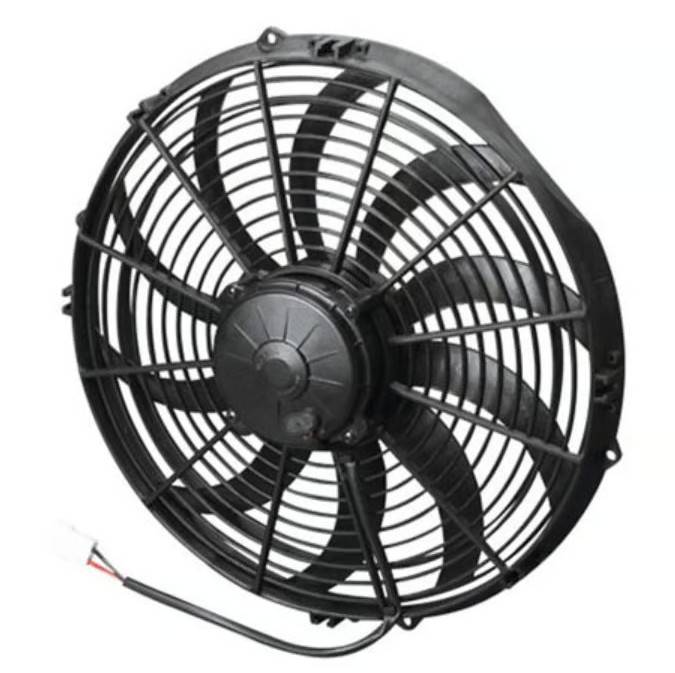

• (2) Spal Puller fans (CFM output is 1864 per fan)

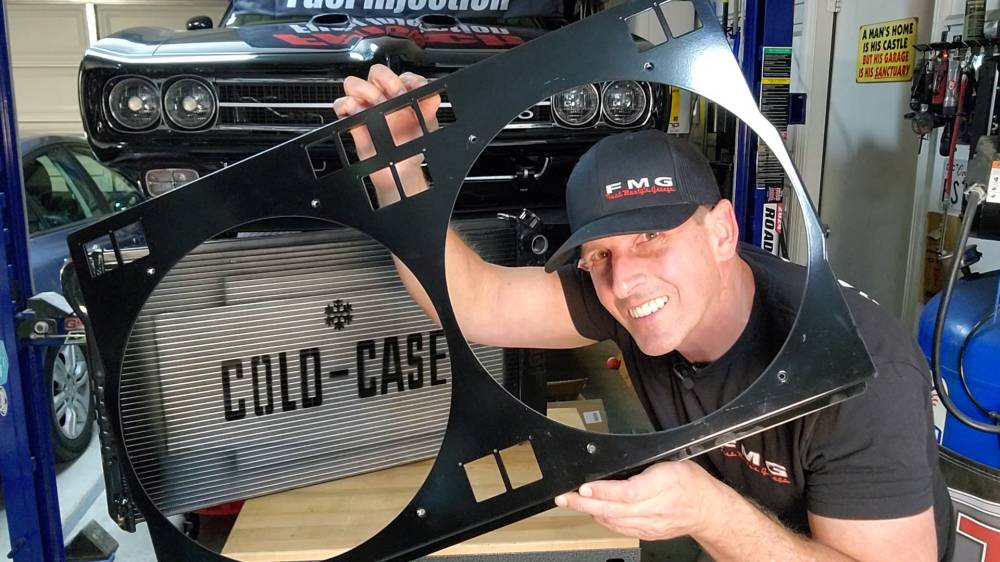

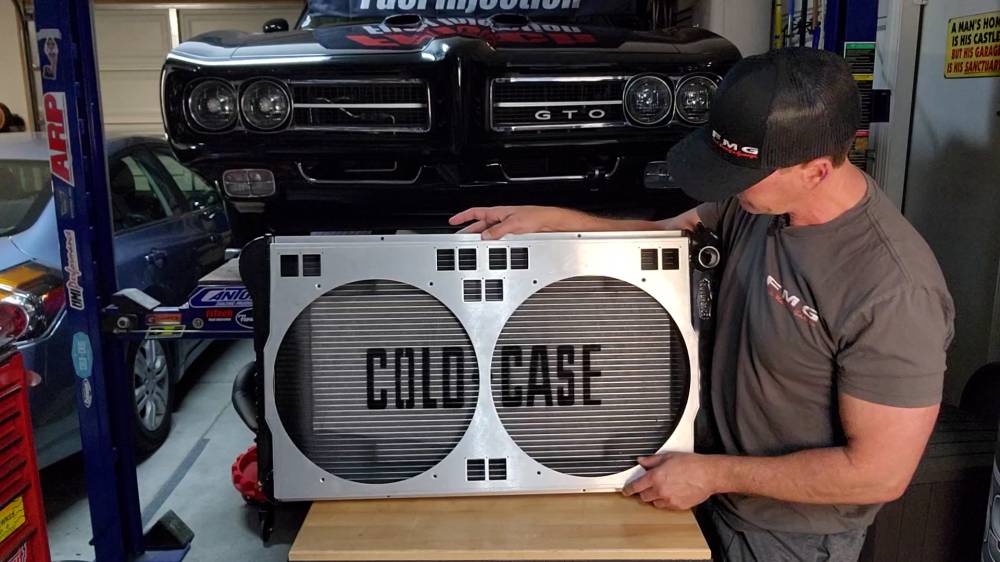

• Custom Designed Shroud

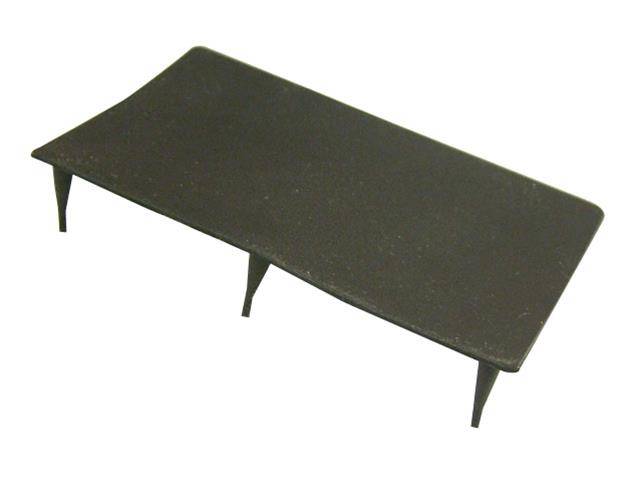

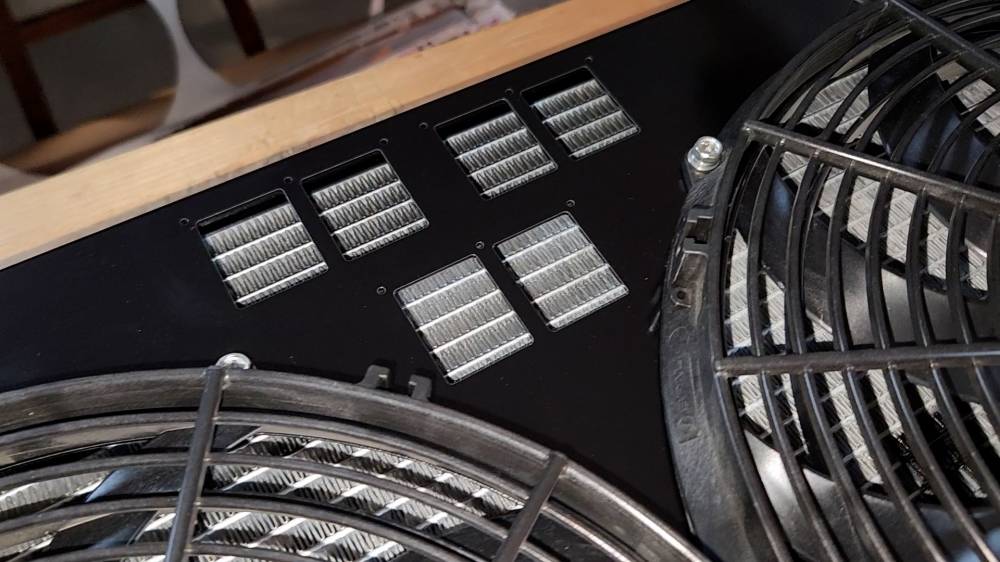

• (6) Rubber flap doors
• Stainless Hardware

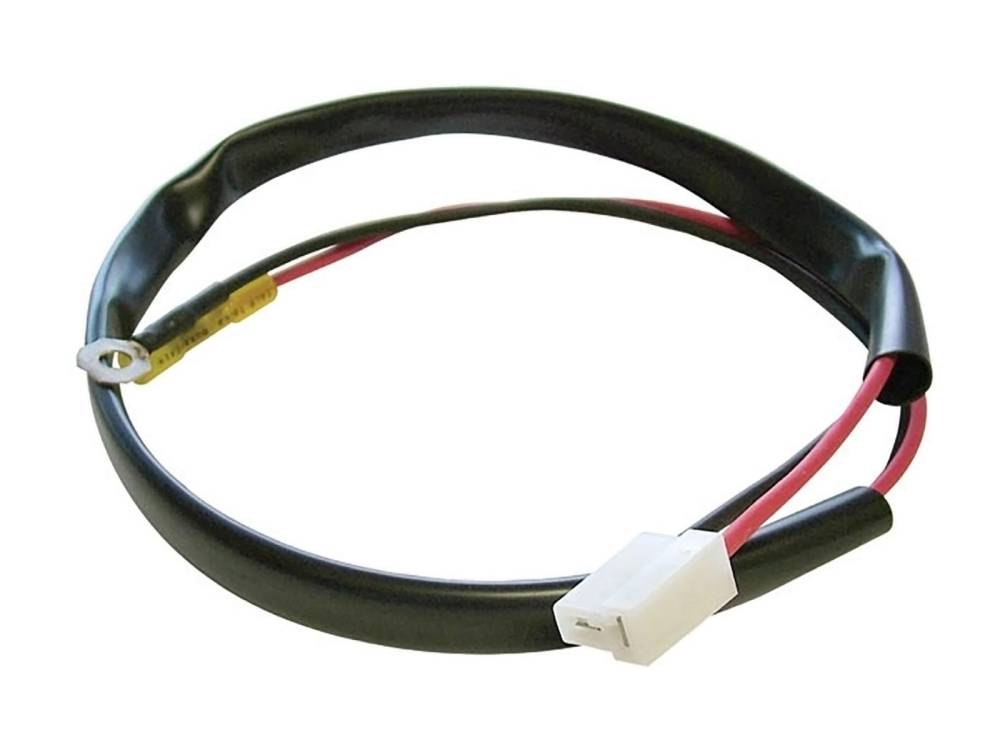

• (2) Spal Pigtails

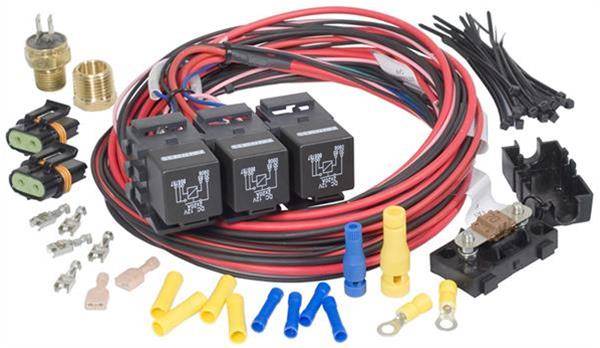

• Painless dual wiring harness 195 degrees on 185 degrees off.

Shroud Custom Designed by Fast Monty and manufactured by SendCutSend.  Stocked and shipped from Butler Performance

This shroud is a three piece design due to the "Down Flow" style radiator.  There are a total of 12 threaded holes, 8 for the fans, and four for the side brackets.  All are M6x1.

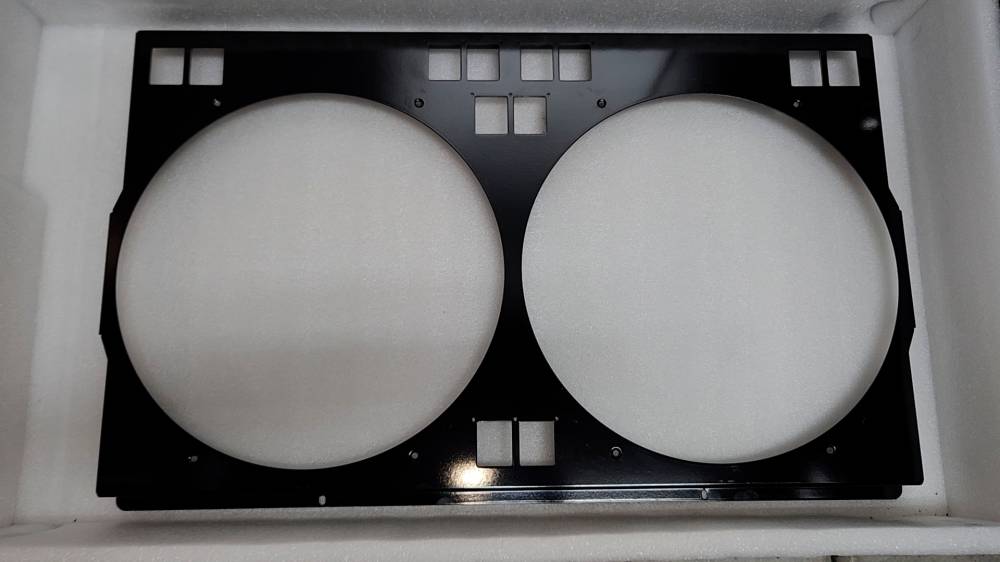

Stocked in Raw Aluminum. Powder Coated lead time is around 2-3 weeks to ship.

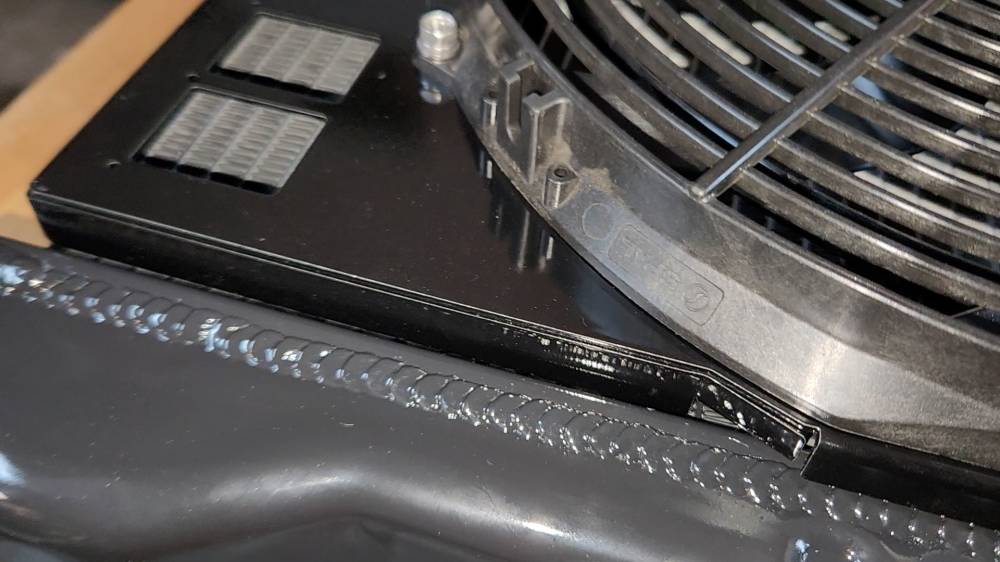

The Raw Aluminum version will have witness marks, as pictured near the bends, most of which can be removed with a Magic Eraser, or scuff the entire surface with Red Scotch Brite for a uniform look. Or course, painting is an option too.

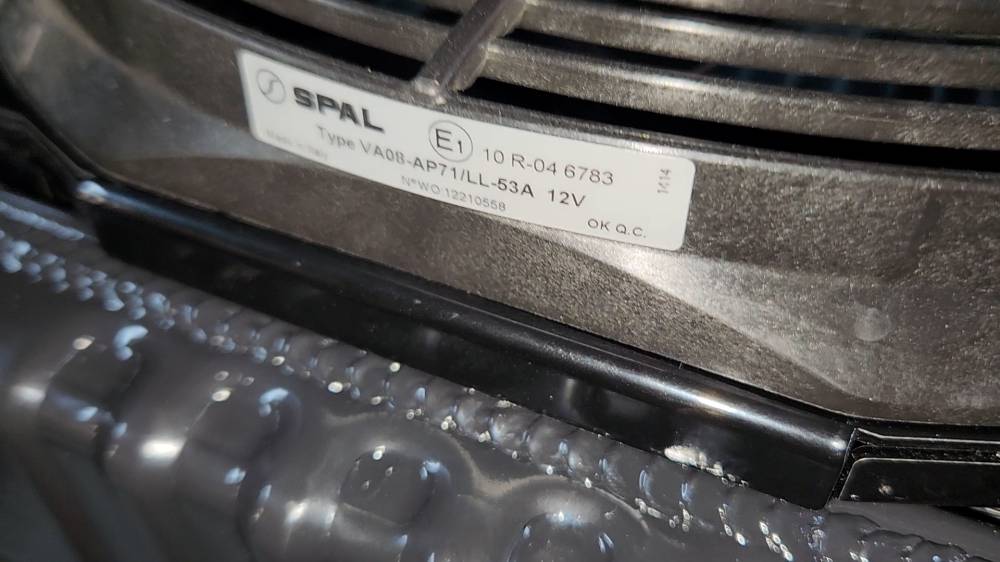

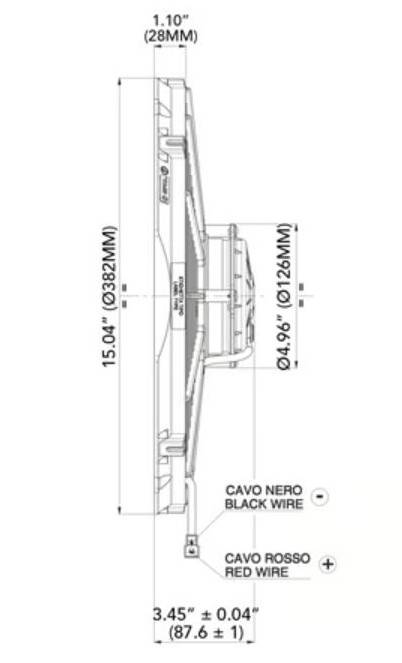

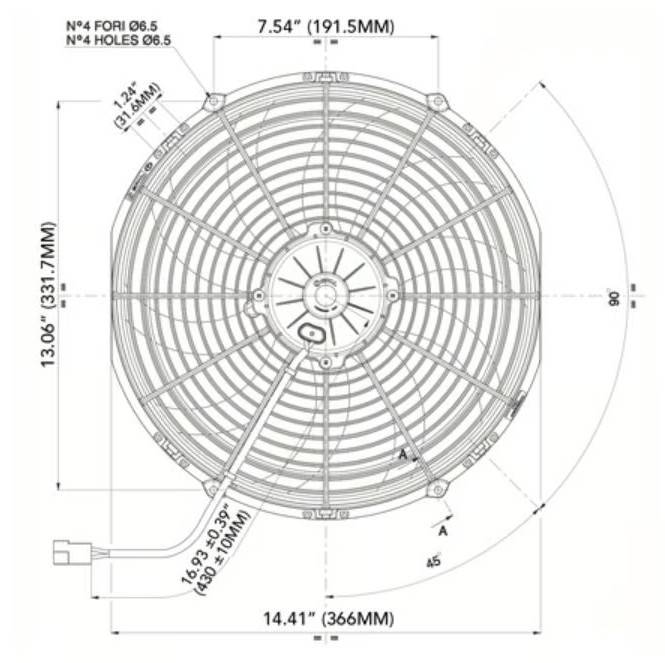

Spal Fan Specs
