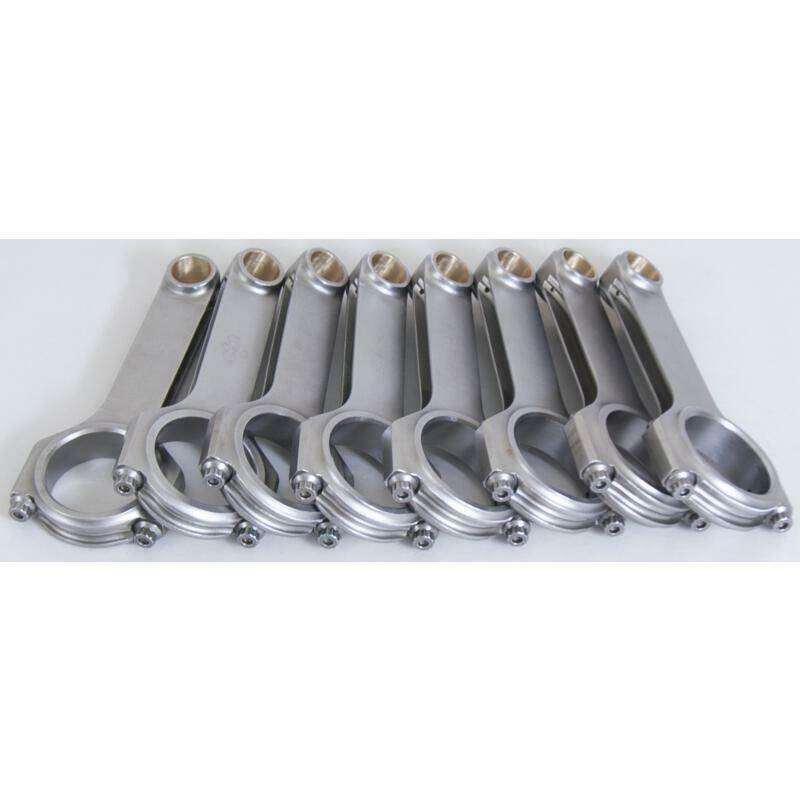

Eagle 4340 Forged H-Beam Rod, 6.635", 2.200" Pontiac RJ, Bushed Set/8
EAG-CRS66353D-8
Bushed #-CRS6625P3D
6.635" Length
ARP8740 or ARP2000 7/16" Bolts
2.200 Pontiac Rod Journal
.990 Pins
Bushed
Set/8
6.635" Length
ARP8740 or ARP2000 7/16" Bolts
2.200 Pontiac Rod Journal
.990 Pins
Bushed
Set/8
Pricing:
$725.99
Description
Important Torque to 63 ft-lbs, ARP moly lube ONLY!
Highlights:
bolts: 7/16" ARP 8740
material: forged 4340 steel
center to center length: 6.635"
pin size: 0.99"
pin end width: 1.125"
rod journal: 2.2"
housing bore: 2.325"
big end width: 0.991"
typical weight: 810g
bushed for full-floating piston pin
Highlights:
bolts: 7/16" ARP 8740
material: forged 4340 steel
center to center length: 6.635"
pin size: 0.99"
pin end width: 1.125"
rod journal: 2.2"
housing bore: 2.325"
big end width: 0.991"
typical weight: 810g
bushed for full-floating piston pin
Compression Calculator
Compression Calculator
Simply fill in the form below to calculate your compression ratio
*BP Flat Top pistons normally include +8cc valve pockets. When selecting dish piston from list, do not add valve pocket cc volume. Valve pocket cc is already included in the dish piston volume*
| Bore: (diameter) | |
| Stroke: | |
| Cylinder Head Volume: | |
| Effective Dome Volume: Use (-) for Dome and (+) for Dish. |
|
| Deck Clearance: | |
| Compressed Gasket Thickness: | |
| Number of Cylinders: | |
| Compression Ratio : | |
| Total Displacement (in.3) : | |
| Total Displacement cc's : | |
|
|
Listed is an example of a 461 cu.in. with a 72cc head.
If deck clearance and head gasket sizes are not known, enter 0 and .040 as shown below.
*Chamber volume cc should be entered as a (+) number for dish and (-) negative for dome*
Details
- EAG-CRS66353D-8
- EAG-CRS66353D-8
- Eagle Specialty
- New
Shipping Information
- Item Requires Shipping
- 16.0 lbs.
