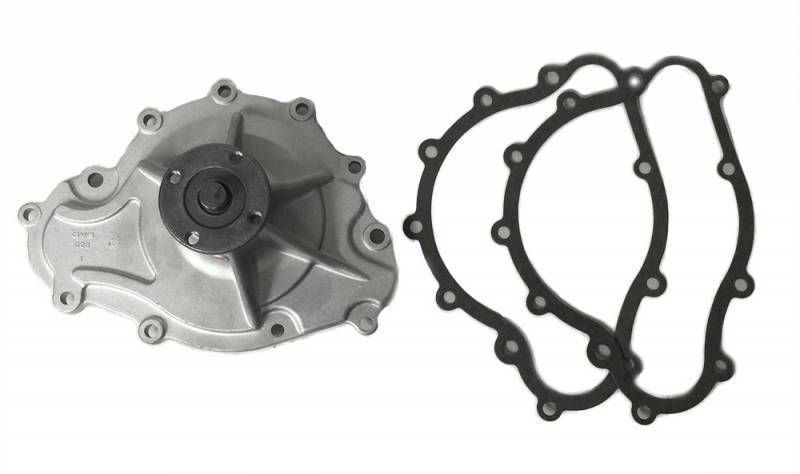

Flowkooler Pontiac 11-Bolt 1969 1/2-79 Hi-Volume Aluminum Water Pump w/ Billet Aluminum Impeller BRW-1649


Pontiac 11-Bolt 1969 1/2-77 Hi-Volume Flowkooler Aluminum Water Pump w/ Billet Aluminum Impeller w/ New Impeller Design

Pricing: $149.95

Customize Your Item

- Choose your divider plate and sl -
 * required

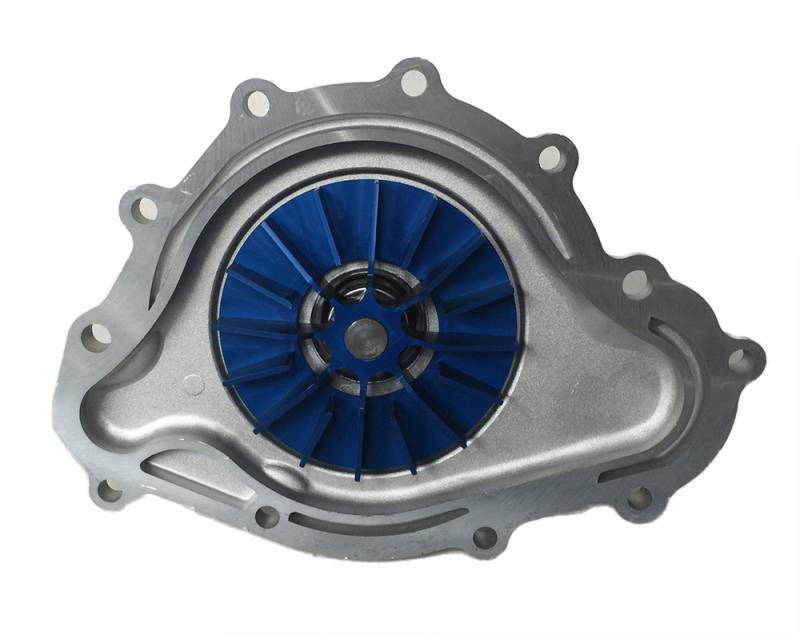

Flowkooler water pump 1649 features 16 precision machined blades, an integrated shroud and a military-grade anodized finish. With the increased vane count we have divided the flow and therefore divided the workload thus improving pump efficiency, conserving valuable horsepower and reducing cavitation.  With a substantial reduction in the impeller-casting clearance, we are able to achieve greater flow rates, higher head pressure and higher system pressure.  Reducing the clearance between the vanes and backing plate helps to increase system pressure and reduce the onset of hot spots on cylinder walls and formation of steam pockets in the water jacket.  Most importantly, by increasing the flow rate at slower speeds and idle, our pump helps knock the temperature down and keep your Goat cool.

From 0-3,300 RPM…Nothing Beats a FlowKooler!


General Specifications:
  Type of Material of Pump Body Aluminum
  Number of Blades on Impeller 16 CNC Aluminum
  Direction of Rotation CW
  Fan Hub Working Height 4 1/2"
  Shaft Diameter 5/8"
  Inlet Outside Diameter N/A
  Hose Connections 1st 2nd
  Gender N/A N/A
  Diameter N/A N/A
  Threaded N/A N/A
Other Special Features:
  • 16 Blade Machined Aluminum Impeller System
  • Impeller is surface coated with Military Grade Type II anodized finish
  • Divider plate sold separately
  • See pump 1647 for casting #9796351 made in 1969
  • May be used with Pontiac V-8 Serpentine Conversion 326, 350, 389, 400, 455 C.I.
Parts Contained in Box:
  • Mounting Gaskets (2)
  • Installation Sheet
  • FlowKooler Decal

Reducing the gap between the backing plate and the impeller

Pontiac owners have reported that (1) heat cycling may result in a distortion the backing plate and (2) coolant degradation may corrode the backing plate necessitating replacement.  Some aftermarket plates may have a deeper dome and incremental cooling gains may be experienced by reducing the backing plate-to-impeller vane clearance. In closing the impeller-to-plate gap pressure is built, efficiency is achieved and more coolant will route to the thermostat and radiator which initiates the engine cooling process.  Please note that inadequate clearance that results in an impeller vane to backing plate interference will cause friction.  Owner modifications to the Pontiac part design are performed at the owner's discretion and FAILURE TO MAINTAIN ADEQUATE CLEARANCE WILL VOID WARRANTY.

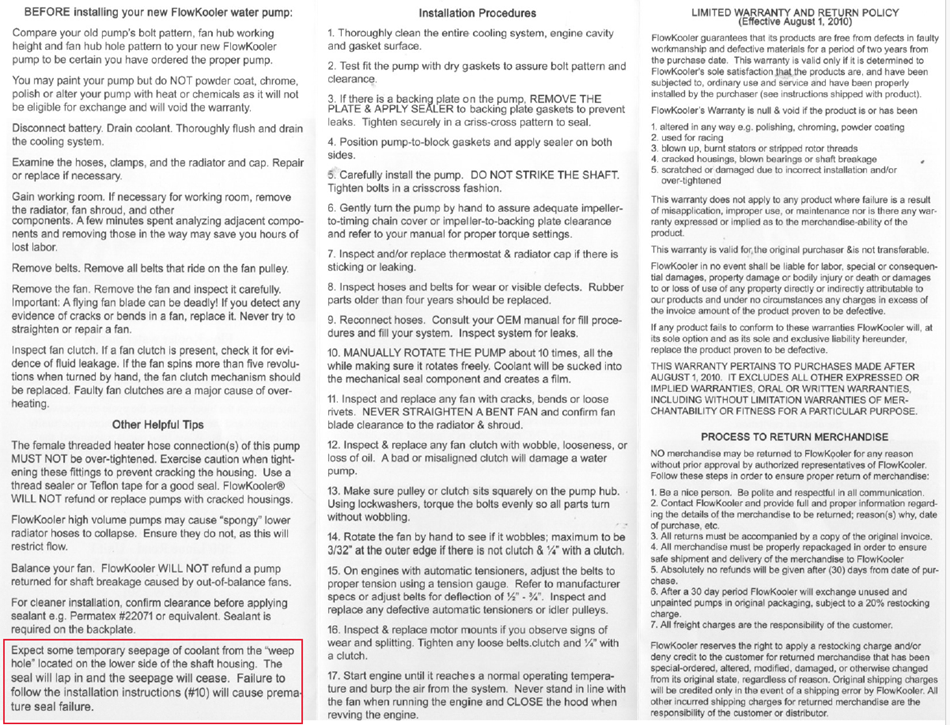

***From Flowkooler-"Expect some temporary seepage of coolant from the "weep hole" located on the lower side of the shaft housing. The seal will lap in and the seepage will cease. Failure to follow the installation instructions (#10) will cause premature seal failure."***


*Note: Do not buy this pump for the 1969 400 with Water Pump casting #9796351.  The 1969 400 pump measures 4" and the correct pump is 1647CI

Shipping Information

  • Item Requires Shipping
  • 8.0 lbs.
